Specifications

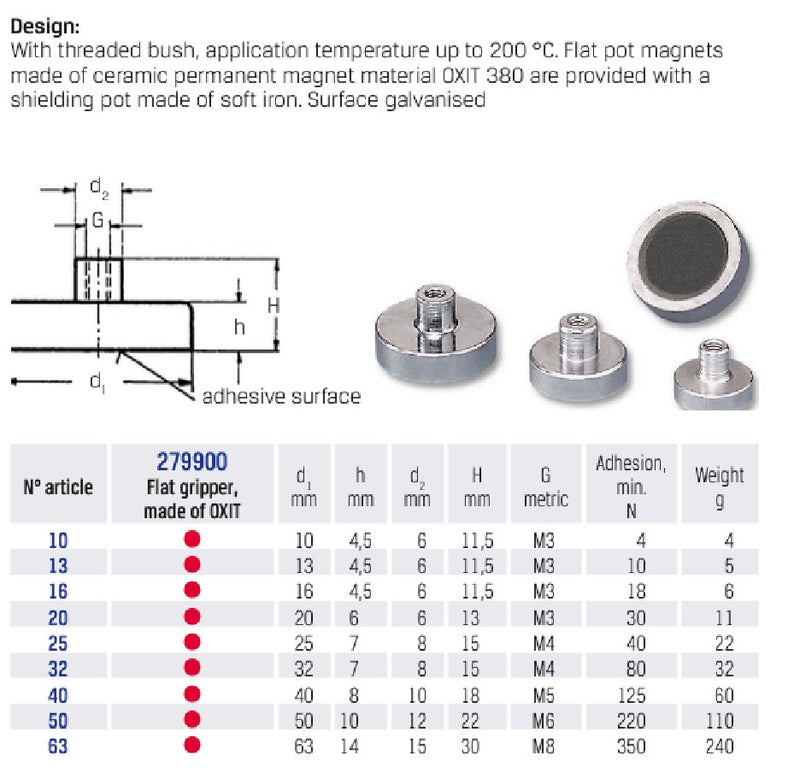

- Type: Flat pot magnet (flat gripper) with threaded bush
- Magnet material: ceramic permanent magnet OXIT 380
- Shielding: shielding pot made of soft iron
- Surface: galvanised
- Application temperature: up to 200 °C

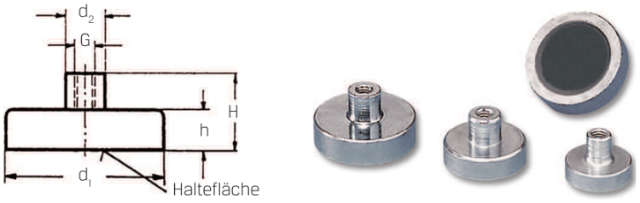

- Dimensions (range across all variants): d1: 10–63 mm, d2: 6–15 mm, h: 4.5–14 mm, H: 11.5–30 mm
- Thread (G, metric): M3 / M4 / M5 / M6 / M8
- Holding force (Adhesion, min.): 4–350 N
- Weight: 4–240 g
Description
Threaded flat pot magnet for fastening or suspending parts on ferromagnetic surfaces. Used for fixtures, mounts, and holding applications where a screw connection is required together with magnetic adhesion, with suitability for use up to 200 °C.
| Code | d1 mm | d2 mm | G metric | Availability | Price excl. VAT | Cart |
|---|---|---|---|---|---|---|
| 279900 10 | 10 | 6 | M3 | On Order |
€2,30
|
|
| 279900 13 | 13 | 6 | M3 | On Order |
€2,60
|
|
| 279900 16 | 16 | 6 | M3 | On Order |
€2,90
|
|
| 279900 20 | 20 | 6 | M3 | On Order |
€3,40
|
|
| 279900 25 | 25 | 8 | M4 | On Order |
€3,70
|
|
| 279900 32 | 32 | 8 | M4 | On Order |
€4,10
|
|
| 279900 40 | 40 | 10 | M5 | On Order |
€5,00
|
|
| 279900 50 | 50 | 12 | M6 | On Order |
€6,20
|
|
| 279900 63 | 63 | 15 | M8 | On Order |
€9,00
|
