Specifications
- Type: Combi shell end mill holder according to DIN 6358
- Machine taper: SK (ISO 7388-1 / DIN 69871)
- Form: AD/AF (AD/B)
- Seat tolerance: h6
- Accuracy/runout: ≤ 5 μm
- Max speed: 15,000 min-1 (G6.3)
- RFID: RFID chip
- Delivery/includes: retaining screw, driving ring, feather key
- Note: supplementary eroding of 2 cooling channel holes available (optional)
Description

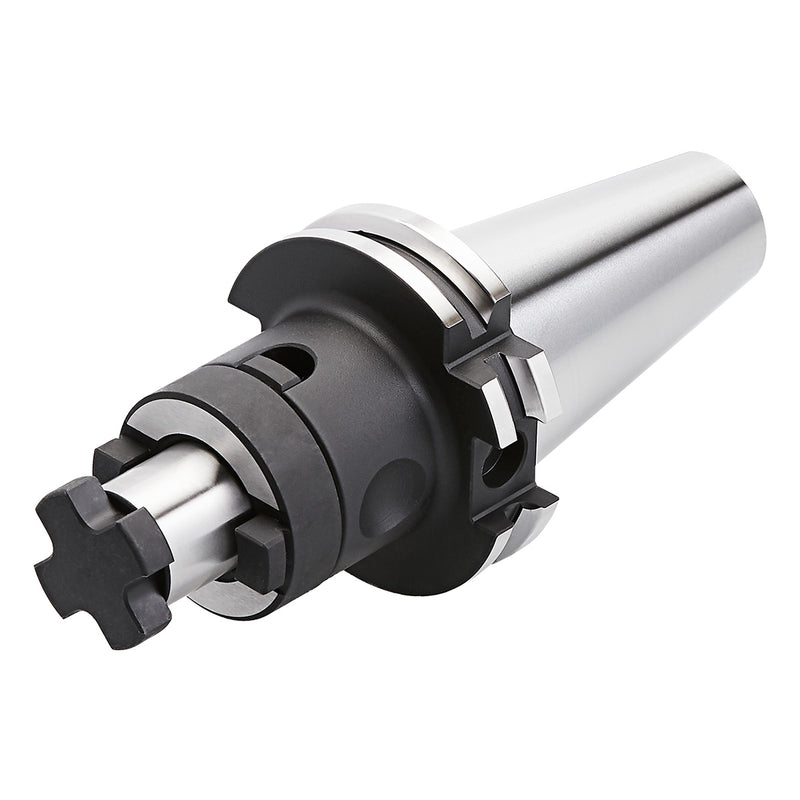

Kemmler SK Combi shell end mill holder for mounting shell end mills, cylindrical/face milling cutters, or cutter heads with longitudinal or transverse groove. It is used on machine tools with SK taper (ISO 7388-1 / DIN 69871) to provide accurate tool location and torque transmission.

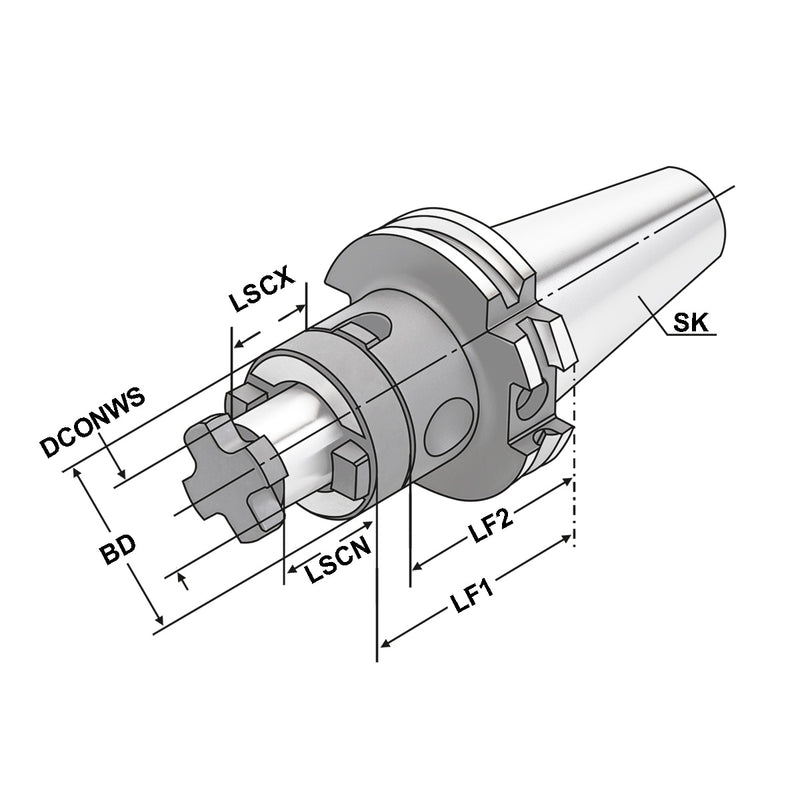

| Code | Taper | DCONWSmm | LF1mm | Availability | Price excl. VAT | Price incl. VAT | Cart |
|---|---|---|---|---|---|---|---|
| KE-302.10.16 | SK 30 | 16 | 50 |
€60,00
|
€74,40
|
||
| KE-302.10.22 | SK 30 | 22 | 50 |
€61,00
|
€75,64
|
||
| KE-302.10.27 | SK 30 | 27 | 55 |
€61,00
|
€75,64
|
||
| KE-302.10.32 | SK 30 | 32 | 60 |
€65,00
|
€80,60
|
||
| KE-403.10.16 | SK 40 | 16 | 55 |
€56,10
|
€69,56
|
||
| KE-403.10.16.1 | SK 40 | 16 | 100 |
€71,00
|
€88,04
|
||
| KE-403.10.16.2 | SK 40 | 16 | 160 |
€106,00
|
€131,44
|
||
| KE-403.10.22 | SK 40 | 22 | 55 |
€57,10
|
€70,80
|
||
| KE-403.10.22.1 | SK 40 | 22 | 100 |
€74,00
|
€91,76
|
||
| KE-403.10.22.2 | SK 40 | 22 | 160 |
€111,00
|
€137,64
|
||
| KE-403.10.27 | SK 40 | 27 | 55 |
€57,10
|
€70,80
|
||
| KE-403.10.27.1 | SK 40 | 27 | 100 |
€75,00
|
€93,00
|
||
| KE-403.10.27.2 | SK 40 | 27 | 160 |
€115,00
|
€142,60
|
||
| KE-403.10.32 | SK 40 | 32 | 60 |
€66,00
|
€81,84
|
||
| KE-403.10.32.1 | SK 40 | 32 | 100 |
€78,00
|
€96,72
|
||
| KE-403.10.32.2 | SK 40 | 32 | 160 |
€119,00
|
€147,56
|
||
| KE-403.10.40 | SK 40 | 40 | 60 |
€74,00
|
€91,76
|
||
| KE-403.10.40.1 | SK 40 | 40 | 100 |
€86,00
|
€106,64
|
||
| KE-403.10.40.2 | SK 40 | 40 | 160 |
€128,00
|
€158,72
|
||
| KE-503.10.16 | SK 50 | 16 | 55 |
€79,00
|
€97,96
|
||
| KE-503.10.16.1 | SK 50 | 16 | 100 |
€91,00
|
€112,84
|
||
| KE-503.10.16.2 | SK 50 | 16 | 160 |
€157,00
|
€194,68
|
||
| KE-503.10.22 | SK 50 | 22 | 55 |
€79,00
|
€97,96
|
||
| KE-503.10.22.1 | SK 50 | 22 | 100 |
€91,00
|
€112,84
|
||
| KE-503.10.22.2 | SK 50 | 22 | 160 |
€161,00
|
€199,64
|
||
| KE-503.10.27 | SK 50 | 27 | 55 |
€80,00
|
€99,20
|
||
| KE-503.10.27.1 | SK 50 | 27 | 100 |
€92,00
|
€114,08
|
||
| KE-503.10.27.2 | SK 50 | 27 | 160 |
€170,00
|
€210,80
|
||
| KE-503.10.32 | SK 50 | 32 | 55 |
€83,00
|
€102,92
|
||
| KE-503.10.32.1 | SK 50 | 32 | 100 |
€94,00
|
€116,56
|
||
| KE-503.10.32.2 | SK 50 | 32 | 160 |
€175,00
|
€217,00
|
||
| KE-503.10.40 | SK 50 | 40 | 55 |
€89,00
|
€110,36
|
||
| KE-503.10.40.1 | SK 50 | 40 | 100 |
€102,00
|
€126,48
|
||
| KE-503.10.40.2 | SK 50 | 40 | 160 |
€188,00
|
€233,12
|
