Crane Scales

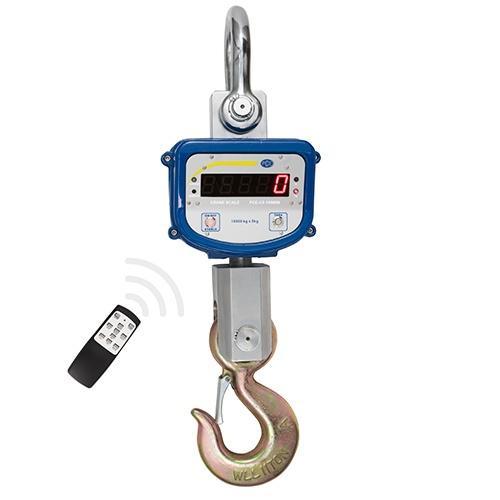

PCE Instruments PCE-CS 10000N 10-tonne crane scale with digital display, suspension hook and remote control
PCE Instruments PCE-CS 10000N crane scale display with red LED reading 10000 and ON/OFF, TARA keys
PCE Instruments PCE-CS 10000N crane scale hanging from a crane, weighing a load with slings in an industrial setting
PCE Instruments PCE-CS 10000N 10-tonne crane scale with digital display, suspension hook and remote control
PCE Instruments PCE-CS 10000N crane scale display with red LED reading 10000 and ON/OFF, TARA keys
PCE Instruments PCE-CS 10000N crane scale hanging from a crane, weighing a load with slings in an industrial setting

Availability & price

Code Capacity Resolution Availability excl. VATincl. VAT Certificate Cart
PCE-CS 10000N 10 t 5 kg
€1.139,00
€1.412,36
0
  • 10000 kg weighing capacity
  • 5 kg resolution
  • Display in kg or lbs
  • Remote control included
  • Factory calibrated
  • Two-year warranty

The PCE-CS 10000N is a digital, battery-powered crane scale for weighing loads suspended from a crane, hoist or lifting gear. It weighs up to 10000 kg (22046 lbs, approx. 10 tons) with 5 kg resolution and shows the reading in kilograms or pounds on a 30 mm LED display.

Functions include zero, tare, hold, sum / accumulation, battery voltage indication and adjustable brightness. Hook, shackle and remote control are supplied. The scale is factory calibrated; ISO calibration is available for an additional fee. Two-year warranty against manufacturer defects.

Highlights

  • Capacity 10000 kg / 22046 lbs ≈ 10 tons
  • Resolution 5 kg
  • Tare range 100 % of full scale
  • Reading in kilograms (kg) or pounds (lbs)
  • 30 mm LED display
  • Zero, tare, hold and sum / accumulation functions
  • Battery voltage indication, adjustable brightness
  • Factory calibrated, optional ISO calibration
Weighing range
Measurement range up to [Max]10000 kg
Resolution [d]5 kg
Accuracy15 kg
General technical data
Measuring functionsHOLD
Measuring functions (additional information)Summing function
Display typeLED
Digit size [WxH]Height: 30 mm
Operating time50 h
Overload protection100 % of the weighing range + 9e
Minimum load [min]100 kg
Tare range100 % of the weighing range
Verification class [e]M III
Settling time≤10 s
Max. overload400 % of weighing range
Menu languageEnglish, English (GB)
Protection class (device)IP20
Power supplyBattery: 6V / 7 Ah
Power supply: 9V DC / 1000 mA
(Rechargeable) battery1 x 6 V internal , Lead gel battery
Capacity4500 mAh
Operating conditions-10 ... 40 °C , 0 ... 85 % RH
Storage conditions-10 ... 40 °C , 0 ... 85 % RH
Dimensions ( L x W x H )745 x 264 x 206 mm
Weight30000 g
  • 1×PCE-CS-10000N Crane Scales with weighing hook, shackle and battery
  • 1×battery charger
  • 1×remote control with batteries
  • 1×user manual
Datasheet Technical datasheet Manual User manual CE Certificate Quality document
PCE Instruments

Official distributor

PCE Instruments

Η PCE Deutschland GmbH , γνωστή ως PCE Instruments , είναι μια γερμανική εταιρεία με έδρα το Meschede, που από το 1999 έως σήμερα έχει καθιερωθεί διεθνώς ως αξιόπιστος κατασκευαστής και προμηθευτής οργάνων μέτρησης, ελέγχου και ζύγισης. Η εταιρεία διαθέτει μια εξαιρετικά πλούσια γκάμα οργάνων – από μετρητές δόνησης, υγρασίας, θορύβου και θερμοκρασίας έως ζυγούς ακριβείας, αναλυτές, αισθητήρες και καταγραφικά δεδομένων – κ αλύπτοντας κάθε ανάγκη στον χώρο της βιομηχανίας, των εργαστηρίων και της έρευνας.

This product belongs to the collection

Crane Scales

You're viewing one product from this category. Browse the full range.

31 products
View all

Related categories

All categories →
Precision Scales35 products Standard Weights17 products Platform Scales12 products Moisture Analyzers13 products Force Gauges59 products
Crane Scales

From our Wiki

Crane Scales

The crane scales are specialized suspension and weighing systems that allow measuring the weight of loads during lifting. They are integrated directly into the hook of the crane or lifting device, offering an efficient dynamic weighing solution that eliminates the need to move goods to fixed platforms.

  • Technology: They use robust load cells with high durability and feature bright LED/LCD displays for reading from a distance.
  • Applications: Ideal for ports, metalworking plants, wholesale warehouses, and construction sites, where load control and lifting safety are required.
  • Features: They include tare functions (Tare), wireless remote control, and high IP protection for operation in outdoor or demanding environments.
Read the guide
