Taps

Tap Chucks

19 products
Filters
Filters
Diameter
Diameter
Manufacturers
Manufacturers
Collet for DIN371 Taps
Vertex
312-01D

Collet for Taps DIN371

From €0,00
€0,00
From €50,90€63,12 without VAT
From €50,90€63,12
€50,90€63,12
Available

Yg TAP-AD tap collet, metal with black knurled clamping ring and cylindrical body
Yg
TAP-AD

Collet for YG-1 Taps

From €0,00
€0,00
From €72,00€89,28 without VAT
From €72,00€89,28
€72,00€89,28
Available

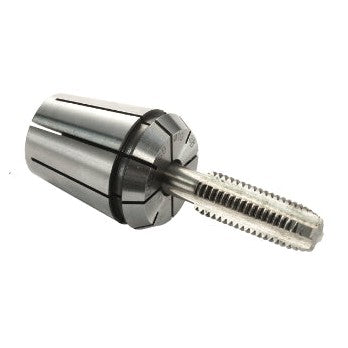

ER Tapping Collets
Vertex
ER-GB

ER Collet with Square Drive for Taps

From €0,00
€0,00
From €21,30€26,41 without VAT
From €21,30€26,41
€21,30€26,41
Available

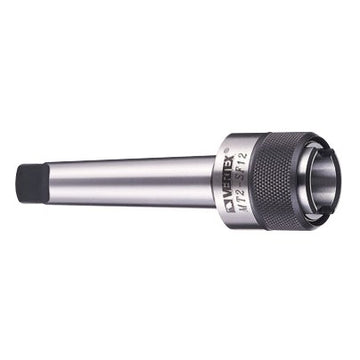

Morse taper holders for tapping collets
Vertex
MT2-SF12

Morse Tapers for Tap Collets

From €0,00
€0,00
From €81,00€100,44 without VAT
From €81,00€100,44
€81,00€100,44
Upon request

Kemmler ER tapping collet with square drive, model ER-5μm TAPS, metal with clamping slots, 15μm runout
Kemmler
ER-5μm TAPS

ER Collet with Square Drive for Tapping by Kemmler, 15μm runout

From €0,00
€0,00
From €31,10€38,56 without VAT
From €31,10€38,56
€31,10€38,56
1 Month

Technical Specifications Type: Collet for taps (Tap collet) with square drive System: ER Standard: ISO 15488 B (DIN 6499 B) Runout: ≤ ...

View full details
Kemmler sealed ER tapping collet with square drive, ER-5μm TAPS 21bar TSC, metal with slots
Kemmler
ER-5μm TAPS 21bar TSC

ER Collet Sealed with Square Drive for Tapping by Kemmler, 15μm runout and 21bar TSC

From €0,00
€0,00
From €40,10€49,72 without VAT
From €40,10€49,72
€40,10€49,72
1 Month

Technical Specifications Type: Collet for taps (tap collet) with sealing (sealed) and square drive System: ER Standard: ISO 15488 Runo...

View full details
Kemmler TC Adaptors quick-change tap adapter, black and silver metal body without safety clutch
Kemmler
TC Adaptors

Kemmler quick change collet adaptors for taps, WITHOUT safety clutch

From €0,00
€0,00
From €16,00€19,84 without VAT
From €16,00€19,84
€16,00€19,84
1 Month

Specifications Type: Quick change adaptor for taps Version: Without safety clutch (no torque limiter) Application: Clamping/mounting taps fo...

View full details
Kemmler TC Adaptors CLUTCH quick-change tap adapter with safety clutch, black and silver metal
Kemmler
TC Adaptors CLUTCH

Quick-Change Collet Adapters by Kemmler for Tapping, WITH Safety Clutch

From €0,00
€0,00
From €35,10€43,52 without VAT
From €35,10€43,52
€35,10€43,52
1 Month

Technical Specifications Type: Quick-change collet adapter for taps with safety clutch Use: Clamping/mounting of taps for right-hand and lef...

View full details
Yg BT-TC BT tapping chuck, silver metal with black body and knurled clamping ring
Yg
BT-TC

BT Taper for Tap (Length Compensation)

From €0,00
€0,00
From €185,00€229,40 without VAT
From €185,00€229,40
€185,00€229,40
5-8 Working days

Specifications Type: Tapping Chuck (Quick Change Type), TC series Taper system: BT (JIS B6339) Function: Length compensation (Compression / ...

View full details
Yg TA-TAP-HSK HSK tap holder with length compensation, metal body and black cylindrical section
Yg
TA-TAP-HSK

HSK Taper for Taps (Length Compensation)

From €0,00
€0,00
From €317,00€393,08 without VAT
From €317,00€393,08
€317,00€393,08
5-8 Working days

YG BT-SYTER BT synchro tapping chuck with ER collet, metal with blue ring and black nut
Yg
BT-SYTER

BT Taper for Z Compensation for Taps with ER Collet (SYNCHRO TAPPING CHUCK)

From €0,00
€0,00
From €253,00€313,72 without VAT
From €253,00€313,72
€253,00€313,72
5-8 Working days

Specifications Type: SYNCHRO TAPPING CHUCK (ER Type) Taper: BT (JIS B6339) Clamping system: ER collet (Nut/Collet: ER16 / ER20 / ER25 / ER32...

View full details
YG SK-SYTER synchro tapping chuck, silver body with blue ring and black ER collet nut
Yg
SK-SYTER

SK taper, for Z error correction in taps (SYNCHRO TAPPING CHUCK ER)

From €0,00
€0,00
From €253,00€313,72 without VAT
From €253,00€313,72
€253,00€313,72
5-8 Working days

Specifications Type: SYNCHRO TAPPING CHUCK (ER Type) – SYTER Taper: SK (DIN 69871) Compensation function: synchronization/compensation to ex...

View full details
YG SK-SYTC SK holder for TC taps, metal with black quick-change body and locating flange
Yg
SK-SYTC

SK taper, for Z error correction in taps (SYNCHRO TAPPING CHUCK TC)

From €0,00
€0,00
From €200,00€248,00 without VAT
From €200,00€248,00
€200,00€248,00
5-8 Working days

Specifications Type: SYNCHRO TAPPING CHUCK (Quick Change Type) Taper standard: DIN 69871-SK Tap size: M3–M12 Tap adaptor: TCS12 d1: 19 m...

View full details
Kemmler BT-SYTER BT synchro tapping chuck with ER collet, silver body and blue Z micro-compensation ring 0.5mm
Kemmler
BT-SYTER (Kemmler)

BT Taper with Z Micro-Compensation (0.5mm) for Tapping with ER Collet (SYNCHRO TAPPING CHUCK Kemmler)

From €0,00
€0,00
From €293,00€363,32 without VAT
From €293,00€363,32
€293,00€363,32
1 Month

Technical Specifications Type: SYNCHRO tapping chuck (synchronous tapping chuck) for ER system collets Standards: DIN 6499 / ISO 15488 (ER c...

View full details
Kemmler SK-SYTER synchro tapping chuck with ER collet, silver body and blue 0.5mm Z micro-compensation ring
Kemmler
SK-SYTER (Kemmler)

SK Taper with Z Micro-Compensation (0.5mm) in tapping chuck with ER collet (SYNCHRO TAPPING CHUCK Kemmler)

From €0,00
€0,00
From €293,00€363,32 without VAT
From €293,00€363,32
€293,00€363,32
1 Month

Specifications Type: SYNCHRO TAPPING CHUCK for ER system Taper: SK (per ISO 7388-1 / DIN 69871) Clamping system: ER collet to DIN 6499 (ISO ...

View full details
Kemmler BT-SYLTC BT toolholder for taps with TC quick-change adapter, silver metal with flange and clamping bore
Kemmler
BT-SYLTC

BT Taper with Z Compensation for Tapping with TC Quick-Change (SYNCHRO TAPPING CHUCK Kemmler)

From €0,00
€0,00
From €198,00€245,52 without VAT
From €198,00€245,52
€198,00€245,52
1 Month

Technical Specifications Type: Quick change tapping chuck for taps with length compensation in compression and tension Standard: ISO 7388-2 ...

View full details
Kemmler SK-SYLTC SK toolholder with TC quick-change adapter, silver metal with black flange and tap holder
Kemmler
SK-SYLTC (Kemmler)

SK Taper with Z Compensation for Tap Collet with Quick Coupling TC (SYNCHRO TAPPING CHUCK Kemmler)

From €0,00
€0,00
From €198,00€245,52 without VAT
From €198,00€245,52
€198,00€245,52
1 Month

Specifications Type: Quick change tapping chuck with length compensation in compression and expansion Taper: SK (DIN 69871) Standard: ISO 73...

View full details
Kemmler BT-SYTC BT toolholder without compensation for TC tapping chuck, metal with black ring and knurled collar
Kemmler
BT-SYTC (Kemmler)

BT Taper WITHOUT Compensation for Tapping with TC Quick-Change (TAPPING CHUCK Kemmler)

From €0,00
€0,00
From €150,00€186,00 without VAT
From €150,00€186,00
€150,00€186,00
1 Month

Technical Specifications Type: BT taper for TC quick change tapping chuck (tapping chuck) without length compensation in compression and tensio...

View full details
Kemmler SK-SYTC SK toolholder for TC quick-change adapters, without Z compensation, metal with black body and knurled ring
Kemmler
SK-SYTC (Kemmler)

SK Taper WITHOUT Z Compensation for TC Quick-Change Coupling (SYNCHRO TAPPING CHUCK Kemmler)

From €0,00
€0,00
From €150,00€186,00 without VAT
From €150,00€186,00
€150,00€186,00
1 Month

Specifications Type: Quick-change chuck/holder for SYNCHRO TAPPING CHUCK (TC) Length compensation (Z): Without length compensation in compress...

View full details

Tap chucks hold the tap in the machine and transmit torque through its square drive, so the thread is cut in line with the hole. Proper clamping and axial compensation reduce the forces on the thread flanks, improve thread quality and protect the tap from breakage.

This collection covers tap holding systems from Kemmler, YG-1 and Vertex:

  • Synchro tapping chucks with ER collets (BT and SK) with minimal Z-axis compensation (Kemmler: 0.5 mm), for CNC machining centres with synchronised (rigid) tapping — ER16 to ER40, taps M2–M33.
  • Holders with TC quick-change coupling (BT, SK and HSK), with or without length compensation, sizes 19 / 31 / 48 for taps M3–M36.
  • Morse taper MT2–MT4 holders (Vertex) for TC-312, TC-820 and TC-1433 tap collets, M2–M36.
  • ER tap collets with square drive (Vertex, and Kemmler with 15 μm runout, plus a Sealed version for through-coolant up to 21 bar), ER16–ER40.
  • Quick-change tap adaptors (tap collets) for DIN371 and DIN376 shanks, with or without safety clutch.

How to choose

  1. Machine interface: BT, SK or HSK for CNC machining centres and mills, Morse taper for pillar drills and conventional machines.
  2. Tapping method: on a CNC with a synchronised spindle a synchro chuck with micro-compensation is enough; machines without synchronisation need a chuck with length (tension/compression) compensation.
  3. Tap shank: choose the collet or adaptor whose shank diameter and square match your tap (DIN371 or DIN376). A safety clutch slips under excessive torque and protects small taps.

Manufacturers

VertexYgKemmler
