CODEPCE-910
CODEPCE-910
Digital Differential Pressure Gauge ±2bar
- Range ± 1 to 2000 mbar
- 10 selectable measurement units
- Dust-proof, splash-resistant housing
- RS-232 data output
- Min, max and hold
Availability & price
| Code | Range | Reading | Accuracy | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|---|
| PCE-910 | ±2 bar | 5 mbar | ± 2% Full Scale |
€344,00
|
€426,56
|
- Range ± 1 to 2000 mbar
- 10 selectable measurement units
- Dust-proof, splash-resistant housing
- RS-232 data output
- Min, max and hold
The PCE-910 is a portable handheld digital differential pressure meter (manometer) with a measuring range of ± 1 to 2000 mbar (± 0.01 to 29.00 psi). It measures air, gas and non-corrosive liquid pressures in pneumatic, compressor and pump installations, valves, tanks and HVAC systems. The dust-proof, splash-resistant housing allows use under adverse conditions.

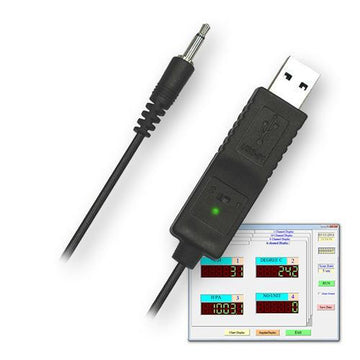

Readings are shown on a 15 mm / 0.6" LCD, with min, max and data hold functions. Optional PC software with RS-232 cable (sold separately) transfers readings to a computer for evaluating, documenting and storing pressure fluctuations. An RS-232 to USB adapter is available for computers without an RS-232 port.
Highlights
- Range ± 1 to 2000 mbar / ± 0.01 to 29.00 psi
- 10 units: psi, mbar, inH2O, mH2O, inHg, mmHg, Torr, Pa / kPa, atm, kg/cm²
- For air, gas and non-corrosive liquids
- Min, max and data hold functions
- RS-232 port / interface
- 15 mm / 0.6" LCD screen
- Dust-proof, splash-resistant housing
- Optional PC software with RS-232 cable, sold separately
| mbar | Resolution: 1 Range: ± 2000 |
|---|---|
| psi | Resolution: 0.01 Range: ± 29.00 |
| inH2O | Resolution: 0.5 Range: ± 802.0 |
| mH2O | Resolution: 0.01 Range: ± 20.40 |
| inHg | Resolution: 0.02 Range: ± 59.00 |
| mmHg | Resolution: 1 Range: ± 1500 |
| Torr | Resolution: - Range: - |
| Pa / kPa | Resolution: - Range: - |
| atm | Resolution: 0.001 Range: ± 1.974 |
| kg/cm² | Resolution: 0.001 Range: ± 2.040 |
| Accuracy | ± 2% (full range) |
| Reproducibility | ± 1% |
| Response time | 0.8 second |
| Interface | RS-232 port |
| Power supply | 1 x 9 V block battery |
| Housing material | Plastic |
| Housing dimensions | Approx. 180 x 72 x 32 mm / 7.09 x 2.84 x 1.26" |
| Weight | Approx. 210 g / 0.47 lb |
| Warning: | ***Exceeding the maximum pressure range will destroy the sensor*** |
- 1×PCE-910 differential pressure meter
- 1×9 V block battery
- 2×stainless steel tube adapters
- 1×1 m / 3' long silicon tube
- 1×user manual
