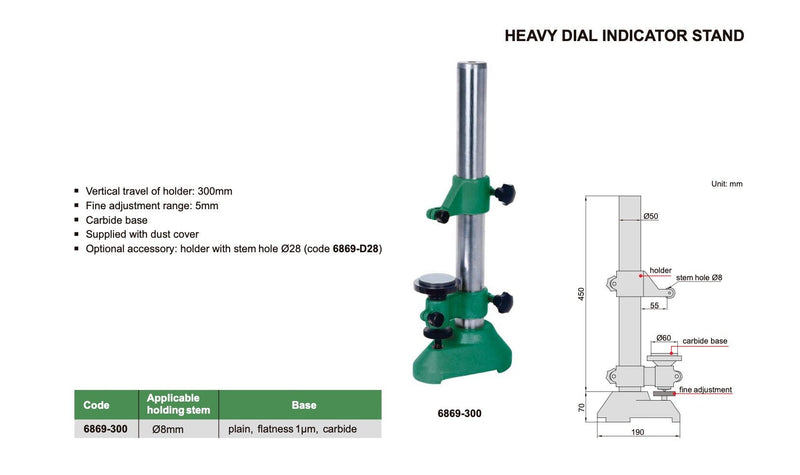

Technical Specifications
-
Vertical travel: 300 mm
-
Stem socket: Ø8 mm
-
Foot: Smooth, carbide, flatness 1 μm
-
Micrometer: Available, range 5 mm
-
Total height: 450 mm
-
Foot diameter: Ø60 mm
-
Includes dust protection cover
-
Optional accessory: Holder with Ø28 mm socket (code 6869-D28)
Description

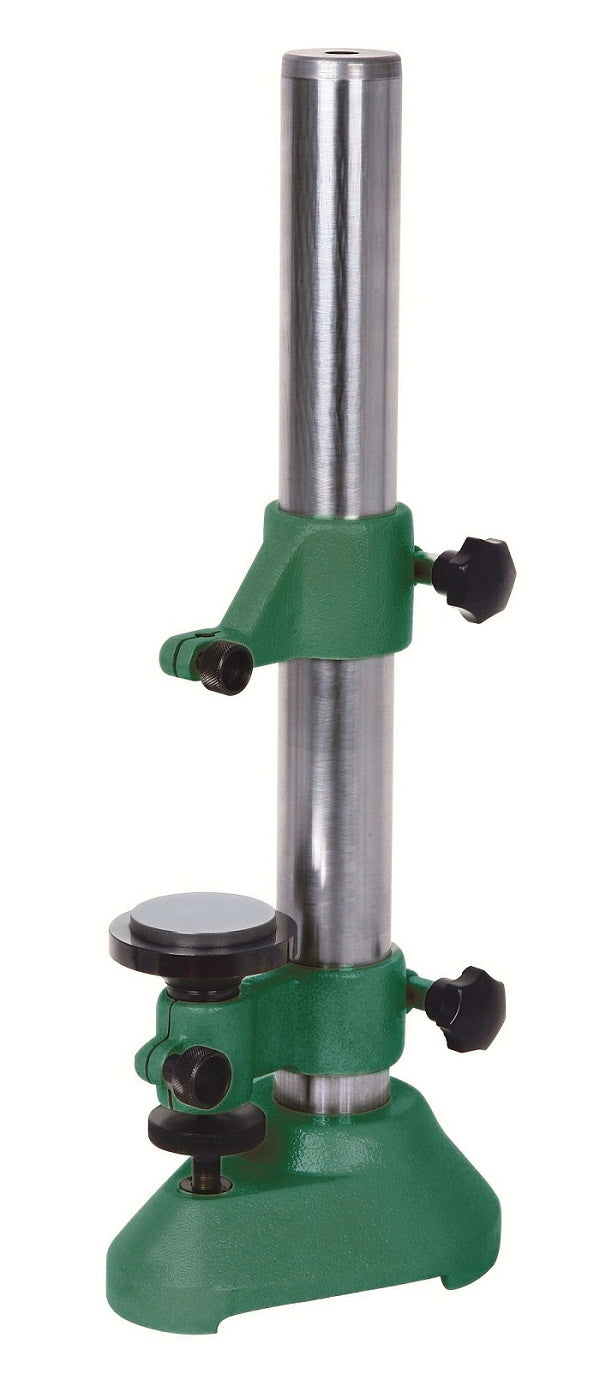

The heavy-duty base 6869-300 is designed for precise measurements with high stability. It features a carbide foot for increased durability and flatness, as well as a micrometer for fine height adjustment. It is suitable for a Ø8 mm stem and also supports optional use of a Ø28 mm stem with a special socket.
2 Years Warranty
INSIZE Factory
INSIZE was founded in 1995 and is one of the world’s leading manufacturers of measuring instruments and metrology equipment.
With factories in China and other countries in Asia, as well as production facilities in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability, and reliability, while being distinguished by an excellent quality-to-price ratio.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of INSIZE in Greece since 2007. We have more than 1,500 INSIZE product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the Insize catalog which includes more than 40,000 different product codes.
In our store we provide technical support for all INSIZE products through trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
INSIZE Products
INSIZE offers a complete range of measuring instruments for industrial, machining and laboratory use, such as:
- Calipers and Micrometers
- Dial Indicators and Depth Gauges
- Bore Gauges, Telescopic Gauges, Vernier Height Gauges, as well as Measuring Rules
- Precision Levels, Squares, and Straightedges
- Surface Plates, Height Gauges, and Johansson Gauge Blocks
- Thread, Hole, and Shaft Gauges
- Hardness Testers, Roughness Testers, Ultrasonic Thickness Gauges and Coating Thickness Gauges
- Dynamometers, Tachometers, and Endoscopes
- CMM measuring systems, Profile Projectors, as well as Microscopes
All of its products meet European specifications, following various international quality and safety standards.
| SKU | Diameter ∅(mm) | Base Material | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|
| 6869-300 | 300 | Carbide (smooth) | 5-8 business days |
+VAT
€1.610,00
|
