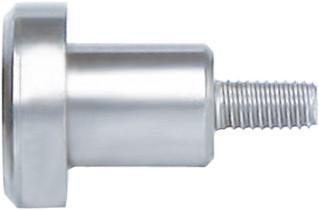

Flat Tips for Dial Test Indicator
Best Seller
- Type: Flat points for dial indicator
- Connection thread: M2.5×0.45
- Measuring face material: steel or carbide (depending on code)

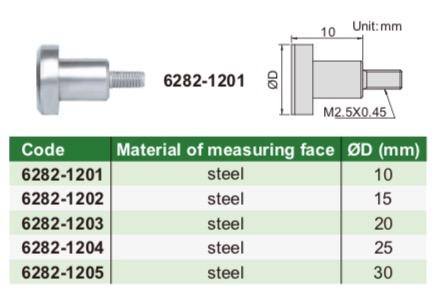

- Dimensions: ØD and L in mm (depending on code)
- Dimension unit: mm
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
Availability & price
5 codes
| Code | Diameter | Availability | excl. VAT | incl. VAT | Cart |
|---|---|---|---|---|---|
| 6282-1201 | 10 mm |
€14,00
|
€17,36
|
||
| 6282-1202 | 15 mm |
€21,80
|
€27,03
|
||
| 6282-1203 | 20 mm |
€22,40
|
€27,78
|
||
| 6282-1204 | 25 mm |
€24,50
|
€30,38
|
||
| 6282-1205 | 30 mm |
€25,70
|
€31,87
|
Specifications
- Type: Flat points for dial indicator
- Connection thread: M2.5×0.45
- Measuring face material: steel or carbide (depending on code)
- Dimensions: ØD and L in mm (depending on code)
- Dimension unit: mm
Description
Flat points for a dial indicator are interchangeable contact tips that screw onto the instrument stem (M2.5×0.45 thread) and are used for contact measurements on flat or gently curved surfaces. They allow the dial indicator to be adapted to the application by selecting the appropriate diameter/length and measuring face material (e.g., steel or carbide) according to the workpiece and use conditions.
Official distributor
Insize
