Gloss Meters - Gloss Meters

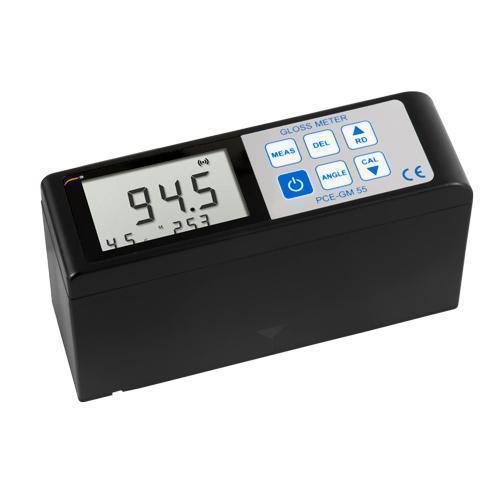

PCE Instruments PCE-GM 55 gloss meter, black portable unit with LCD display and function buttons

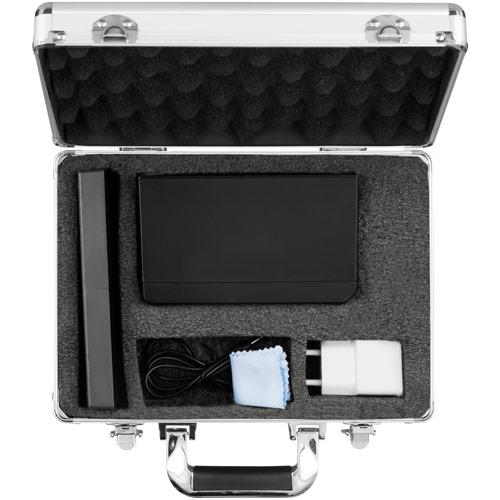

Carrying case with foam insert and accessories for PCE Instruments PCE-GM 55 gloss meter

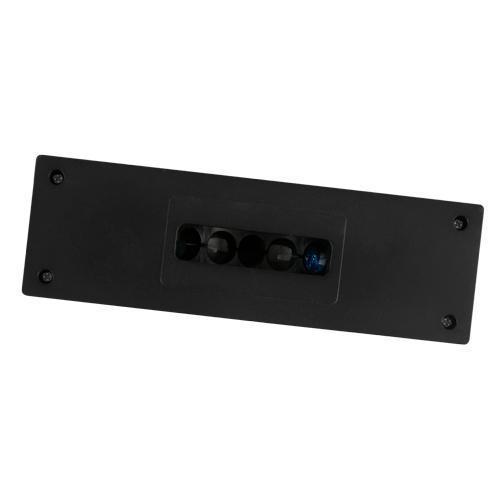

Black calibration plate for PCE Instruments PCE-GM 55 gloss meter, with optical window and corner screws

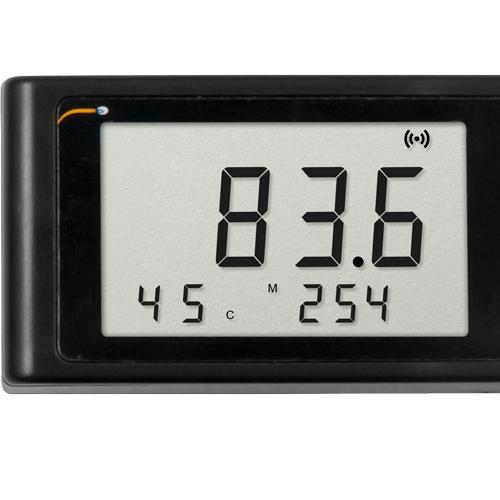

LCD display of PCE Instruments PCE-GM 55 gloss meter showing 83.6 GU at 45° angle

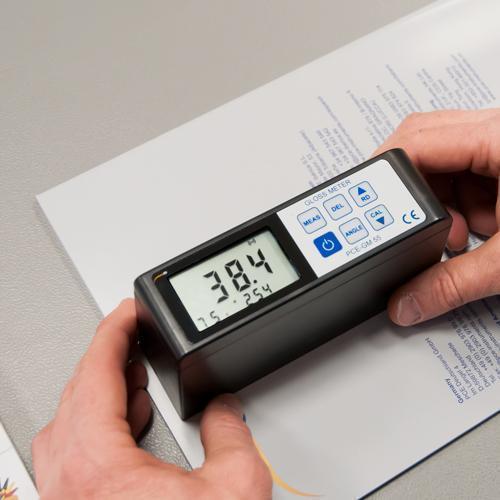

PCE Instruments PCE-GM 55 gloss meter in use on paper, with LCD display and measure/calibration buttons
PCE Instruments PCE-GM 55 gloss meter, black portable unit with LCD display and function buttons
Carrying case with foam insert and accessories for PCE Instruments PCE-GM 55 gloss meter
Black calibration plate for PCE Instruments PCE-GM 55 gloss meter, with optical window and corner screws
LCD display of PCE Instruments PCE-GM 55 gloss meter showing 83.6 GU at 45° angle
PCE Instruments PCE-GM 55 gloss meter in use on paper, with LCD display and measure/calibration buttons

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-GM 55
€1.084,00
€1.344,16
0
  • Three measuring angles
  • Range up to 200 GU
  • Medium and high gloss
  • Suits paper and textiles
  • PC interface and software
  • Li-ion battery

The PCE-GM 55 is a 3-angle gloss meter with measuring angles of 20°, 45° and 75°, covering the medium and high gloss ranges. The 75° angle also allows gloss measurement on paper and textiles. The measuring range is 0 ... 200 gloss units. The meter is based on the ASTM, DIN and EN ISO standards.

Gloss is measured from the light reflected by the surface. The value is measured continuously and shown on the LC display. Measured values can be transferred to a PC via the integrated interface. Power comes from a Li-ion battery, charged from a 5V power supply.

Highlights

  • 20°, 45° and 75° measuring angles
  • Measuring range 0 ... 200 GU
  • 75° angle for paper and textiles
  • Continuous reading on LC display
  • RS232 interface and software
  • Internal memory for 254 values
  • Li-ion battery, 5V charging
  • Based on ASTM, DIN, EN ISO
Gloss
Measuring range0 ... 200 GU
Resolution0,1 GU
Accuracy±1 gloss units (on reference standard)
General technical data
Repeat accuracy±0.5 gloss units (0 ... 99.9 GE)
Display typeLCD
Display size2,2 Inch
Storage mediumInternal memory
Storage capacity254 Values
InterfaceRS232
Measuring surface additional information7 x 14 mm (elliptical)
Measuring geometry20°, 45°, 75°
Protection class (device)IP20
Power supply100 ... 240V AC | 50 ... 60 Hz
Connector typeDevice-europlug
(Rechargeable) battery1 x 3,7 V ZY523450 , Lithium-ion battery
Capacity1000 mAh
Operating conditions0 ... 40 °C , 0 ... 85 % RH
Storage conditions0 ... 40 °C , 0 ... 85 % RH
Dimensions ( L x W x H )140 x 45 x 75 mm
Weight305 g
  • 1×Glossmeter PCE-GM 55
  • 1×Reference standard
  • 1×Cleaning cloth
  • 1×Carrying case
  • 1×User manual
Datasheet Technical datasheet Manual User manual
PCE Instruments

Official distributor

PCE Instruments

Η PCE Deutschland GmbH , γνωστή ως PCE Instruments , είναι μια γερμανική εταιρεία με έδρα το Meschede, που από το 1999 έως σήμερα έχει καθιερωθεί διεθνώς ως αξιόπιστος κατασκευαστής και προμηθευτής οργάνων μέτρησης, ελέγχου και ζύγισης. Η εταιρεία διαθέτει μια εξαιρετικά πλούσια γκάμα οργάνων – από μετρητές δόνησης, υγρασίας, θορύβου και θερμοκρασίας έως ζυγούς ακριβείας, αναλυτές, αισθητήρες και καταγραφικά δεδομένων – κ αλύπτοντας κάθε ανάγκη στον χώρο της βιομηχανίας, των εργαστηρίων και της έρευνας.

This product belongs to the collection

Gloss Meters - Gloss Meters

You're viewing one product from this category. Browse the full range.

9 products
View all

Related categories

All categories →
Chemical Technology Heating Mantles7 products Magnetic Stirrers5 products Refractometers25 products Colorimeters16 products
Gloss Meter

From our Wiki

Gloss Meter

Gloss meters (gloss meters) are precision instruments used to measure the optical gloss of a surface. Their operation is based on directing a beam of light at a specific angle and measuring the amount of reflected light, accurately determining how “glossy” or “matte” a surface appears.

  • Measurement Angles: They feature standardized angles 20° (high gloss), 60° (medium) and 85° (matte), according to the ISO 2813 standard.
  • Applications: They are used in the paints, plastics, automotive, and furniture industries to ensure finish uniformity.
  • Features: They provide measurements in gloss units (GU), include internal memory, and offer automatic calibration via a standard tile.
Read the guide
