60° Gloss Meter 200GU (marble, plastic)
Best Seller
USB
- 0 ... 200 GU range
- 60° measuring geometry
- 0.5 s measuring time
- Accuracy ±1.5 GU
- 3.5" TFT display
- Portable, battery powered
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
Calibrationupon request
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|
| PCE-GM 60Plus |
€494,00
|
€612,56
|
- 0 ... 200 GU range
- 60° measuring geometry
- 0.5 s measuring time
- Accuracy ±1.5 GU
- 3.5" TFT display
- Portable, battery powered

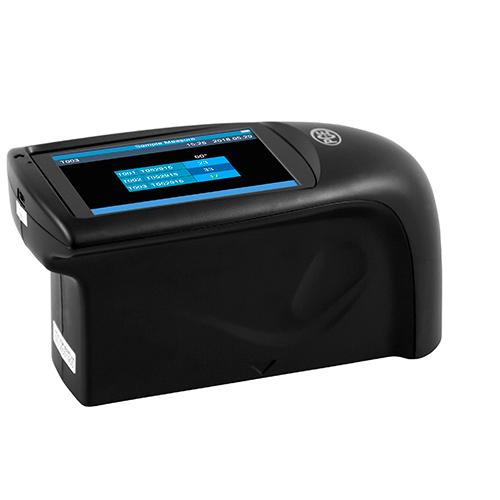

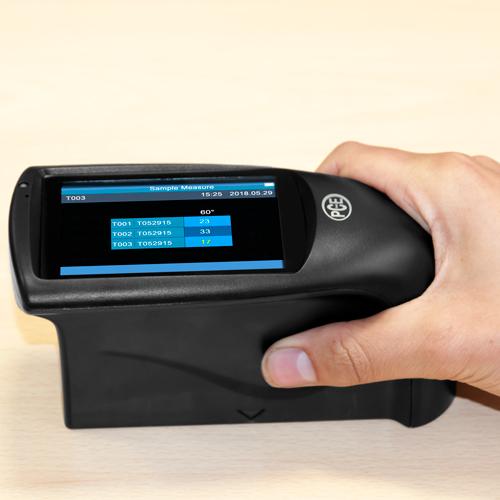

The PCE-GM 60Plus is a portable gloss meter for determining gloss on different materials. It emits light onto the surface, picks up the reflected light and shows the gloss value on the 3.5" TFT touchscreen. The range is 0 ... 200 GU with ±1.5 GU accuracy and a measuring time of 0.5 seconds.

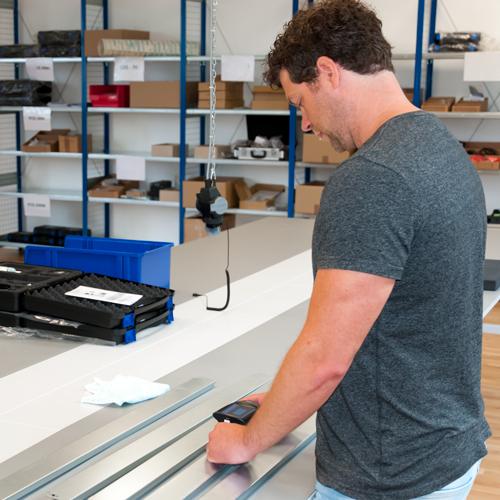

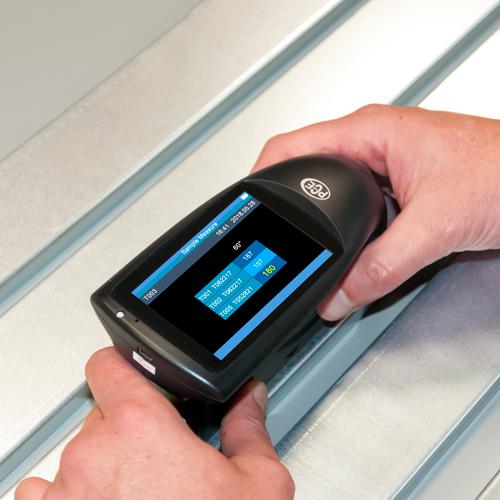

It is used for quality control where products must always have the same appearance, texture and properties. Measurement follows ISO 2813, GB/T 9754, ASTM D 523 and ASTM D 2457 with a 60° geometry. Readings are transferred over Mini-USB or RS232, and the internal Li-ion battery allows on-site use.
Highlights
- 60° measuring geometry, 0 ... 200 GU range
- Accuracy ±1.5 GU, repeatability 1 GU
- Fast 0.5 second measuring time

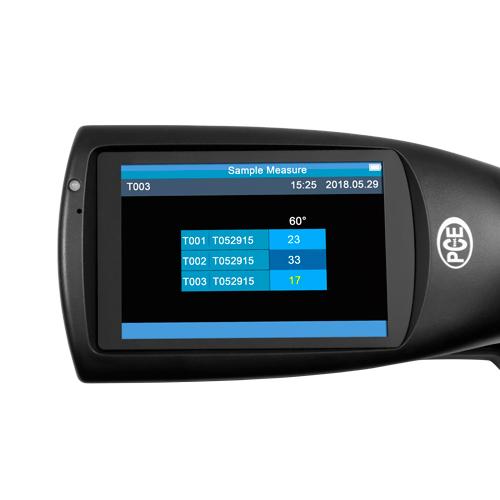

- 3.5" TFT touchscreen display
- Self-calibration with the included calibration plate
- To ISO 2813, GB/T 9754, ASTM D523, ASTM D2457
- Light source D65, wave length 400-700 nm
- Built-in rechargeable battery, Mini-USB and RS232
| Gloss | |
|---|---|
| Measuring range | 0 ... 200 GU |
| Resolution | 1 GU |
| Accuracy | ±1.5 GU / ±1.5 % |
| General technical data | |
| Display type | TFT colour display |
| Display size | 3,5 Inch |
| Interface | Mini-USB, RS232 |
| Standard(s) | ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring surface additional information | 9 x 15 mm |
| Repeatability | 1 GU |
| Measurement time | 0,5 s |
| Reproducibility | ±1 GU |
| Measuring geometry | 60° |
| Chromaticity | corresponds to CIE 1931(2 °) under a CIE C light source |
| Readability | 1 GU |
| Menu language | English, Chinese, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 100 ... 240V AC | 50 ... 60 Hz |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion battery |
| Capacity | 3200 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Storage conditions | -20 ... 50 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 160 x 75 x 90 mm |
| Weight | 350 g |

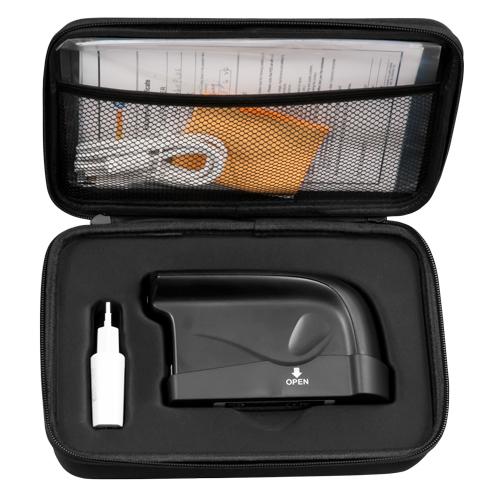

- 1×PCE-GM 60Plus Gloss Meter / Gloss Tester
- 1×Mains power adapter
- 1×USB cable

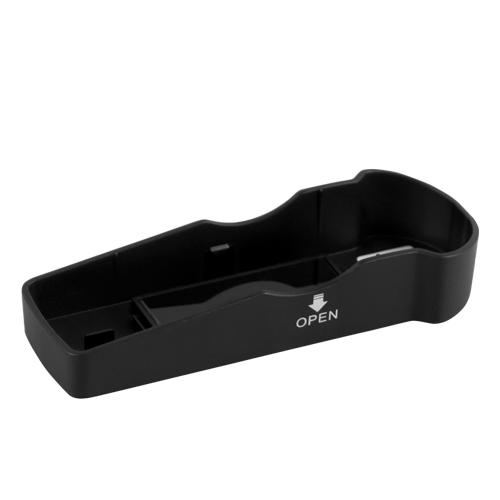

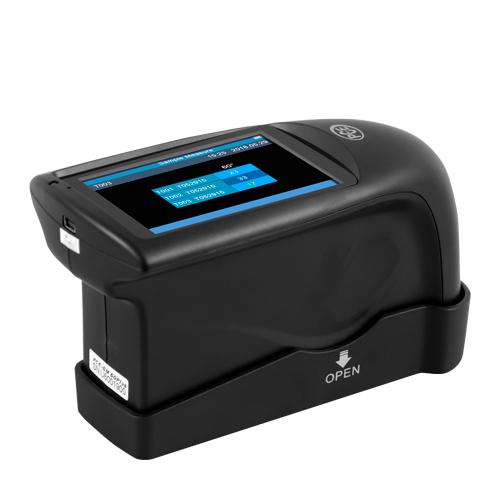

- 1×Calibration plate
- 1×User manual
