Hygrometer - Dew Point for compressed air networks
USBDew Point
- Sintered cap against moisture and dust
- Data readable on any computer
- Memory for approx. 50,000 readings
- Files in CSV format

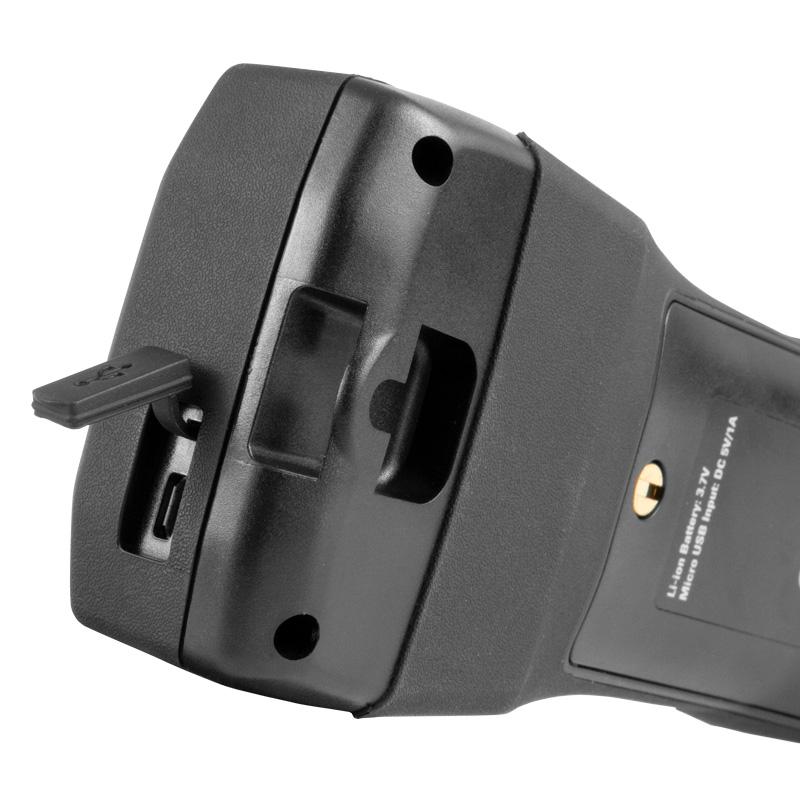

- Battery rechargeable via micro-USB
- Easy operation
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
ISO 17025 calibrationupon request
Availability & price
| Code | Temperature Accuracy (°C) | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|
| PCE-DPM 3 | 0.3 |
€1.233,00
|
€1.528,92
|
Description
- Sintered cap against moisture and dust
- Data readable on any computer
- Memory for approx. 50,000 readings
- Files in CSV format
- Battery rechargeable via micro-USB
- Easy operation

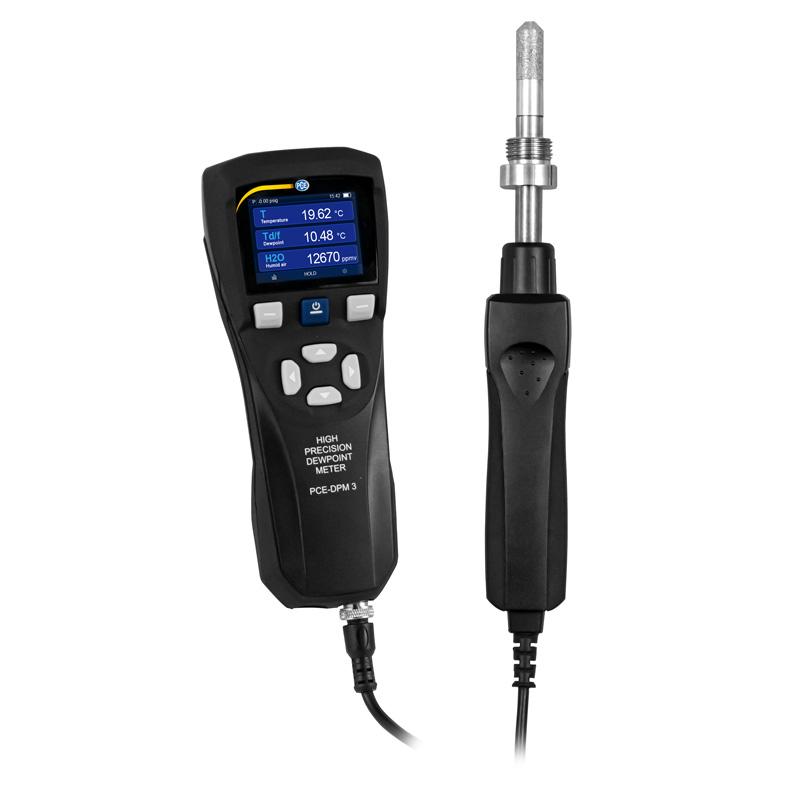

The PCE-DPM 3 is a portable hygrometer for checking compressed air quality on stationary and mobile compressed air generators. It measures temperature, relative humidity and H2O. It also calculates the current dew point at pressures up to 20 bar. A sintered cap protects the sensors in the pressure line from dirt, moisture and high flow speeds. This extends sensor service life.

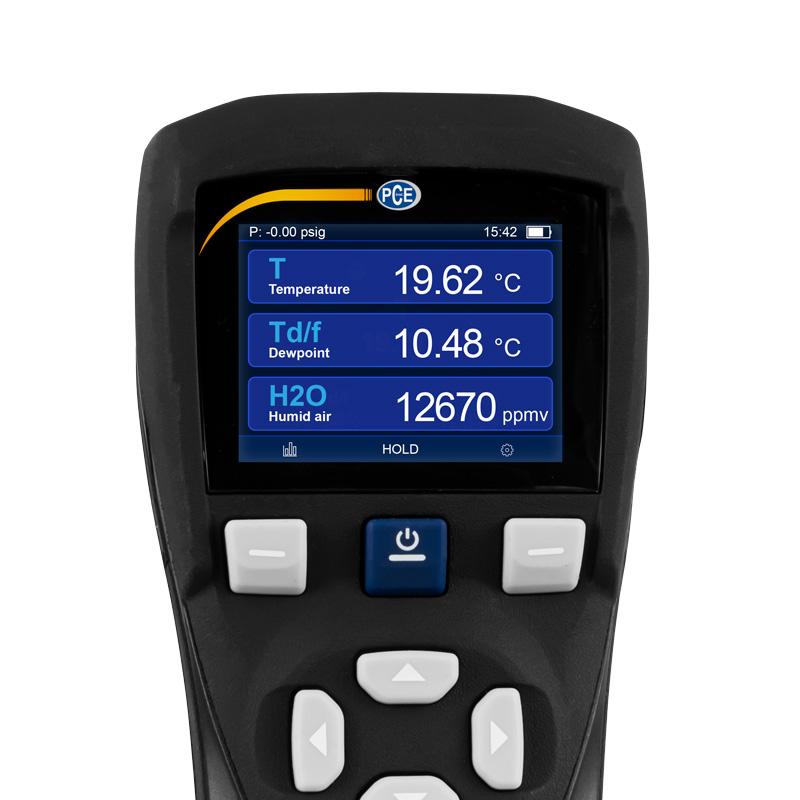

The internal memory permanently logs the measured values in a pressure line. You can view the data directly on the device. Over micro-USB, the meter appears as a mass storage device on any computer, whatever its operating system. Data are saved in CSV format for evaluation in any spreadsheet program.
Highlights
- Measures dew point, H2O, temperature and humidity

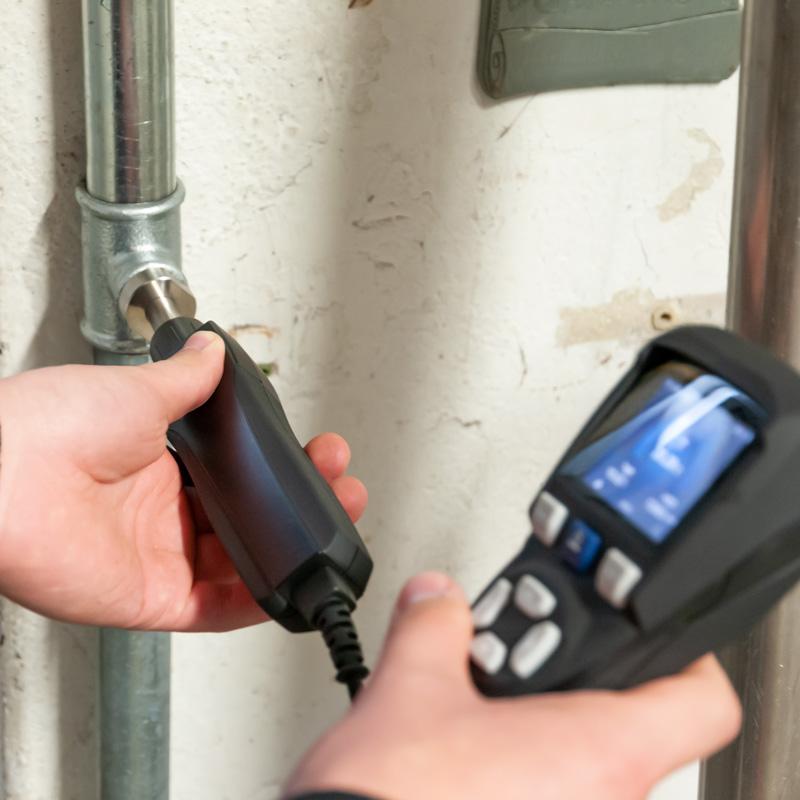

- Inline measurement in compressed air pipes
- G1/2" connection thread

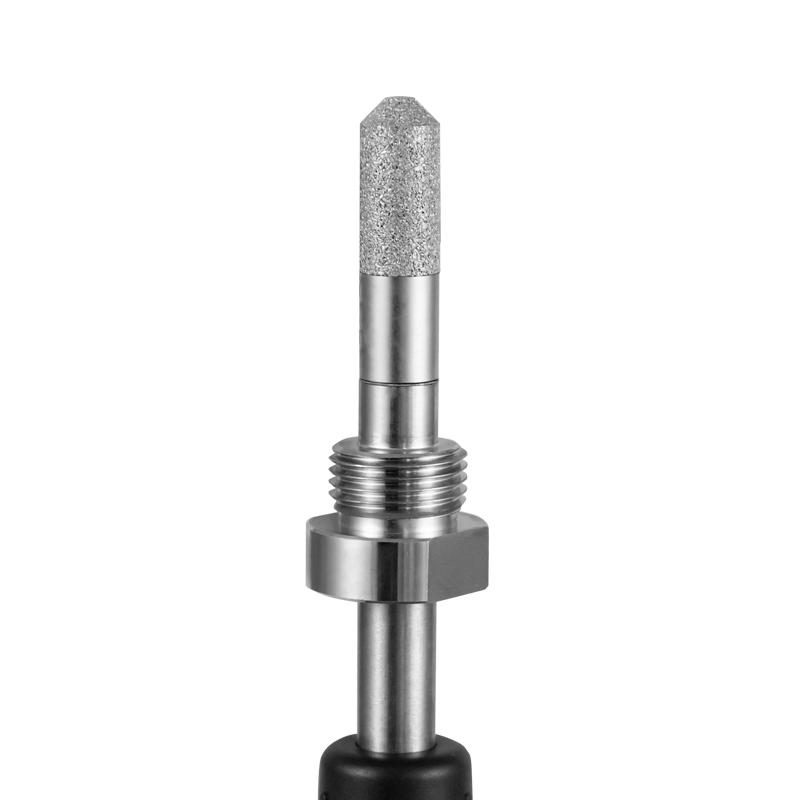

- Sensors protected by sintered filter
- Memory for approx. 50,000 values
- CSV export via micro-USB, no software needed
- Rechargeable battery for mobile use
Specifications
| H₂O | |||||||
|---|---|---|---|---|---|---|---|
| Measuring range | 40 ... 20000 ppm | ||||||
| Resolution | 1 ppm | ||||||
| Accuracy | ±(7.3 ppm +8.3%) @ 20°C | ||||||
| Dew point | |||||||
| Measuring range | -50 ... +30 °C | ||||||
| Resolution | 0,01 °C | ||||||
| Accuracy | -40 ... +20 °C: ±2°C, -50 ... -40 °C: ±2.5°C @ ambient temperature from 16 ... 25°C | ||||||
| Relative humidity | |||||||
| Measuring range | 0 ... 100 % RH | ||||||
| Resolution | 0,01 % RH | ||||||
| Accuracy | < 5 % RH: ±(0.025 % +17.5% v.Mw), > 5 % RH: ±(1% +5 % v.Mw.), > 15 % RH: ±(2% +3% v.Mw.) @ 20°C | ||||||
| Temperature | |||||||
| |||||||
| General technical data | |||||||
| Cable length | 1,5 m | ||||||
| Display type | LCD | ||||||
| Display size | 2,3 Inch | ||||||
| Storage medium | Internal memory | ||||||
| Storage capacity | 50000 Values | ||||||
| Storage interval from | 10 s | ||||||
| Storage interval to | 20 min. | ||||||
| Interface | Micro-USB | ||||||
| Response time Additional information | Response time at: 0.2 m/s, 1 bar, 20°C, 63% r.h. [90%]: 0 ... 40°C: 20 s [120 s] -40 ... 0°C: 10 s [20 s] | ||||||
| Automatic power-off from...to | 10 ... 30 min. | ||||||
| Dimensions | Thread: G1/2 inch Thread length: 1.2 cm Probes: Length: 5.2 cm / Width: 1.2 cm | ||||||
| file format | CSV | ||||||
| Menu language | English, Chinese, English (GB) | ||||||
| Protection class (device) | IP20 | ||||||
| Power supply | Primary: 100 ... 240V AC / 0.25 A Secondary: 5V DC, 1 A | ||||||
| Connector type | Device-europlug | ||||||
| Rechargeable battery | 1 x 3,7 V internal , Lithium-ion battery | ||||||
| Capacity | 3000 mAh | ||||||
| Operating conditions | 0 ... 40 °C , 0 ... 80 (non-condensing)% RH | ||||||
| Storage conditions | -10 ... 60 °C , 0 ... 80 (non-condensing)% RH | ||||||
| Dimensions ( L x W x H ) | 190 x 75 x 38 mm | ||||||
| Weight | 610 g | ||||||

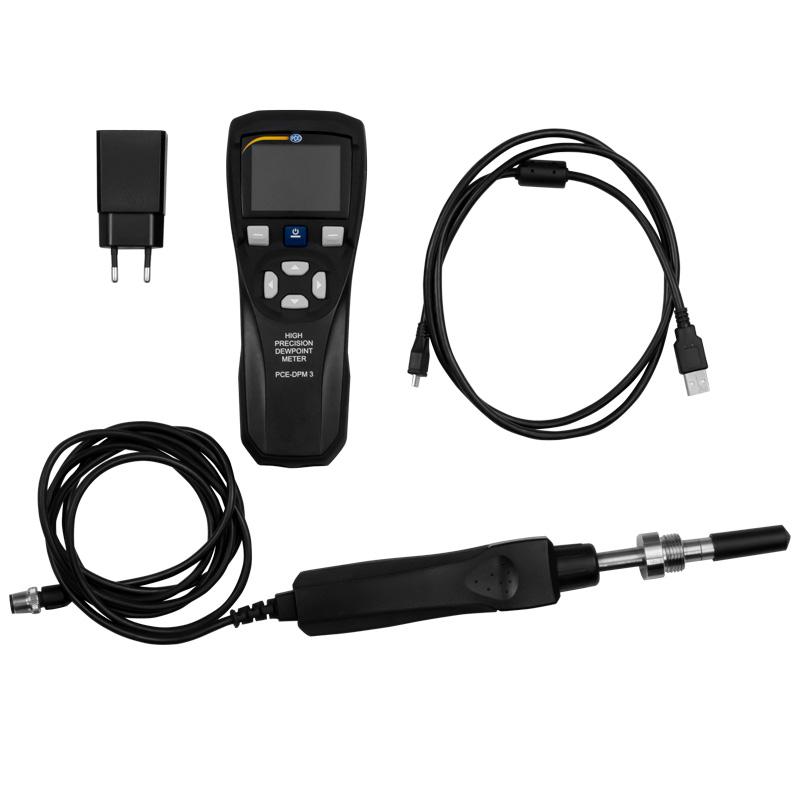

Package Contents
- 1×PCE-DPM 3 Hygrometer
- 1×USB power supply
- 1×Micro USB cable
- 1×Transport case
- 1×Instruction manual
