Cable diameter |
28 mm / 1.1 in |
|
Cable length |
30 m / 98 ft |
|
Depth of field |
10 mm … ∞ / 0.4 in to infinity |
|
Field of view |
150.8° |
| Bending radius | 90 mm / 3.54 in |
| Illumination | 8 LED |
| Image sensor | CMOS / 640 x 480 |
| Frame rate | 30 fps |
| Display | LCD 7" (800 x 480) |
| Image resolution | 640 x 480 JPEG |
| Video recording | 640 x 480 MPEG (with audio recording) |
| Drop test | 1 m / 3.2 Ft |
| Power supply | Li-Ion battery |
| Exit | USB |
| Memory | SD card (up to 32 GB) |
| AV output | NTSC / PAL |
| Audio input | Built-in microphone |
| Brightness adjustment | Adjustable in 10 steps on the main unit |
| Battery life | 5 hours |
| Battery charging time | 3 hours |
| Charging temperature | 10 ... 40°C / 50 ... 104°F |
| Operating temperature | 0 ... 60°C / 32 ... 140°F |
| Storage temperature | 0 ... 60°C / 32 ... 140°F |
| Sealing class | IP 68: dust and water resistant, meaning it can be underwater for 30 minutes at depths up to 1.5 m / 4.92 ft |

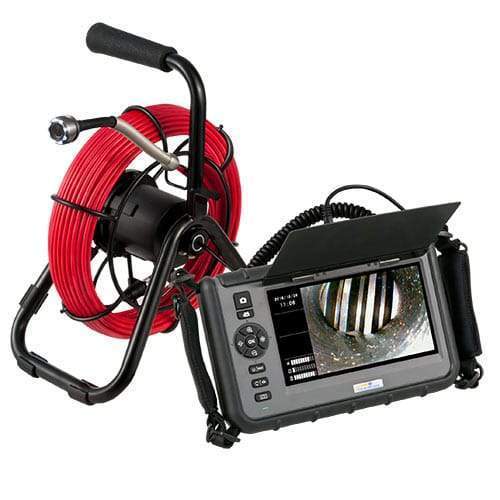

PCE-VE 1030N Industrial endoscope With a 30 m / 98 ft waterproof semi-flexible cable with a diameter of 28 mm / 1.1 in on a reel / Records and saves photos and videos with audio recording capability on the SD memory card

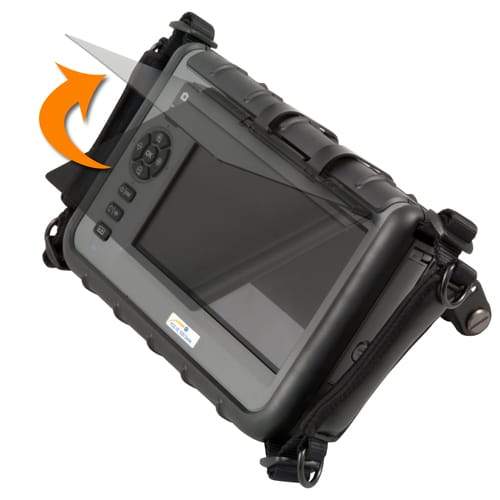

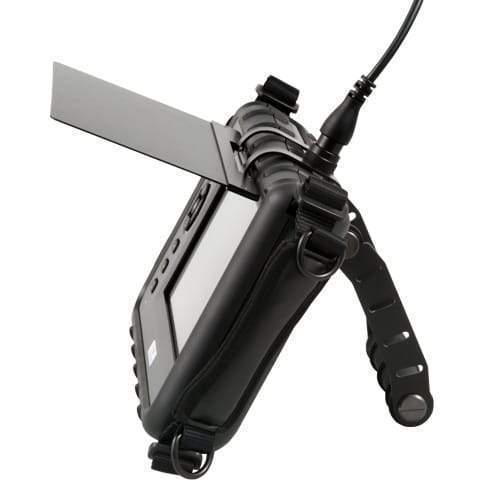

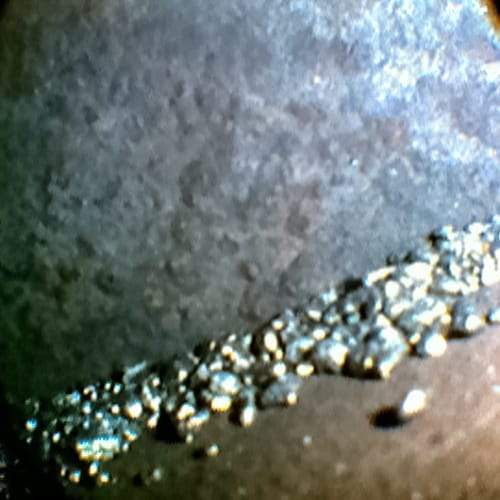

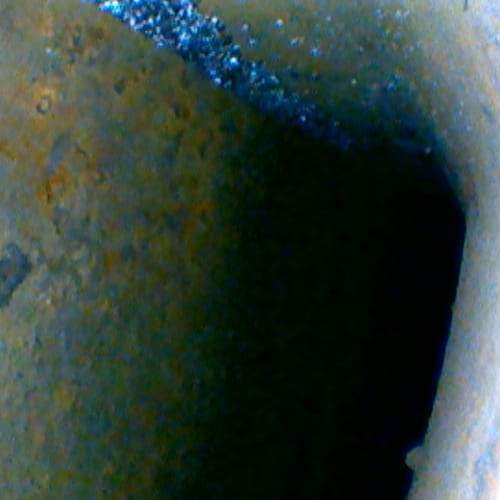

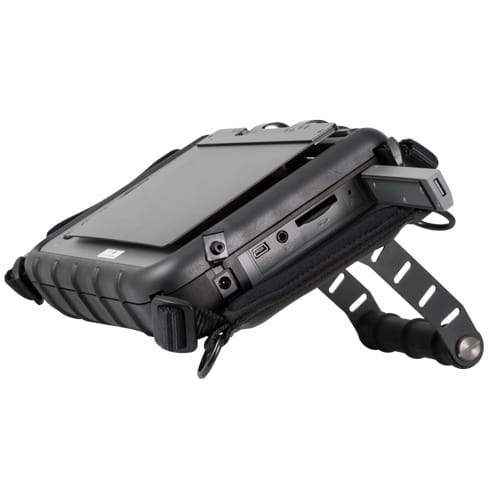

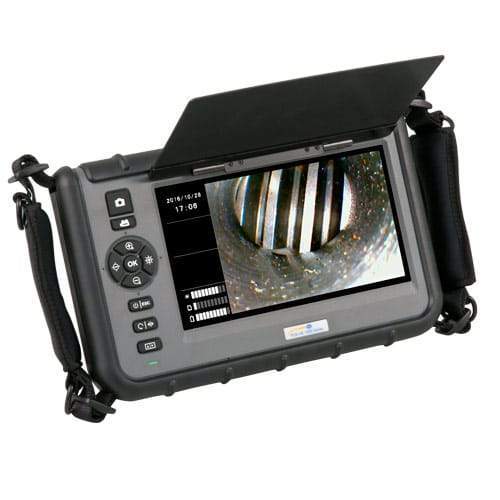

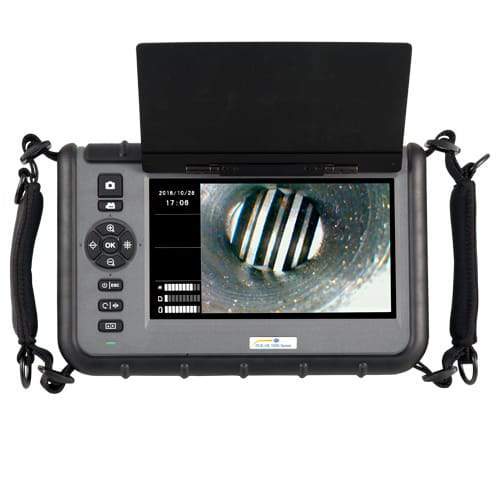

The PCE-VE 1030N is a versatile industrial inspection camera with a 7in high-resolution display. The endoscope can record and save images, videos, and audio on an SD memory card (up to 32G), which can be easily and quickly transferred to a computer for further processing.

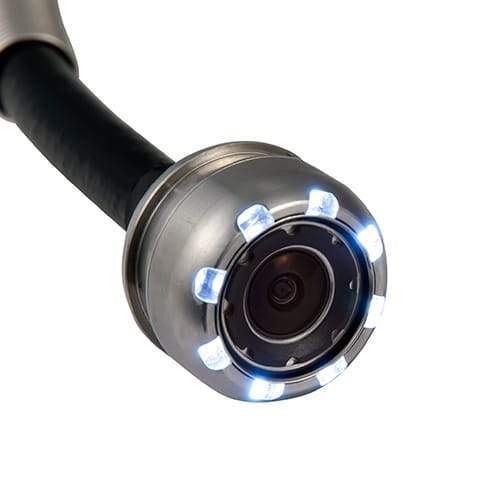

The camera comes with a semi-flexible 30 m / 98 ft push-pull cable with a diameter of 28 mm / 1.1 in on a reel. The camera cable is waterproof and the head is equipped with 8 bright LEDs for optimal spot lighting.
***Not suitable for medical use***
- Waterproof camera head with 28 mm / 1.1 in diameter and 8 bright LED lights for optimal illumination
- Semi-flexible 30 m / 98 ft push cable on reel
- Capture and save images and videos with audio recording capability
- With image rotation capability
- Includes SD memory card
Package contents
1 x PCE-VE 1030N industrial endoscope
1 x Semi-flexible waterproof push-pull cable on reel

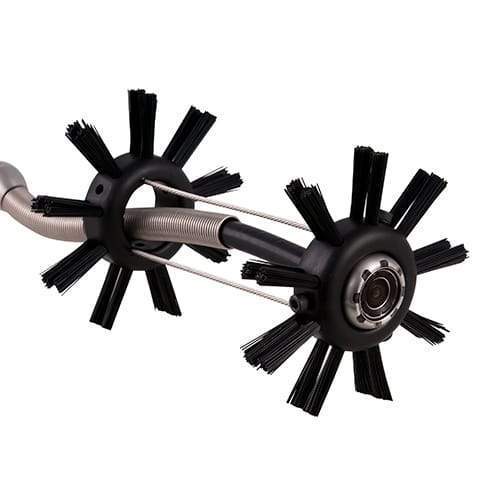

1 x Star centering brush
1 x SD memory card
1 x USB cable
1 x Current transformer
1 x Video cable
1 x Carrying case
1 Year Warranty
PCE Instruments Factory
The PCE Deutschland GmbH, known as PCE Instruments, is a German company based in Meschede, which from 1999 to the present has established itself internationally as a reliable manufacturer and supplier of measuring, testing, and weighing instruments. The company offers an exceptionally wide range of instruments – from vibration, humidity, noise, and temperature meters to precision scales, analyzers, sensors, and data loggers – covering every need in industry, laboratories, and research.
PCE Instruments products are used in a wide range of sectors such as industrial production, quality control, equipment maintenance and assurance, environmental measurement, energy inspection, as well as education and scientific research. With a combination of know-how, reliability, and flexibility, the company provides complete solutions that ensure accurate results and contribute to improving measurement and testing processes in every professional sector.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of PCE Instruments in Greece since 2015. We have a large variety of Pce products in stock, which is continuously increasing. In addition, we can support the entire range of its catalog, which includes more than 5,000 different product codes.
In our store we provide technical support for all PCE Instrumentrs products via trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
All of its products meet European specifications, following various international quality and safety standards.
| SKU | Length | Diameter | Type | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| PCE-VE 1030N | 30 m | Ø 28 mm | Flexible | 5-8 business days |
+VAT
€3.391,00
|
