CODEPCE-DHM 10
CODEPCE-DHM 10
Microscope with TFT screen
USBPc Software
- 500x magnification
- 7.62 cm / 3" TFT colour display
- Works without a PC
- 5 MP camera, photo and video
- Stores on MicroSD card
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
Availability & price
| Code | Magnification | Availability | excl. VAT | incl. VAT | Cart |
|---|---|---|---|---|---|
| PCE-DHM 10 | 27x & 100x |
€275,00
|
€341,00
|
- 500x magnification
- 7.62 cm / 3" TFT colour display
- Works without a PC
- 5 MP camera, photo and video
- Stores on MicroSD card

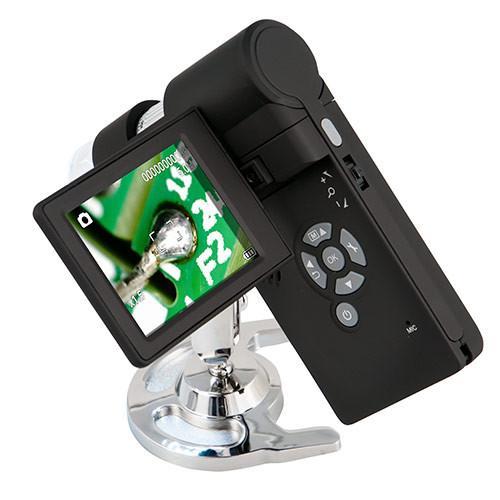

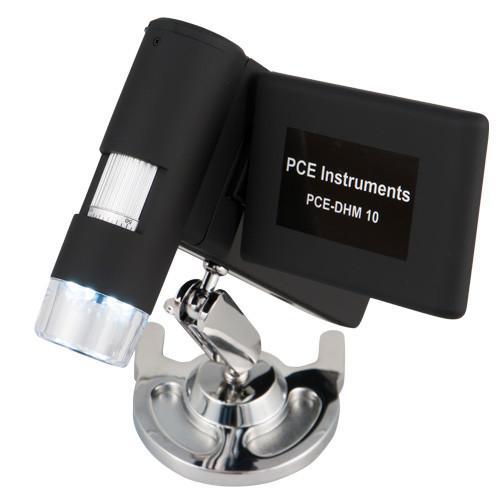

The PCE-DHM 10 is a digital microscope with a 5 megapixel camera (12 megapixel interpolated) and a 7.62 cm / 3" TFT colour display. 8 white LEDs light the object. It runs on its Li-Ion battery and saves images and videos on a MicroSD card of up to 32 GB, so no PC is needed.
Files transfer to a PC or laptop over USB 2.0, with reduced resolution on USB 1.1. The supplied software measures distances and areas to scale and records video in VGA and QVGA. Typical uses: industrial surface inspection, research, school and university work.
Highlights

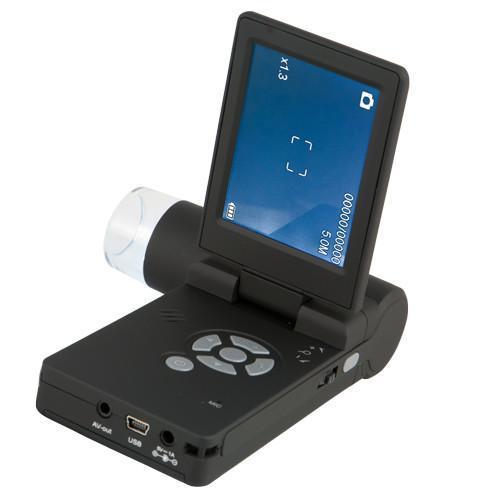

- Retractable 7.62 cm / 3" TFT colour display
- 5.0 MP CMOS image sensor
- Resolution 12, 9 (interpolated), 5, 3, 1.3 MP, VGA
- Magnification 20x, 200x and 500x at 5 MP
- Working distance 10 ... 30 mm / 0.39 ... 1.2 in
- Dual axis 27X & 100X microscope lens
- Shutter speed 1 s to 1/1000 s
- Buttons for image capture and 4x digital zoom
| General technical data | |
|---|---|
| Connections additional information | Reduced resolution with USB 1.1 |
| Display type | TFT colour display |
| Display size | 3 Inch |
| Storage medium | Micro SD card |
| Memory information | Stores independently of PC on Micro-SD cards up to 32 GB |
| Interface | Mini-USB, AV out |
| Sensor | CMOS |
| Camera resolution | Image resolution (pixels): 12 million (interpolated), 9 million (interpolated), 5 million, 3 million, 1.3 million, VGA |

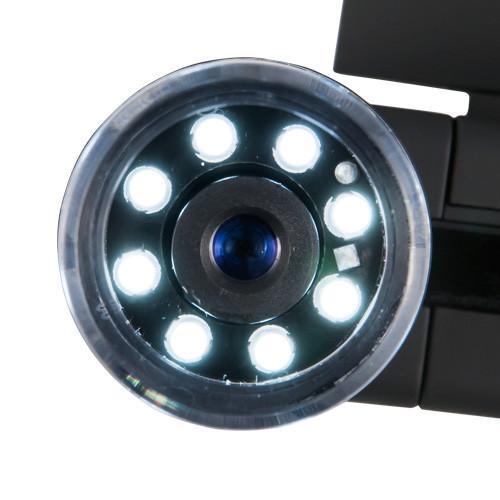

| Light source | 8 white LEDs |
| Working distance | 10 .... 30 mm |
| Magnification | 20 ... 500 x |
| Shutter speed | 0.001 ... 1 s |
| Additional description | - Software for scale-accurate measurements of distances and areas in enlarged view - Capture software for video recording. Resolution for video recording: VGA and QVGA - Dual Axis 27X & 100X microscope lens |
| Menu language | English, German, French, Spanish |
| Protection class (device) | IP20 |
| Power supply | 3.7V |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion battery |
| Capacity | 800 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 130 x 112 x 28 mm |
| Weight | 171 g |

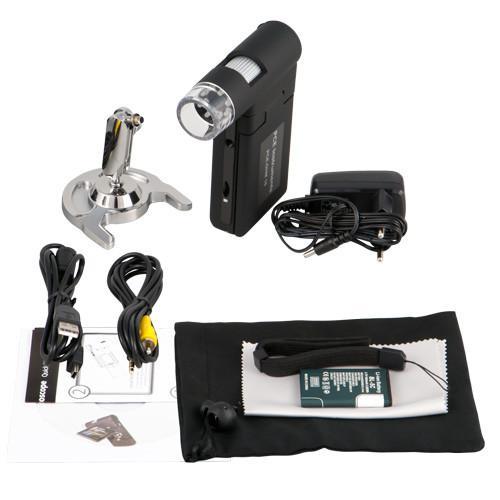

- 1×Microscope PCE-DHM 10
- 1×Stand
- 1×USB cable
- 1×User manual
- 1×Software
