Specification

Measurement ranges: Voltage AC Voltage DC Resistance Insulation resistance	0 ... 750V 0 ... 1000V 0 ... 200 Ω / 200 ... 2000 Ω 0 ... 200 MΩ / 200 ... 2000 MΩ
Resolution Voltage AC Voltage DC Resistance Insulation resistance	1V 1V 0.1 Ω / 1 Ω 100 kΩ to1 MΩ
Accuracy Voltage AC Voltage DC Resistance Insulation resistance	plus-minus1.2% plus-minus 10 digits plus-minus0.8% plus-minus 3 digits plus-minus1.0% plus-minus 2 digits plus-minus3.5% plus-minus 5 digits
Test voltages	250V - 200 MΩ 500V - 200 MΩ 1000V - 2000 MΩ
Test current	Whistle: ≤40 Ω, test current ≤200-mA
Power	6 AA batteries
Operating conditions	0 ... 40 degrees C / 32 ... 104 degrees F, <80% r.h.
Dimensions	200 x 92 x 50 mm / 7.9 x 3.6 x 2 in
Weight	700 g / 1.5 lbs
Standards	IEC10101, CAT III 1000V

Description

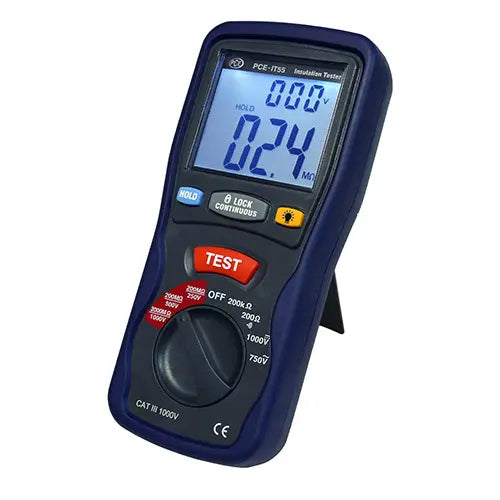

Insulation Tester PCE-IT 55

CAT III 1000V / For insulation resistance up to 2000 MΩ

The PCE-IT 55 Insulation Tester determines insulation resistance up to a maximum of 2000 MΩ (for auxiliary voltages of 250, 500 and 1000V). This Insulation Tester also offers the ability to measure alternate and continuous currents up to a maximum 750V / 1000V and resistance up to 2 kΩ. Includes test current and a warning whistle. The device meets with these standards: DIN 57 411 part 1 / VDE 0411 part 1, protective measures for electronic devices (IEC1010-1) and DIN VDE 0413 (Insulation Tester). It comes calibrated from the manufacturer and an optional laboratory calibration and ISO certificate can be ordered separately for annual recalibrations.

Delivery Scope

1 x PCE-IT 55 Insulation tester

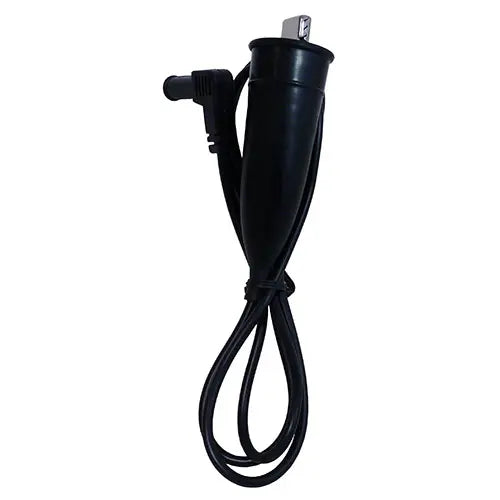

1 x Test cables
1 x Extractable clamp with 1 m / 3.3 ft cable
6 x Batteries
1 x Carrying case
1 x User's manual (see image)
