Refractometers

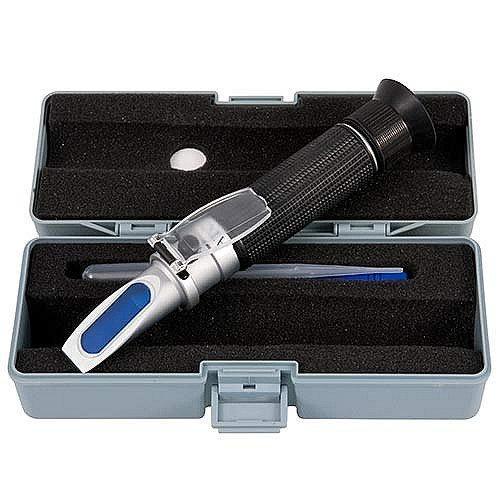

PCE Instruments PCE-010 0-10% BRIX refractometer in grey case, with prism and black eyepiece

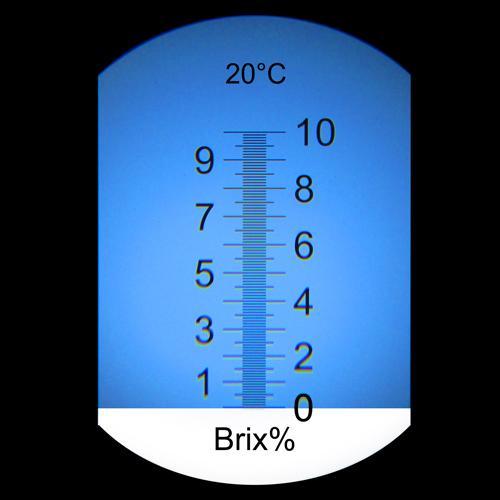

0-10% Brix measuring scale in PCE Instruments PCE-010 refractometer, showing 20°C and Brix% graduation
PCE Instruments PCE-010 0-10% BRIX refractometer in grey case, with prism and black eyepiece
0-10% Brix measuring scale in PCE Instruments PCE-010 refractometer, showing 20°C and Brix% graduation

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-010
€84,00
€104,16
0
  • Brix range 0 ... 10 %
  • Resolution 0.1 %
  • Accuracy ±0.1 %
  • Automatic temperature compensation (ATC)
  • Pocket-sized handheld refractometer

The PCE-010 is a handheld pocket Brix refractometer. It measures % Brix (sucrose or sugar content) in low-concentration translucent liquids. Typical samples are fruit and vegetable juices, maple sap and industrial coolants.

A smooth focusing eyepiece shows an easy-to-read scale on a semi-transparent blue and a clear background. Normal room lighting is enough to read the result. Automatic temperature compensation (ATC) keeps readings accurate when the operating temperature changes, so you do not need to recalibrate.

Highlights

  • Brix range 0 ... 10 %, accuracy ±0.1 %
  • For juices, maple sap and industrial coolants
  • Smooth focusing eyepiece
  • Easy-to-read scale on blue and clear background
  • Needs only ambient room lighting
  • ATC: no recalibration after temperature shifts
  • Handheld, portable and easy to use
Brix
Measuring range0 ... 10 %
Resolution0,1 %
Accuracy±0.1 %
General technical data
Temperature compensation10 ... 30 °C
Measured mediumLow-concentration emulsions
Protection class (device)IP20
Operating conditions0 ... 50 °C , 0 ... 90 % RH
Storage conditions0 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )172 x 20 mm diameter
Weight260 g
  • 1×PCE-010 Refractometer / Refractometer / Handheld Refractometer
  • 1×pipette
  • 1×user manual
  • 1×carrying case
Datasheet Technical datasheet Manual User manual
PCE Instruments

Official distributor

PCE Instruments

Η PCE Deutschland GmbH , γνωστή ως PCE Instruments , είναι μια γερμανική εταιρεία με έδρα το Meschede, που από το 1999 έως σήμερα έχει καθιερωθεί διεθνώς ως αξιόπιστος κατασκευαστής και προμηθευτής οργάνων μέτρησης, ελέγχου και ζύγισης. Η εταιρεία διαθέτει μια εξαιρετικά πλούσια γκάμα οργάνων – από μετρητές δόνησης, υγρασίας, θορύβου και θερμοκρασίας έως ζυγούς ακριβείας, αναλυτές, αισθητήρες και καταγραφικά δεδομένων – κ αλύπτοντας κάθε ανάγκη στον χώρο της βιομηχανίας, των εργαστηρίων και της έρευνας.

This product belongs to the collection

Refractometers

You're viewing one product from this category. Browse the full range.

25 products
View all

Related categories

All categories →
Chemical Technology Heating Mantles7 products Magnetic Stirrers4 products Colorimeters16 products Gloss Meters9 products
Refractometers

From our Wiki

Refractometers

The refractometers are precision instruments used to measure the refractive index of liquids and semi-solid substances. By analyzing the light passing through the sample, they determine the concentration of dissolved substances, ensuring quality control and product standardization.

  • Applications: Measurement of sugars (Brix), salinity, alcohol content, and antifreeze density.
  • Use: Essential in the food industry, winemaking, chemical laboratories, and mechanical engineering.
  • Features: Available as portable, digital, or benchtop models, offering speed and automatic temperature compensation (ATC).
Read the guide
