Roughness Testers

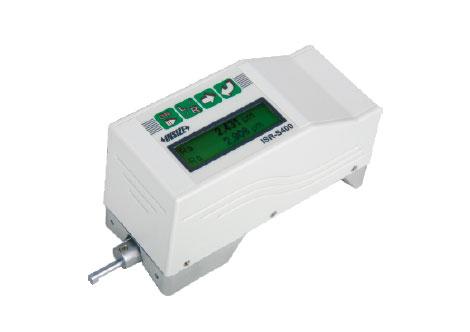

Τραχύμετρο Insize ISR-S400 λευκό με πράσινη οθόνη LCD και προεξέχον ακροδέκτη μέτρησης μπροστά
Τεχνικά χαρακτηριστικά ISR-S400 - Τραχύμετρο (σελ. 1)

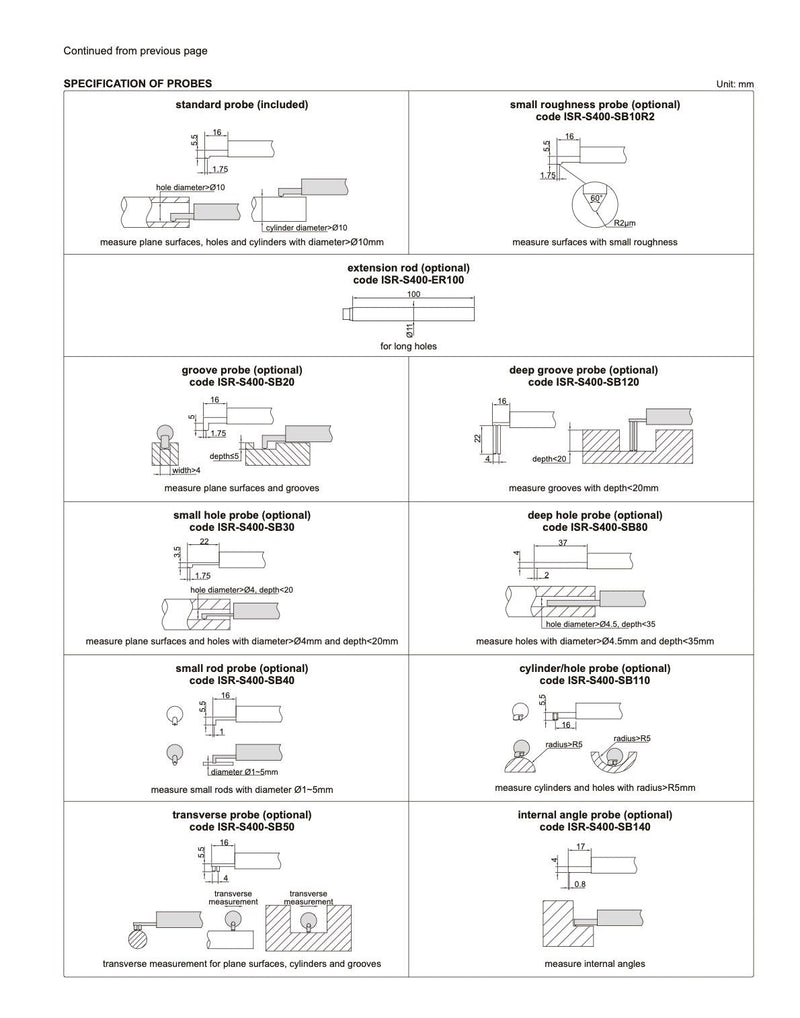

Τεχνικά χαρακτηριστικά ISR-S400 - Τραχύμετρο (σελ. 2)
Τραχύμετρο Insize ISR-S400 λευκό με πράσινη οθόνη LCD και προεξέχον ακροδέκτη μέτρησης μπροστά
Τεχνικά χαρακτηριστικά ISR-S400 - Τραχύμετρο (σελ. 1)
Τεχνικά χαρακτηριστικά ISR-S400 - Τραχύμετρο (σελ. 2)

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
ISR-S400
€3.197,00
€3.964,28
0
  • Automatic sensor calibration
  • Languages: English, French, German, Italian, Spanish, Portuguese
  • 12 roughness parameters
  • With tolerance limit adjustment capability
  • Measuring range:
    • Ra: 0~100μm, Rt: 0.05~400μm
  • Accuracy: ±3%
  • Reading: 0.001μm
  • Sensor:
    • Inductive
    • Radius/ Angle: 5μm/ 90º
    • Material: Diamond
  • Measuring force: 0.75mN
  • Measurement units: μm, μin
  • Cut-off lengths: 0.25, 0.8, 2.5 mm
  • Number of cut-offs: 1 to 5
  • Cross speed: 1 mm/s
  • The sensor can be set at an angle of 90º or 270º for cross measurement
  • Memory: up to 100 measurements
  • Output: USB
  • Weight: 650 g
  • Dimensions: 122 x 52 x 68 mm
  • Power supply: built-in rechargeable battery
Manual User manual CE Certificate Quality document Catalog Full manufacturer catalog
Insize

Official distributor

Insize

INSIZE was founded in 1995 and is one of the world's leading manufacturers of measuring instruments and metrological equipment. With factories in China and other Asian countries, as well as production units in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability and reliability, while being distinguished by their excellent quality-price ratio.

This product belongs to the collection

Roughness Testers

You're viewing one product from this category. Browse the full range.

16 products
View all

Related categories

All categories →
Hardness Testers Coating Thickness Gauges18 products Ultrasonic Thickness Gauges15 products Eddy Current Testing1 products Metal Conductivity Meters1 products
Tachymeters

From our Wiki

Tachymeters

The roughness testers are electronic precision instruments used to measure and quantify the surface roughness of a material after machining. They operate by detecting the micro-peaks and valleys of the surface via a fine diamond stylus, converting the physical movement into digital data.

  • Measurement Parameters: They calculate critical values such as Ra (average roughness), Rz and Rq, in accordance with international ISO standards.
  • Applications: Essential in the automotive industry, aerospace, and precision machining to ensure correct lubrication and friction of components.
  • Features: They are available as portable units for in-line production inspection and benchtop units for laboratory analysis, offering the ability to export statistical reports.
Read the guide
