| Measuring range | 0.1 ... 1000 m/s² acceleration Frequency dependent velocity |
| Monitoring values | Peak value of vibration acceleration or vibration velocity RMS value of vibration acceleration or vibration velocity |
| High pass filter | 0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration 2 / 5 / 10 / 20 / 50 Hz velocity |
| Low pass filter | 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration 1 kHz velocity |
| Relay output | PhotoMOS relay SPST Max. 60 V / 0.5 A (AC/DC) Open/close programmable Connection via screw terminals |
| Teach-in function Warning / alarm Alarm delay / hold time |
Button for measuring the switching threshold Green and red LEDs 0 ... 99 s / 0 ... 9 s |
| Interfaces | USB 2.0 full speed for parameterization and measurement CDC mode / virtual COM port Micro USB port inside |
| External USB port Power supply voltage |
No 5 ... 30 V DC 5 V DC USB < 100 mA screw terminals |
| Ingress protection | IP67 rating |
| Operating temp. range | -40 ... +80 degreesC / -40 ... +176 degreesF |
| Approx. weight | 160 g / 0.36 lb |
| Approx. dimensions | 50 mm / 1.97" Ø 52 mm / 2.05" height |
| Mounting | M8 thread pin 8 mm / ≈ 0.32" length 25 mm / ≈ 0.99" Ø coupling surface |
PCE-VS10 Vibration Meter Sensor Switch

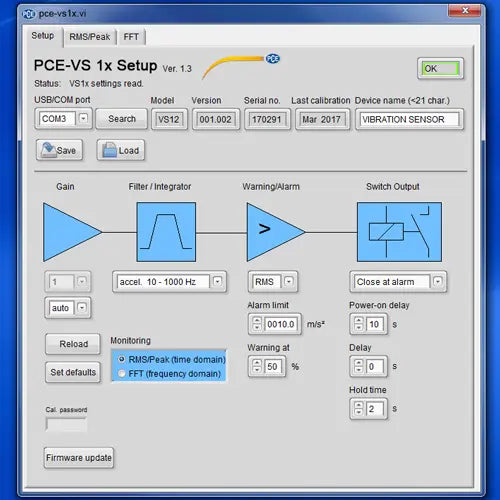

Setup via USB and PC / Includes software for detailed vibration analysis

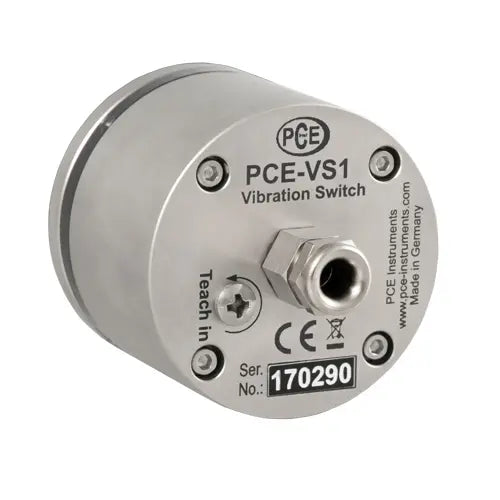

PCE-VS10 is a vibration meter, analyzer or sensor condition monitoring switch used to measure RMS and peak value of vibration velocity or acceleration piezoelectrically. This IP67-rated vibration monitoring switch features a red and green visual warning or alarm with programmable high pass and low pass filters.
- Ideal for machine condition monitoring and quality control applications
- Measures RMS and peak value of vibration velocity or acceleration
- Piezoelectric accelerometer
- IP67 ingress protection rating against water and dust

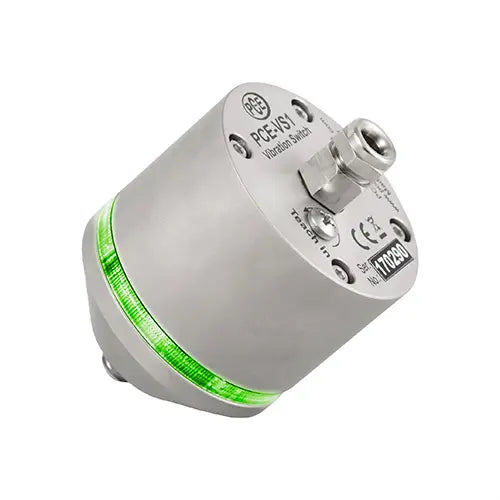

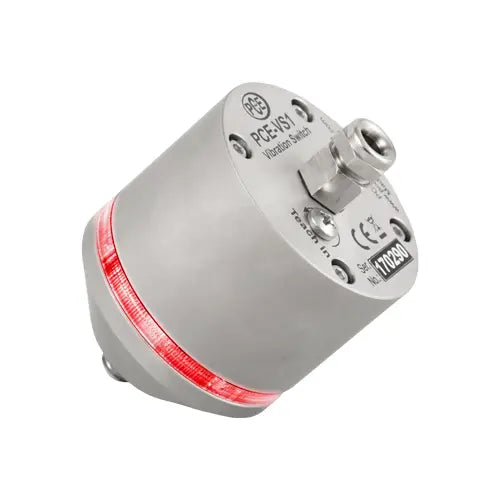

- Features a red and green visual warning or alarm
- Programmable high pass and low pass filters
- Emergency shut-off
- Setup via USB and PC
- Includes software for detailed vibration analysis
1 x USB cable
1 x PC-compatible software
1 x user manual
IPXY
-
X = Protection against solid objects & access to hazardous parts
-
Y = Protection against water ingress
| Value | 1st Digit – Solids / Access | 2nd Digit – Water |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Protection against solids ≥50 mm (test probe Ø50 mm) | Vertical falling drops |
| 2 | Protection against solids ≥12.5 mm (test probe Ø12.5 mm) | Drops with tilt up to 15° |
| 3 | Protection against solids ≥2.5 mm (test probe Ø2.5 mm) | Spraying up to 60° |
| 4 | Protection against solids ≥1 mm (test probe Ø1 mm) | Splashing from all directions |
| 5 | Protection against dust (limited ingress without harmful effects) | Water jets (nozzle 6.3 mm) |
| 6 | Complete dust-tightness (dust-tight) | Powerful water jets (nozzle 12.5 mm) |
| 7 | — | Temporary immersion (usually 1 m / 30 min) |
| 8 | — | Continuous immersion (depth & time specified by manufacturer) |
| 9 / 9K | — | High-pressure & high-temperature water jets |
