Gas Detectors - Dust Meters

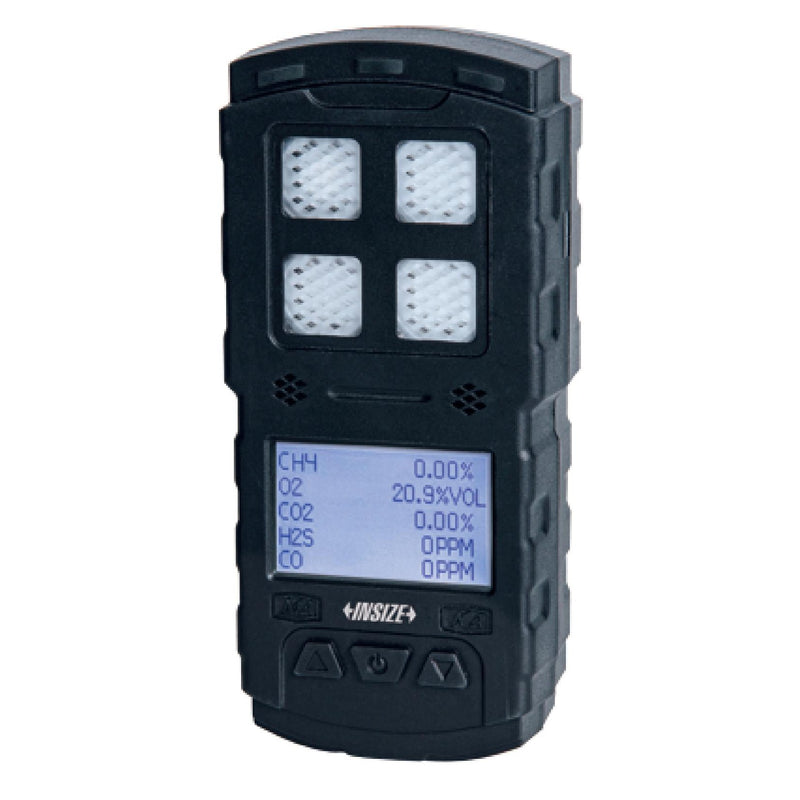

Insize 0617-MG05 multi-gas detector for mining, black with 4 sensor ports, LCD showing CH4, O2, CO2, H2S, CO and 3 buttons

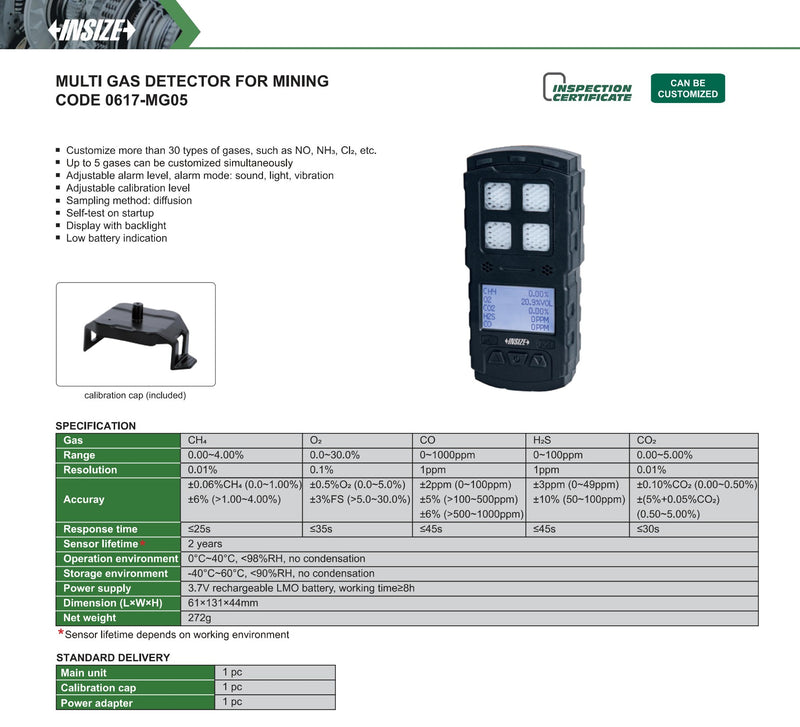

Technical specifications 0617-MG05 - Multi-Gas Detector for Mining
Insize 0617-MG05 multi-gas detector for mining, black with 4 sensor ports, LCD showing CH4, O2, CO2, H2S, CO and 3 buttons
Technical specifications 0617-MG05 - Multi-Gas Detector for Mining

Availability & price

Code Gas Availability excl. VATincl. VAT Certificate Cart
0617-MG05 Methane - Oxygen - Carbon monoxide - Hydrogen sulfide - Carbon dioxide Upon Request
€1.259,00
€1.561,16
0

Description

  • Simultaneous detection of 5 gases: methane (CH4), oxygen (O2), carbon monoxide (CO), hydrogen sulfide (H2S) and carbon dioxide (CO2)
  • Can be configured for more than 30 gas types, such as NO, NH3, Cl2 and others
  • Up to 5 gases at once in a custom configuration
  • Adjustable alarm threshold, with audible, visual and vibrating alarm
  • Adjustable calibration level
  • Sampling method: diffusion
  • Self-test at start-up
  • Backlit display
  • Low-battery indicator
  • Rechargeable 3.7V LMO battery, ≥8 hours of operation

Specifications

Gas CH4 O2 CO H2S CO2
Range 0.00~4.00% 0.0~30.0% 0~1000 ppm 0~100 ppm 0.00~5.00%
Resolution 0.01% 0.1% 1 ppm 1 ppm 0.01%
Accuracy ±0.06% CH4 (0.0~1.00%)
±6% (>1.00~4.00%)		 ±0.5% O2 (0.0~5.0%)
±3% FS (>5.0~30.0%)		 ±2 ppm (0~100 ppm)
±5% (>100~500 ppm)
±6% (>500~1000 ppm)		 ±3 ppm (0~49 ppm)
±10% (50~100 ppm)		 ±0.10% CO2 (0.00~0.50%)
±(5%+0.05% CO2) (0.50~5.00%)
Response time ≤25 s ≤35 s ≤45 s ≤45 s ≤30 s
Sensor life* 2 years
Operating conditions 0~40°C, <98% RH, non-condensing
Storage conditions -40~60°C, <90% RH, non-condensing
Power supply Rechargeable 3.7V LMO battery, operating time ≥8 h
Dimensions (L×W×H) 61×131×44 mm
Net weight 272 g

*Sensor life depends on the operating environment.

Package contents

  • Detector (1 pc.)
  • Calibration cover (1 pc.)
  • Power adapter (1 pc.)
