Digital Depth Gauge - With Dial

Technical Specifications

• Resolution: 0.1 mm / 0.0005"

• Not waterproof

• Supplied with three interchangeable measuring tips (flat, spherical, disc)

• Buttons: on/off, zero, mm/inch, preset (+/–)

• Automatic power off, power on with movement

• Battery: CR2032

• Material: stainless steel

• Optional extension base (series 6141 for selected models)

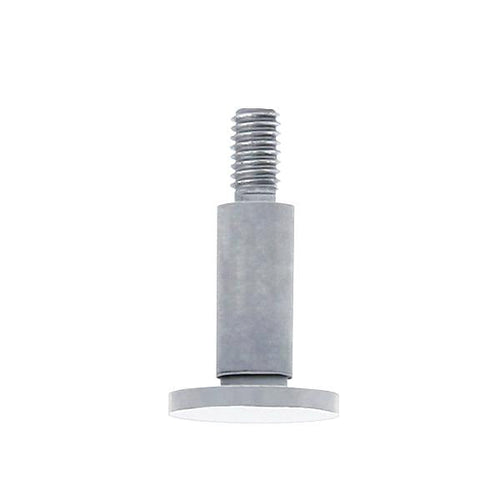

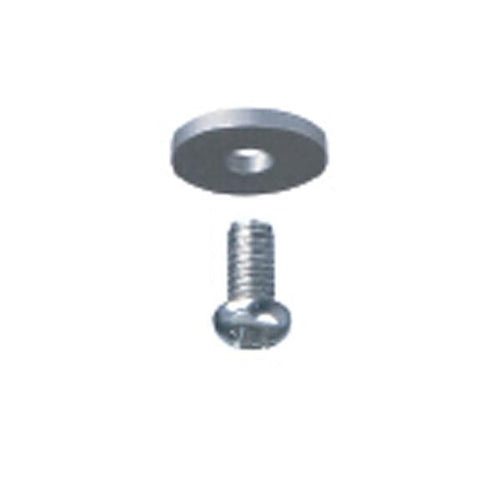

• Optional disc-type tips for measurements in blind holes

• With data connection capability (some models)

• Models with built-in wireless system (receiver code 7315-2/3/6/7/8/9)

• Available lengths: 200mm to 400mm

• Accuracy: ±0.02 mm to ±0.04 mm

Description
Digital depth gauges with cylindrical depth measuring rod, suitable for measurements in small holes (>Φ4mm), grooves, and internal diameter points. They include interchangeable tips for different uses. Some models feature data output capability or wireless connection. Suitable for high-precision applications in metalworking and mechanical tasks.
