Includes the standard template with code 7M11.2.00
Magnification: 10X
Field of view: 32 mm (1.24 inch)
Focusing length: 30 mm (1.17 in)
Minimum focusing division: 0.1 mm / 0.005"
Eyepiece: 20 mm
Dimensions: Ø 46 x 44 mm
Net weight: 74 g
The Peak Scale Loupe 10X features achromatic precision lenses (4 coated elements, 2 groups), scale, and focusing ring.
Comes with a fabric case.
| SKU | Magnification | Lens | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|
| 1983 | 10x | Ø 20 mm | 3 available |
+VAT
€77,00
|
Added to cart!
Template Standard 10x Ø35mm for magnifying glasses 1983, 2028
Standard measuring plate for 10x Standard with scale markingsZero Center – 0 to ±10mm (1/2mm divisions)Crosshair at zero
Template 1 for 10x magnifying glasses Ø35 mm 1983, 2028
Protractor 0-90° (1° intervals)Concentric Circles 1/2-10mm (1/2mm intervals)0 to ±10mm Scale (0.1mm divisions)0 to 0.4in. (0.005in. division), 0.02...
View full details

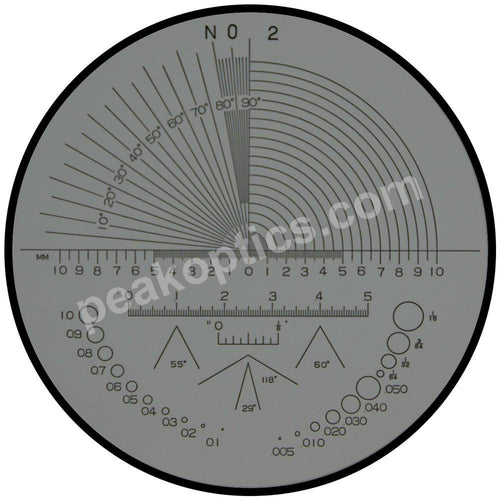

Template 2 for 10x magnifying glasses Ø35 mm 1983, 2028
0 to 0.5in. Scale (0.005in. divisions)Circles mm and in., AnglesConcentric Circles 0-10mm (1/2mm intervals)
Template 3 10x Ø35 mm for magnifying glasses 1983, 2028
Thickness Lines 0.02- 0.16mm (0.01mm intervals)
Template 4 for 10x magnifiers Ø35 mm 1983, 2028
0 to 10mm Scale (0.1mm divisions)10mm by 5mm SquaresCircles 0.05mm to 1.0mm diameter
Template 5 10x Ø35 mm for magnifiers 1983, 2028
0-0.5in. Scale(0.005in. divisions)Concentric Circles 1/16- 3/8in. (1/32in. divisions)
Template 6 10x Ø35 mm for magnifying glasses 1983, 2028
0-90° (5° divisions)Concentric Circles 1/2mm- 10mm (1/2mm intervals)0 - ±10mm Scale, 0 to 0.3in. Scale, 0 to 3/8in. Scale
Template 7 for 10x magnifying glasses Ø35 mm 1983, 2028
0 to 10mm (0.1mm division), 0.5mmSquares Circles 0.1mm - 2.5mm diameter
Template 8 10x Ø35mm for magnifiers 1983, 2028
0-20mm Scale (0.1mm divisions)
Template 9 10x Ø35 mm for magnifiers 1983, 2028
0-180° Scale 0-90° Scale (1° divisions)0-10mm Concentric Circles (1/2mm intervals)
