Clamp Kits

Availability & price

5 codes

Code Slot (mm) H max. (mm) F2 (kN) Availability excl. VATincl. VAT Cart
296000 12 12 13.5 0.6 Upon Request
€129,00
€159,96
0
296000 14 14 13.5 0.7 Upon Request
€144,00
€178,56
0
296000 16 16 17 0.9 Upon Request
€161,00
€199,64
0
296000 18 18 16 1 Upon Request
€171,00
€212,04
0
296000 22 22 21.5 1.9 Upon Request
€257,00
€318,68
0

Description

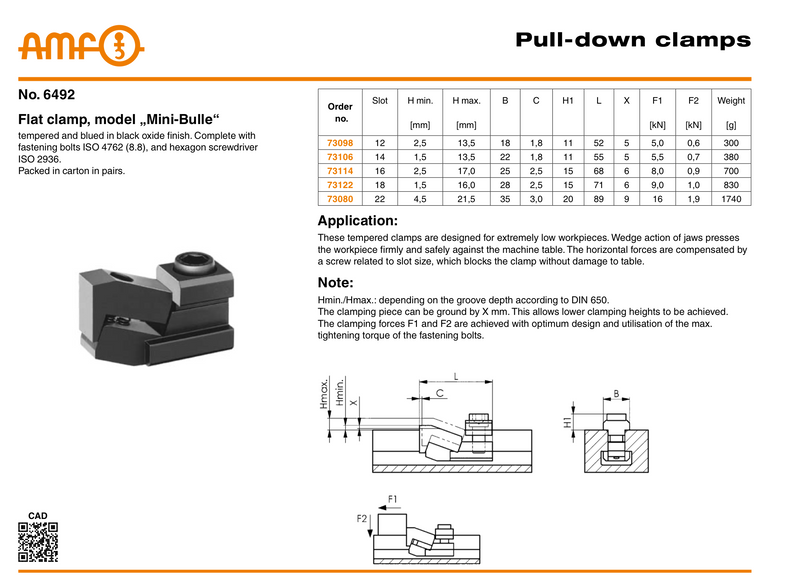

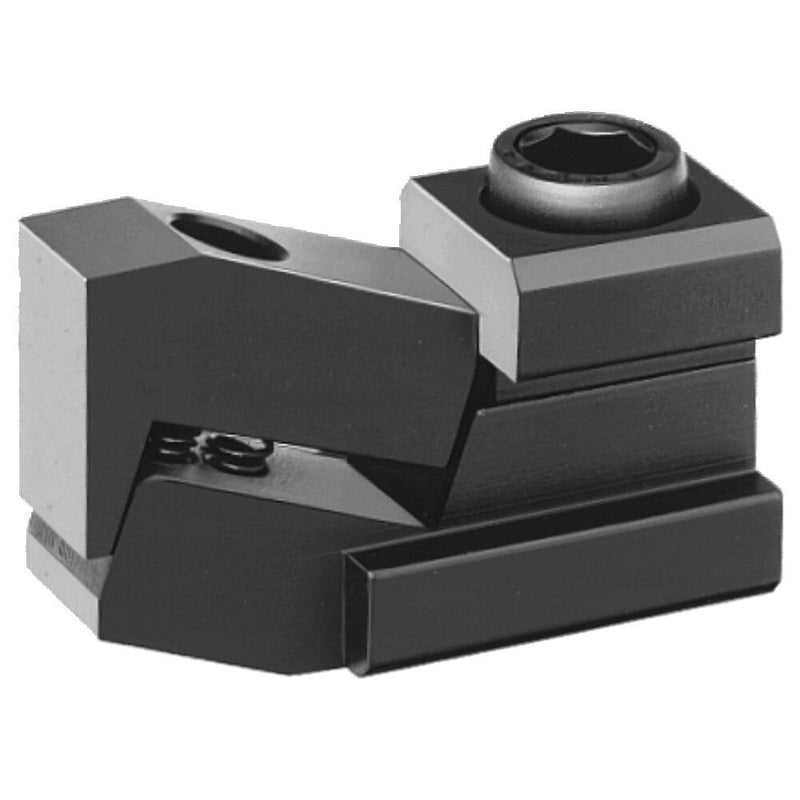

AMF flat clamps of the «Mini-Bulle» type for holding very short workpieces from the side. The wedge action of the jaws presses the workpiece firmly and securely onto the machine tool table.

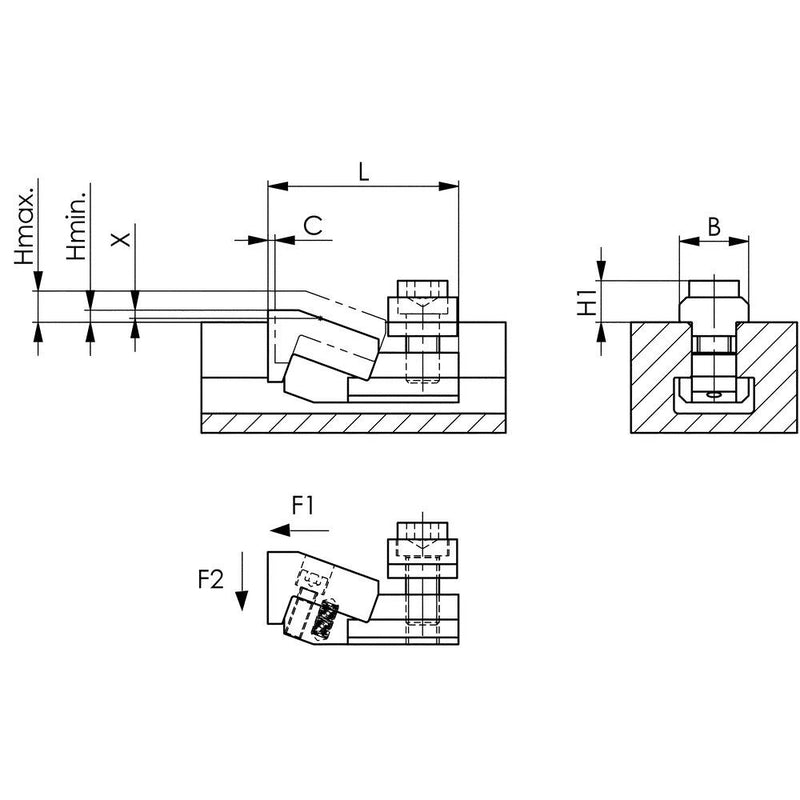

Supplied in pairs, complete with ISO 4762 (8.8) fastening screws and an ISO 2936 allen key. The heights Hmin./Hmax. depend on the depth of the slot per DIN 650; the clamping section can be ground down by X mm for lower clamping heights.
