Gloss Meters - Gloss Meters
Στιλπνόμετρο Insize 5702-DG6 με πράσινη λαστιχένια θήκη και ψηφιακή οθόνη, μετράει γωνία 60° σε μάρμαρο και πλαστικά υλικά.
Insize στιλπνόμετρο 5702-DG6 με πράσινο κάλυμμα, ψηφιακή οθόνη και μαύρο σώμα για μετρήσεις γυαλάδας 200GU
Στιλπνόμετρο Insize 5702-DG6 γωνίας 60° με μαύρη συσκευή και πράσινη θήκη αποθήκευσης

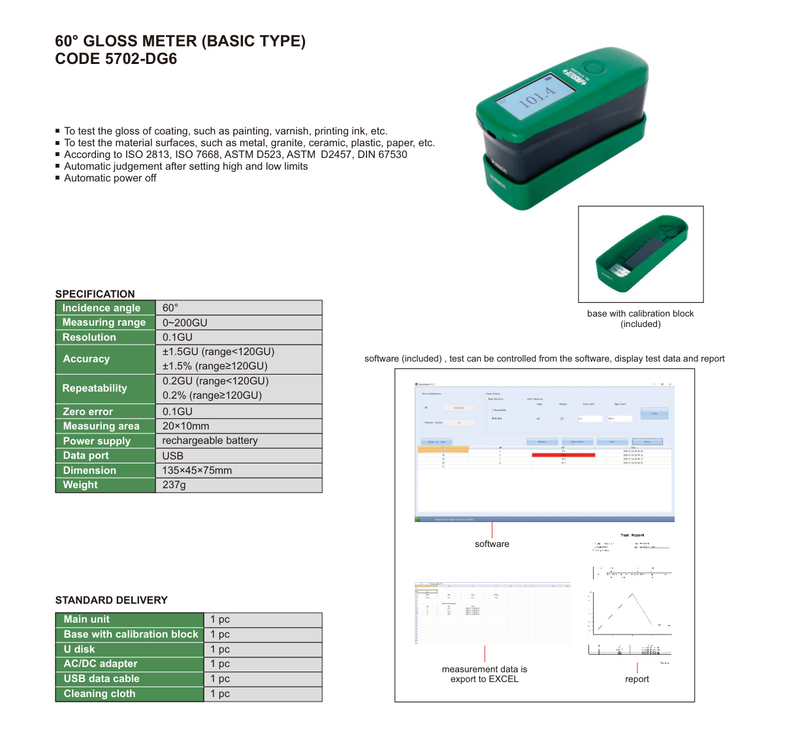

Τεχνικά χαρακτηριστικά 5702-DG6 - Στιλπνόμετρο Γωνίας 60° 200GU (μάρμαρο, πλαστικό)
Στιλπνόμετρο Insize 5702-DG6 με πράσινη λαστιχένια θήκη και ψηφιακή οθόνη, μετράει γωνία 60° σε μάρμαρο και πλαστικά υλικά.
Insize στιλπνόμετρο 5702-DG6 με πράσινο κάλυμμα, ψηφιακή οθόνη και μαύρο σώμα για μετρήσεις γυαλάδας 200GU
Στιλπνόμετρο Insize 5702-DG6 γωνίας 60° με μαύρη συσκευή και πράσινη θήκη αποθήκευσης
Τεχνικά χαρακτηριστικά 5702-DG6 - Στιλπνόμετρο Γωνίας 60° 200GU (μάρμαρο, πλαστικό)

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
5702-DG6
€356,00
€441,44
0

Key Features

Standards: Fully complies with the standards JJG 696, ISO 2813, ASTM D2457, ASTM D523 and GB/T 9754.

Functions: Features an automatic evaluation system (after setting upper and lower limits) and an automatic power-off function.

Data Transfer: Equipped with a USB type-C data port for easy export of results.

Management Software: Includes software that allows control of measurements, viewing of data and export of reports.

Power Supply: Operates with a rechargeable Li-ion 3.7V battery.

Dimensions / Weight: Has dimensions 135x45x75mm and weight 237g.

Reading / Error: Resolution 0.1GU and zero-value error 0.1GU.

Technical Specifications

Characteristic Model 5702-DG6 PDF
Measurement Angle

60°

Measurement Range

0~200GU

Measurement Area (Spot)

9mm x 15mm

Minimum Measurement Size

57mm x 10mm

Accuracy

0~100GU: ±1.5GU, 100~200GU: ±1.5%

Repeatability

0~100GU: 0.2GU, 100~200GU: 0.2%

Package Contents (Standard Delivery)

  • Main unit (1 pc).

  • Base with integrated calibration block (1 pc).

  • USB flash disk (1 pc).

  • AC/DC power adapter (1 pc).

  • USB data cable (1 pc).

Datasheet Technical datasheet Catalog Full manufacturer catalog
Insize

Official distributor

Insize

INSIZE was founded in 1995 and is one of the world's leading manufacturers of measuring instruments and metrological equipment. With factories in China and other Asian countries, as well as production units in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability and reliability, while being distinguished by their excellent quality-price ratio.

This product belongs to the collection

Gloss Meters - Gloss Meters

You're viewing one product from this category. Browse the full range.

9 products
View all

Related categories

All categories →
Chemical Technology Heating Mantles7 products Magnetic Stirrers5 products Refractometers25 products Colorimeters16 products
Gloss Meter

From our Wiki

Gloss Meter

Gloss meters (gloss meters) are precision instruments used to measure the optical gloss of a surface. Their operation is based on directing a beam of light at a specific angle and measuring the amount of reflected light, accurately determining how “glossy” or “matte” a surface appears.

  • Measurement Angles: They feature standardized angles 20° (high gloss), 60° (medium) and 85° (matte), according to the ISO 2813 standard.
  • Applications: They are used in the paints, plastics, automotive, and furniture industries to ensure finish uniformity.
  • Features: They provide measurements in gloss units (GU), include internal memory, and offer automatic calibration via a standard tile.
