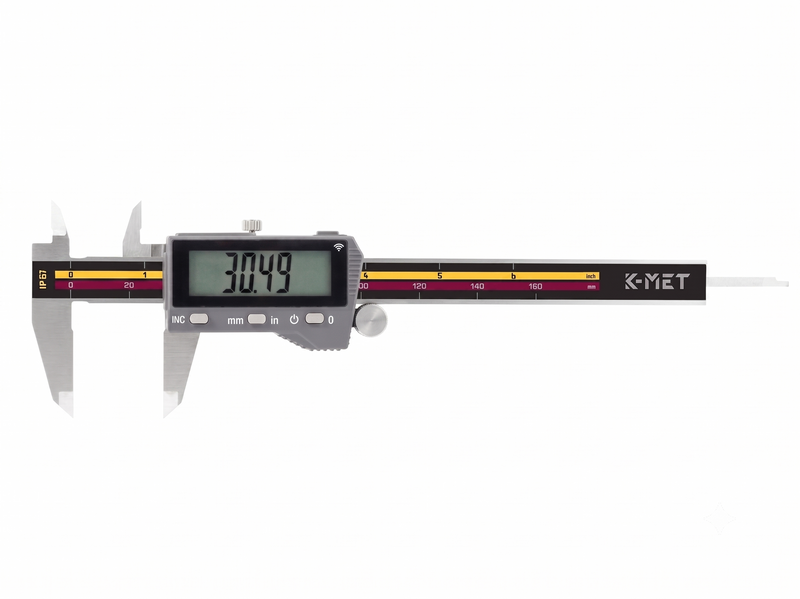

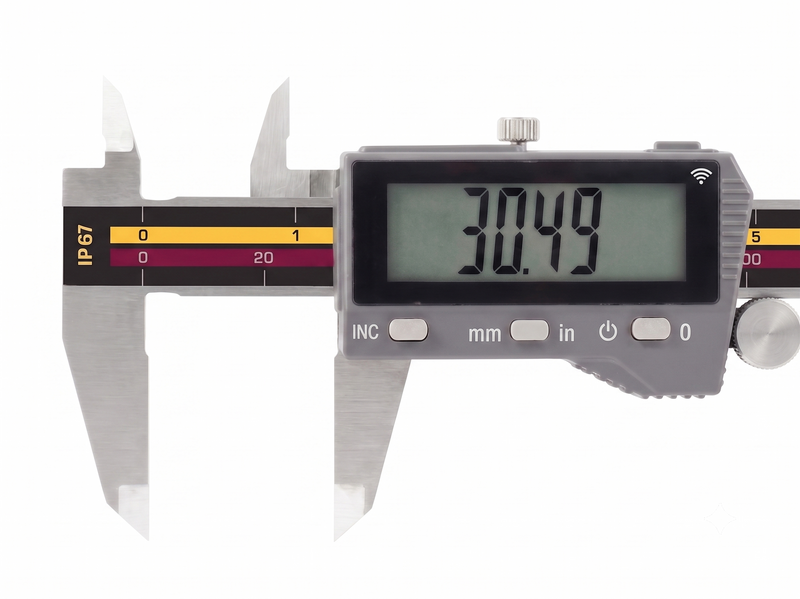

Professional digital caliper with inductive measuring system and wireless data transfer capability. Delivered with a measurement report.
Key Features
-
Waterproof and dust-protected, IP 67 rated.
-
Inductive measuring system, compliant with DIN 862 standard.
-
Integrated Bluetooth module (Requires a device with Bluetooth 5.0 or newer).
-
Automatic power-on by moving the DIGI unit and automatic power-off during inactivity.
-
Large, easy-to-read digital display with a function to store the last measured value.
-
Performance: Maximum movement speed 3.2 m/s.
IP Protection
IPXY
-
X = Protection against solid objects & access to hazardous parts
-
Y = Protection against water ingress
| Value | 1st Digit – Solids / Access | 2nd Digit – Water |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Protection against solids ≥50 mm (test probe Ø50 mm) | Vertical falling drops |
| 2 | Protection against solids ≥12.5 mm (test probe Ø12.5 mm) | Drops with tilt up to 15° |
| 3 | Protection against solids ≥2.5 mm (test probe Ø2.5 mm) | Spraying up to 60° |
| 4 | Protection against solids ≥1 mm (test probe Ø1 mm) | Splashing from all directions |
| 5 | Protection against dust (limited ingress without harmful effects) | Water jets (nozzle 6.3 mm) |
| 6 | Complete dust-tightness (dust-tight) | Powerful water jets (nozzle 12.5 mm) |
| 7 | — | Temporary immersion (usually 1 m / 30 min) |
| 8 | — | Continuous immersion (depth & time specified by manufacturer) |
| 9 / 9K | — | High-pressure & high-temperature water jets |
| Code | Range mm | Jaws mm | Availability | Price excl. VAT | Cart |
|---|---|---|---|---|---|
| 6041-97-150 | 0-150 | 40 | 1 available |
€113,00
|
|
| 6041-97-200 | 0-200 | 49 | On Order |
€189,00
|
|
| 6041-97-300 | 0-300 | 59 | On Order |
€239,00
|
