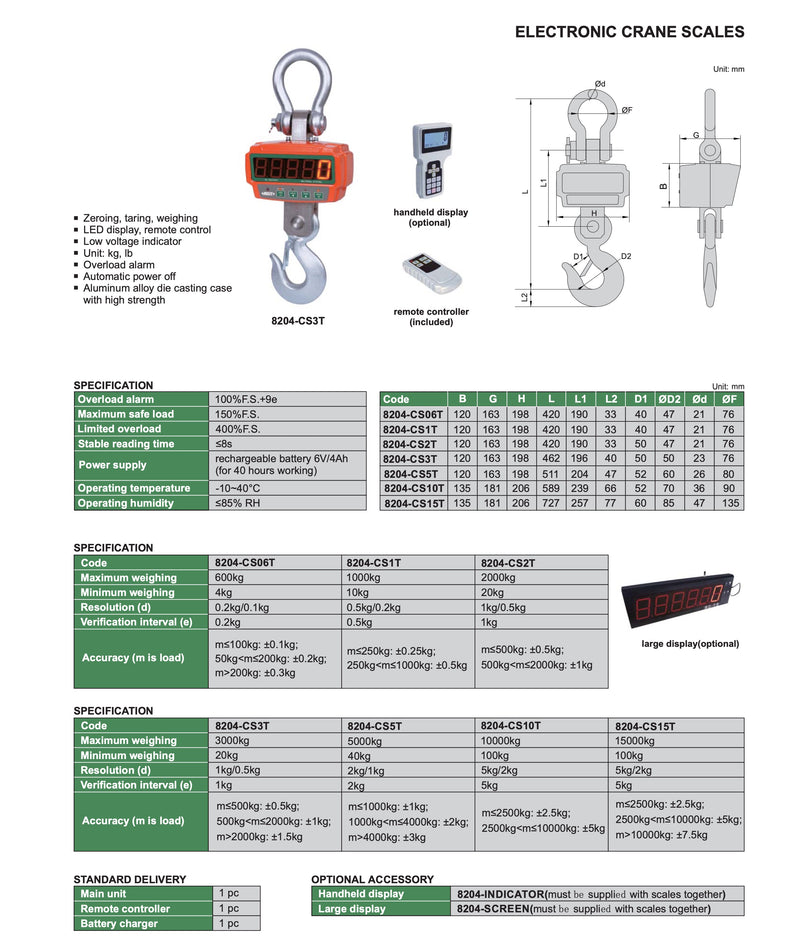

Common Specifications
- Overload alarm: 100% F.S.+9e
- Maximum safe load: 150% F.S.
- Limited overload: 400% F.S.
- Stable reading time: ≤8s
- Power supply: rechargeable battery 6V/4Ah (for 40 hours operation)
- Operating temperature: -10~40°C
- Operating humidity: ≤85% RH
Dimensions
| Code | B (mm) | G (mm) | H (mm) | L (mm) | L1 (mm) | L2 (mm) | D1 (mm) | D2 (mm) | d (mm) | ΦF (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 8204-CS06T | 120 | 163 | 198 | 420 | 190 | 33 | 40 | 47 | 21 | 76 |
| 8204-CS1T | 120 | 163 | 198 | 420 | 190 | 33 | 40 | 47 | 21 | 76 |
| 8204-CS2T | 120 | 163 | 198 | 420 | 190 | 33 | 50 | 47 | 21 | 76 |
| 8204-CS3T | 120 | 163 | 198 | 462 | 190 | 40 | 50 | 50 | 23 | 76 |
| 8204-CS5T | 120 | 163 | 198 | 511 | 204 | 47 | 52 | 50 | 26 | 80 |
| 8204-CS10T | 135 | 181 | 206 | 589 | 239 | 66 | 52 | 70 | 36 | 90 |
| 8204-CS15T | 135 | 181 | 206 | 727 | 257 | 77 | 60 | 85 | 47 | 135 |
Includes
| Includes | Quantity |
|---|---|
| Main unit | 1 pc. |
| Remote control | 1 pc. |
| Battery charger | 1 pc. |
Optional accessories
| Optional accessories | Code |
|---|---|
| Portable display | 8204-INDICATOR (must be purchased with the scales) |
| Large display | 8204-SCREEN (must be purchased with the scales) |
Product description

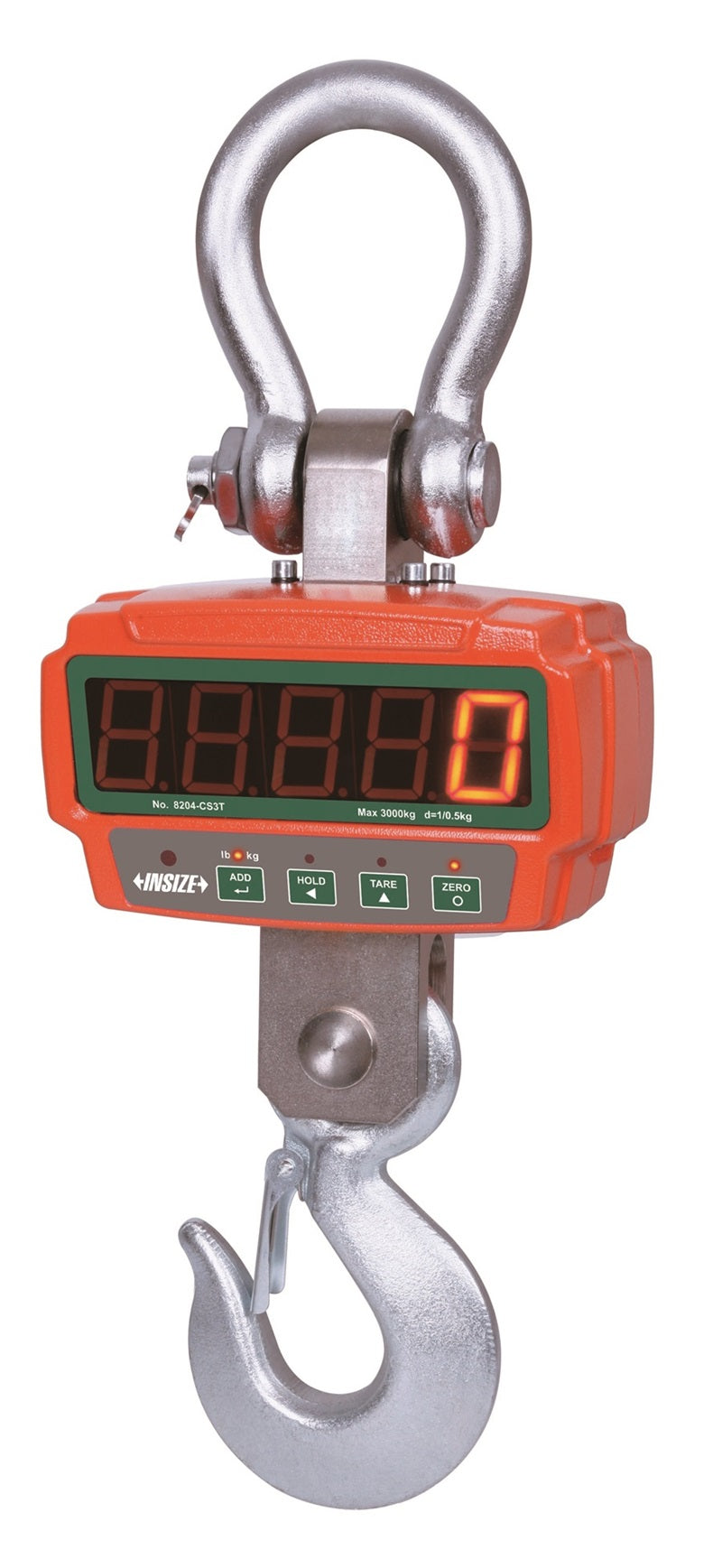

8204-CS06T: Electronic crane scale with maximum weighing capacity 600kg. Suitable for precise measurements in industrial environments.
8204-CS1T: Electronic crane scale with maximum weighing capacity 1000kg. Ideal for medium load weighing applications.
8204-CS2T: Electronic crane scale with maximum weighing capacity 2000kg. Designed for heavy industrial uses, providing accurate measurements at high loads.
8204-CS3T: Electronic crane scale with maximum weighing capacity 3000kg. Ideal for heavy-duty applications in industrial environments.
8204-CS5T: Electronic crane scale with maximum weighing capacity 5000kg. Suitable for industrial uses with large loads.
8204-CS10T: Electronic crane scale with maximum weighing capacity 10000kg. Designed for very heavy industrial uses.
8204-CS15T: Electronic crane scale with maximum weighing capacity 15000kg. Ideal for the most demanding industrial weighing applications.
2 Years Warranty
INSIZE Factory
INSIZE was founded in 1995 and is one of the world’s leading manufacturers of measuring instruments and metrology equipment.
With factories in China and other countries in Asia, as well as production facilities in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability, and reliability, while being distinguished by an excellent quality-to-price ratio.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of INSIZE in Greece since 2007. We have more than 1,500 INSIZE product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the Insize catalog which includes more than 40,000 different product codes.
In our store we provide technical support for all INSIZE products through trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
INSIZE Products
INSIZE offers a complete range of measuring instruments for industrial, machining and laboratory use, such as:
- Calipers and Micrometers
- Dial Indicators and Depth Gauges
- Bore Gauges, Telescopic Gauges, Vernier Height Gauges, as well as Measuring Rules
- Precision Levels, Squares, and Straightedges
- Surface Plates, Height Gauges, and Johansson Gauge Blocks
- Thread, Hole, and Shaft Gauges
- Hardness Testers, Roughness Testers, Ultrasonic Thickness Gauges and Coating Thickness Gauges
- Dynamometers, Tachometers, and Endoscopes
- CMM measuring systems, Profile Projectors, as well as Microscopes
All of its products meet European specifications, following various international quality and safety standards.
| SKU | Max Weight | Reading | Min | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|---|
| 8204-CS06T | 600 kg | 0.1 kg | 4 kg | On Order |
+VAT
€425,00
|
5-8 business days
|
|
| 8204-CS1T | 1000 kg | 0.2 kg | 10 kg |
5-8 business days
Αποθήκη Insize: 1 available. Estimated delivery 5–8 business days.
|
+VAT
€425,00
|
5-8 business days
|
|
| 8204-CS2T | 2 t | 0.5 kg | 20 kg | On Order |
+VAT
€425,00
|
5-8 business days
|
|
| 8204-CS3T | 3 t | 0.5 kg | 20 kg |
2 available
Αποθήκη Insize: 5 available. Estimated delivery 5–8 business days.
|
+VAT
€425,00
|
5-8 business days
|
|
| 8204-CS5T | 5 t | 1 kg | 40 kg |
8 available
Αποθήκη Insize: 4 available. Estimated delivery 5–8 business days.
|
+VAT
€525,00
|
5-8 business days
|
|
| 8204-CS10T | 10 t | 2 kg | 100 kg |
4 available
Αποθήκη Insize: 5 available. Estimated delivery 5–8 business days.
|
+VAT
€776,00
|
5-8 business days
|
|
| 8204-CS15T | 15 t | 2 kg | 100 kg |
1 available
Αποθήκη Insize: 1 available. Estimated delivery 5–8 business days.
|
+VAT
€1.504,00
|
5-8 business days
|
