CODEA054
CODEA054
Crane Scale Key Bolt Type A054
- Manufacturer: CARFER
- Series/Type: A054, bow shackle with bolt
- Material: high tensile steel alloy
- Marking: CE
- Working load (WLL): 0.5 t to 120 t
- Size (inches): 1/4" to 3 1/2"

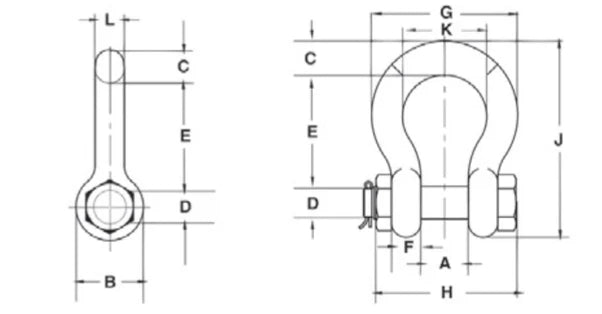

- Dimensions (mm): A 11.9–133.3 mm, B 6.4–91.9 mm, C 28.7–371.6 mm, D 7.9–95.3 mm, E 19.8–228.6 mm, F 16–203 mm, G 6–92.2 mm
- Weight: 0.05 to 120.3 kg
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
Availability & price
19 codes

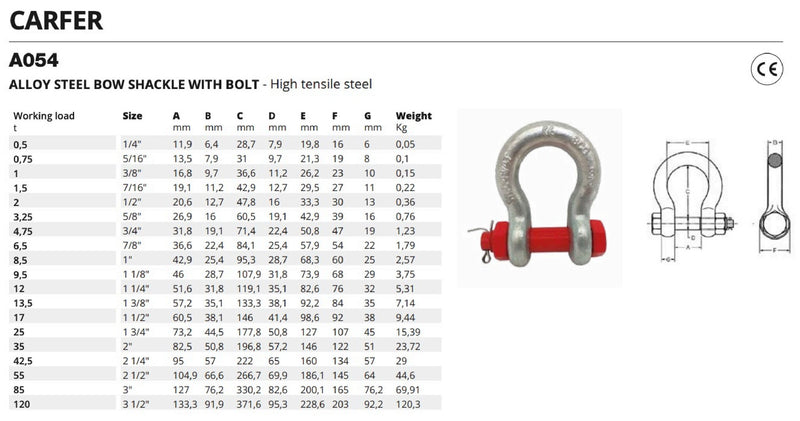

| Code | Max Weight (kg) | A (mm) | D (mm) | Availability | excl. VAT | incl. VAT | Cart |
|---|---|---|---|---|---|---|---|
| A054-0.5 | 500 | 11.9 | 7.9 | Upon Request |
Request a Quote
|
—
|
|
| A054-0.75 | 750 | 13.5 | 9.7 | Upon Request |
Request a Quote
|
—
|
|
| A054-1 | 1000 | 16.8 | 11.2 | Upon Request |
Request a Quote
|
—
|
|
| A054-1.5 | 1500 | 19.1 | 12.7 | Upon Request |
Request a Quote
|
—
|
|
| A054-2 | 2000 | 20.6 | 16 | Upon Request |
Request a Quote
|
—
|
|
| A054-3.25 | 3250 | 26.9 | 19.1 | Upon Request |
Request a Quote
|
—
|
|
| A054-4.75 | 4750 | 31.8 | 22.4 | 2 in stock |
€12,80
|
€15,87
|
|
| A054-6.5 | 6500 | 36.6 | 25.4 | 2 in stock |
€19,20
|
€23,81
|
|
| A054-8.5 | 8500 | 42.9 | 28.7 | Upon Request |
Request a Quote
|
—
|
|
| A054-9.5 | 9500 | 46 | 31.8 | Upon Request |
Request a Quote
|
—
|
|
| A054-12 | 12000 | 51.6 | 35.1 | 2 in stock |
€44,90
|
€55,68
|
|
| A054-13.5 | 13500 | 57.2 | 38.1 | Upon Request |
Request a Quote
|
—
|
|
| A054-17 | 17000 | 60.5 | 41.4 | Upon Request |
Request a Quote
|
—
|
|
| A054-25 | 25000 | 73.2 | 50.8 | Upon Request |
Request a Quote
|
—
|
|
| A054-35 | 35000 | 82.5 | 57.2 | Upon Request |
Request a Quote
|
—
|
|
| A054-42.5 | 42500 | 95 | 65 | Upon Request |
Request a Quote
|
—
|
|
| A054-55 | 55000 | 104.9 | 69.9 | Upon Request |
Request a Quote
|
—
|
|
| A054-85 | 85000 | 127 | 82.6 | Upon Request |
Request a Quote
|
—
|
|
| A054-120 | 120000 | 133.3 | 95.3 | Upon Request |
Request a Quote
|
—
|
Technical Specifications
- Manufacturer: CARFER
- Series/Type: A054, bow shackle with bolt
- Material: high tensile steel alloy
- Marking: CE
- Working load (WLL): 0.5 t to 120 t
- Size (inches): 1/4" to 3 1/2"
- Dimensions (mm): A 11.9–133.3 mm, B 6.4–91.9 mm, C 28.7–371.6 mm, D 7.9–95.3 mm, E 19.8–228.6 mm, F 16–203 mm, G 6–92.2 mm
- Weight: 0.05 to 120.3 kg
Description
The CARFER A054 is a bow shackle made of high tensile steel alloy, with a bolt, for connections in lifting and rigging work. It is used to connect slings, wire ropes, chains and lifting components, offering WLL options from 0.5 t to 120 t depending on the size.
