CMM
Insize CMM articulated measuring arm, black with green details and touch probe at the base

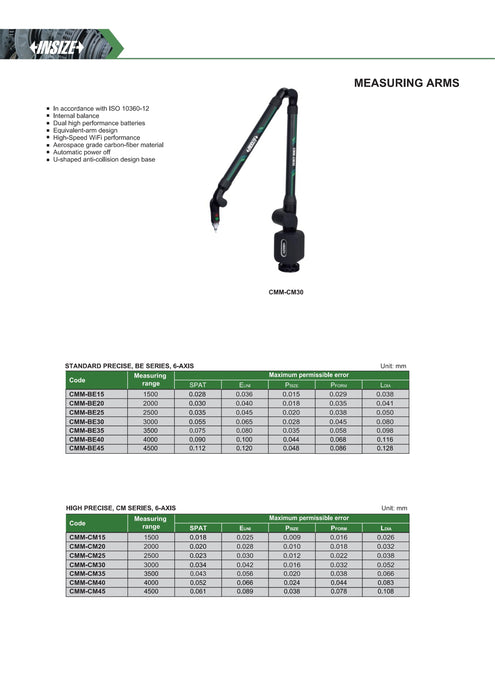

Technical specifications CMM - CMM Measuring Arm (p. 1)

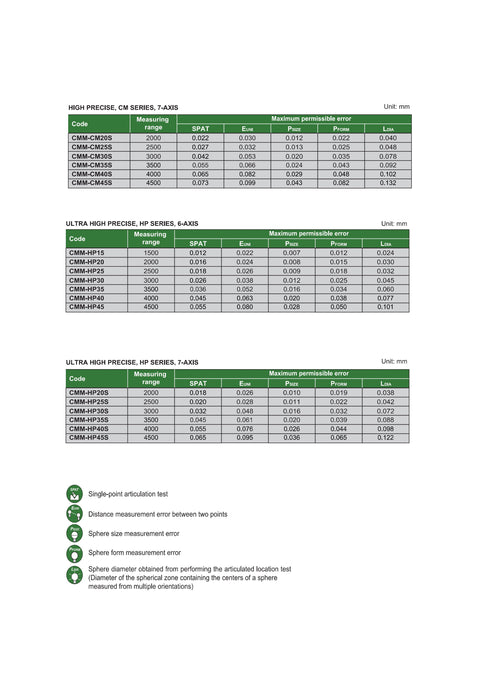

Technical specifications CMM - CMM Measuring Arm (p. 2)

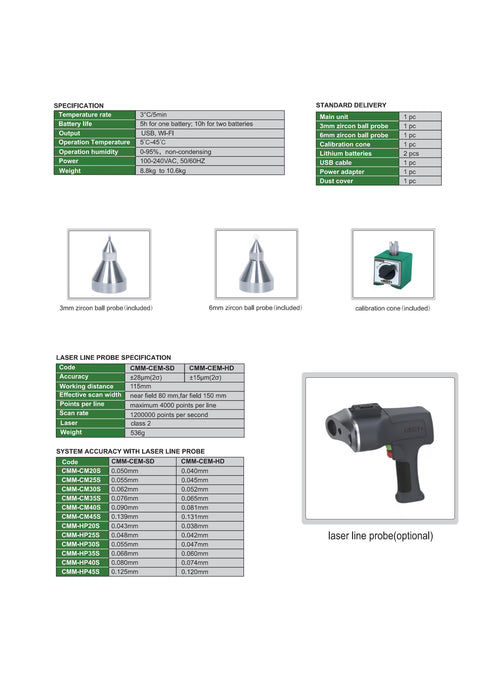

Technical specifications CMM - CMM Measuring Arm (p. 3)

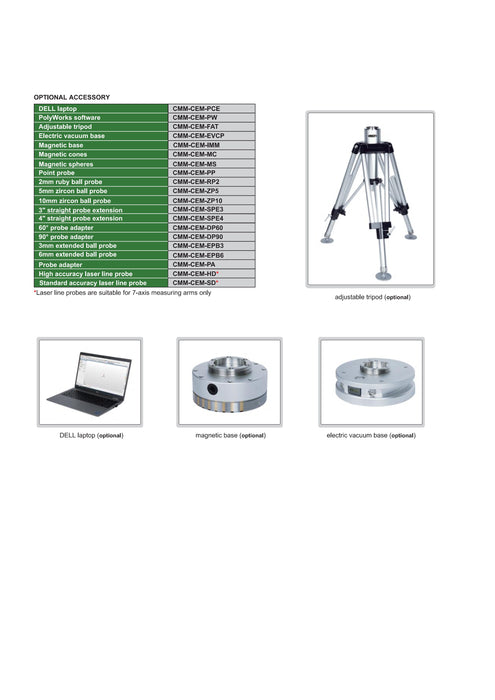

Technical specifications CMM - CMM Measuring Arm (p. 4)
Insize CMM articulated measuring arm, black with green details and touch probe at the base
Technical specifications CMM - CMM Measuring Arm (p. 1)
Technical specifications CMM - CMM Measuring Arm (p. 2)
Technical specifications CMM - CMM Measuring Arm (p. 3)
Technical specifications CMM - CMM Measuring Arm (p. 4)

Availability & price

33 codes

Code Series Length Axis Availability excl. VATincl. VAT Cart
CMM-BE15 BE 1500 6-AXIS Upon Request
€32.271,00
€40.016,04
0
CMM-BE20 BE 2000 6-AXIS Upon Request
€36.293,00
€45.003,32
0
CMM-BE25 BE 2500 6-AXIS Upon Request
€40.312,00
€49.986,88
0
CMM-BE30 BE 3000 6-AXIS Upon Request
€44.367,00
€55.015,08
0
CMM-BE35 BE 3500 6-AXIS Upon Request
€48.389,00
€60.002,36
0
CMM-BE40 BE 4000 6-AXIS Upon Request
€52.444,00
€65.030,56
0
CMM-BE45 BE 4500 6-AXIS Upon Request
€56.465,00
€70.016,60
0
CMM-CM15 CM 6 1500 6-AXIS Upon Request
€40.312,00
€49.986,88
0
CMM-CM20 CM 6 2000 6-AXIS Upon Request
€44.333,00
€54.972,92
0
CMM-CM30 CM 6 3000 6-AXIS Upon Request
€52.410,00
€64.988,40
0
CMM-CM35 CM 6 3500 6-AXIS Upon Request
€56.432,00
€69.975,68
0
CMM-CM40 CM 6 4000 6-AXIS Upon Request
€60.486,00
€75.002,64
0
CMM-CM45 CM 6 4500 6-AXIS Upon Request
€64.506,00
€79.987,44
0
CMM-HP15 HP 6 1500 6-AXIS Upon Request
€42.469,00
€52.661,56
0
CMM-HP20 HP 6 2000 6-AXIS Upon Request
€46.154,00
€57.230,96
0
CMM-HP25 HP 6 2500 6-AXIS Upon Request
€49.838,00
€61.799,12
0
CMM-HP30 HP 6 3000 6-AXIS Upon Request
€53.523,00
€66.368,52
0
CMM-HP35 HP 6 3500 6-AXIS Upon Request
€55.365,00
€68.652,60
0
CMM-HP40 HP 6 4000 6-AXIS Upon Request
€59.049,00
€73.220,76
0
CMM-HP45 HP 6 4500 6-AXIS Upon Request
€62.734,00
€77.790,16
0
CMM-CM20S CM 7 2000 7-AXIS Upon Request
€46.345,00
€57.467,80
0
CMM-CM25S CM 7 2500 7-AXIS Upon Request
€50.366,00
€62.453,84
0
CMM-CM30S CM 7 3000 7-AXIS Upon Request
€54.421,00
€67.482,04
0
CMM-CM35S CM 7 3500 7-AXIS Upon Request
€58.442,00
€72.468,08
0
CMM-CM40S CM 7 4000 7-AXIS Upon Request
€62.497,00
€77.496,28
0
CMM-CM45S CM 7 4500 7-AXIS Upon Request
€66.517,00
€82.481,08
0
CMM-HP20S HP 7 2000 7-AXIS Upon Request
€47.996,00
€59.515,04
0
CMM-HP25S HP 7 2500 7-AXIS Upon Request
€51.680,00
€64.083,20
0
CMM-HP30S HP 7 3000 7-AXIS Upon Request
€55.365,00
€68.652,60
0
CMM-HP35S HP 7 3500 7-AXIS Upon Request
€57.206,00
€70.935,44
0
CMM-HP40S HP 7 4000 7-AXIS Upon Request
€60.892,00
€75.506,08
0
CMM-HP45S HP 7 4500 7-AXIS Upon Request
€64.575,00
€80.073,00
0
CMM-CM25 CM 2500 6-AXIS Upon Request
€48.356,00
€59.961,44
0

Specifications

  • Axes: 6 or 7 axes depending on the model
  • Material: Aerospace-grade carbon fiber
  • Power Supply: Dual rechargeable lithium batteries, 5h per battery
  • Output: USB, Wi-Fi
  • Operating Temperature: 5°C to 45°C
  • Operating Humidity: 0–95%, non-condensing
  • Power: 100–240VAC, 50/60Hz
  • Weight: 8.8kg to 10.6kg
  • Optional Accessories: Various zirconia ball probes, extensions, probe adapters, magnetic/electric bases, tripod, laser scanner, software
  • Maximum Permissible Error (depending on model): SPAT up to 0.012mm, EUNI up to 0.022mm, PSIZE up to 0.007mm, PFORM up to 0.012mm, LDIA up to 0.024mm
  • Laser Scanning Specs: Accuracy up to ±15μm, scan rate 1,200,000 points/sec

Description

INSIZE measuring arms are portable measurement tools used for high-precision 3D dimensional inspection. They are suitable for quality control, part verification, and digital scanning in industrial environments. They support contact probing and laser scanning, offering flexible positioning and mobility through articulated joints.

Datasheet Technical datasheet Manual User manual Series Leaflet Catalogue for this product range Catalog Full manufacturer catalog
Insize

Official distributor

Insize

INSIZE was founded in 1995 and is one of the world's leading manufacturers of measuring instruments and metrological equipment. With factories in China and other Asian countries, as well as production units in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability and reliability, while being distinguished by their excellent quality-price ratio.
