CODEEEPM-CIRS
CODEEEPM-CIRS

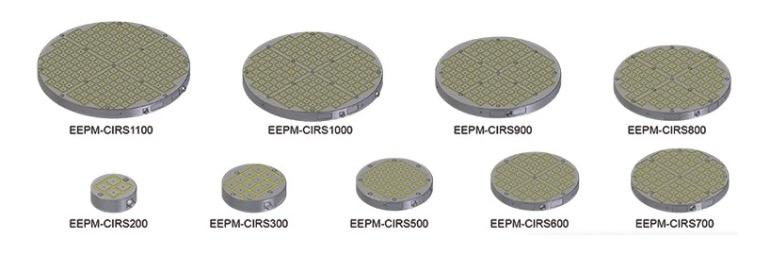

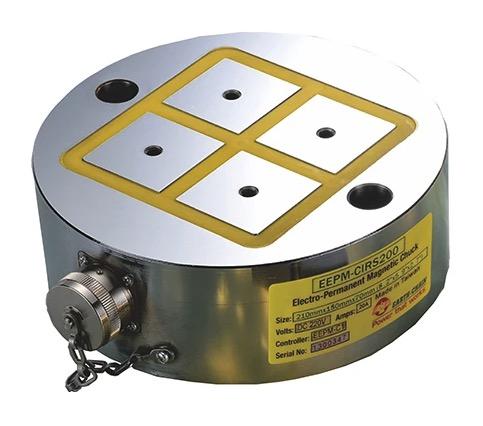

Electro-Permanent Magnetic Chuck
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
Availability & price
10 codes
| Code | Diameter | Availability | excl. VAT | incl. VAT | Cart |
|---|---|---|---|---|---|
| EEPM-CIRS150A | Ø150x50 | On Order |
€1.377,00
|
€1.707,48
|
|
| EEPM-CIRS200A | Ø200x50 | On Order |
€2.037,00
|
€2.525,88
|
|
| EEPM-CIRS250A | Ø250x50 | On Order |
€2.157,00
|
€2.674,68
|
|
| EEPM-CIRS300A | Ø300x50 | On Order |
€2.482,00
|
€3.077,68
|
|
| EEPM-CIRS350A | Ø350x50 | On Order |
€3.555,00
|
€4.408,20
|
|
| EEPM-CIRS400A | Ø400x50 | On Order |
€4.042,00
|
€5.012,08
|
|
| EEPM-CIRS450A | Ø450x50 | On Order |
€5.275,00
|
€6.541,00
|
|
| EEPM-CIRS500A | Ø500x50 | On Order |
€5.510,00
|
€6.832,40
|
|
| EEPM-CIRS550A | Ø550x50 | On Order |
€6.879,00
|
€8.529,96
|
|
| EEPM-CIRS600A | Ø600x50 | On Order |
€8.855,00
|
€10.980,20
|
- 1~10 seconds control for power ON & OFF. No electric power supply required to keep the magnetic chuck ON, cable can be removed for turning chuck freely while machining.

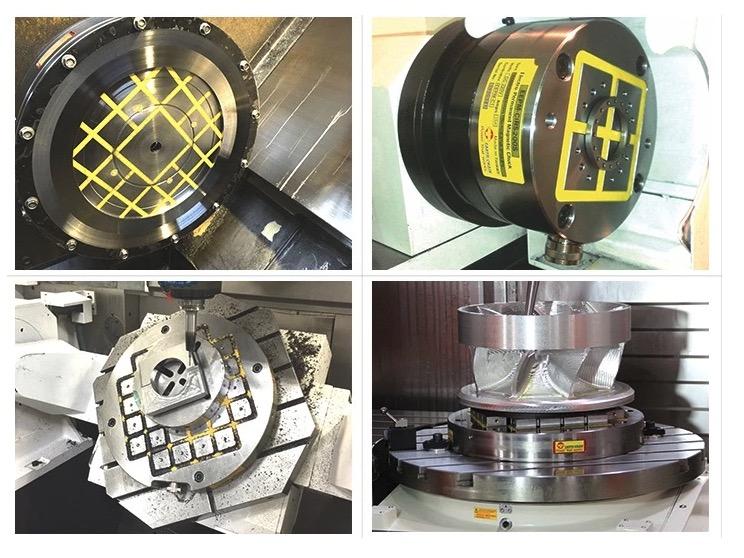

- Unobstructed movement of cutters during machining, the real function of 5-side machining on workholding.
Applications

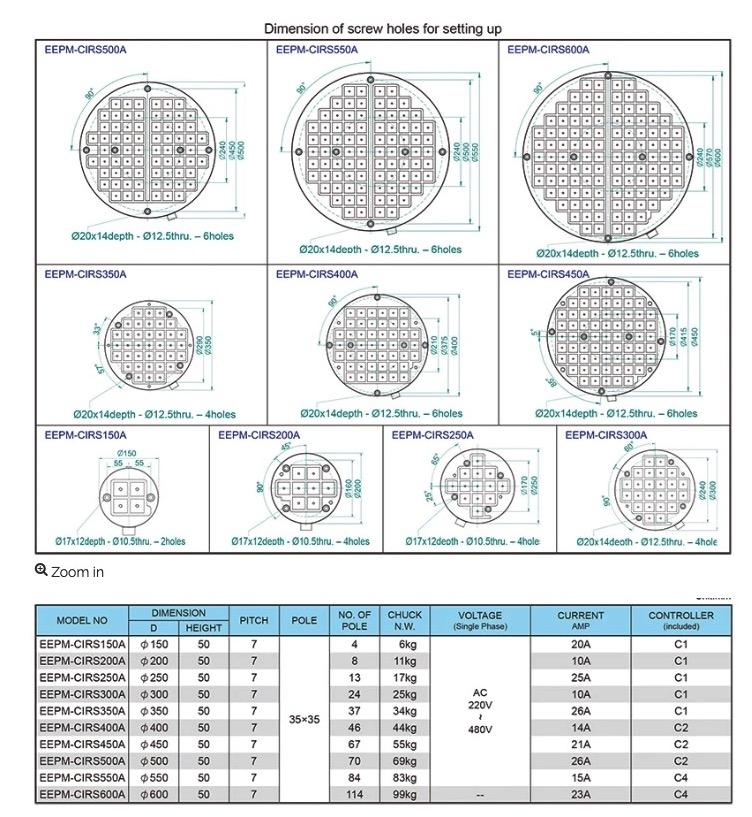

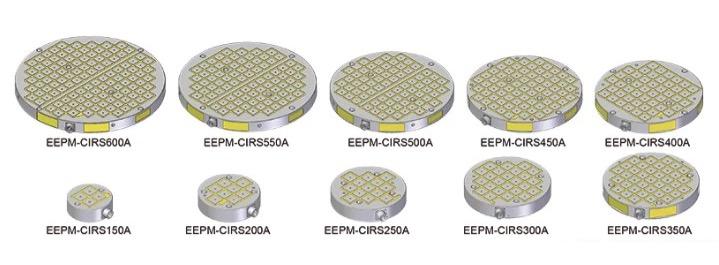

- EEPM-CIRSA: Suitable for thin & small workpieces. (Pole Size 35X35 mm, Magnetic Force 580 kgf/4 Poles).

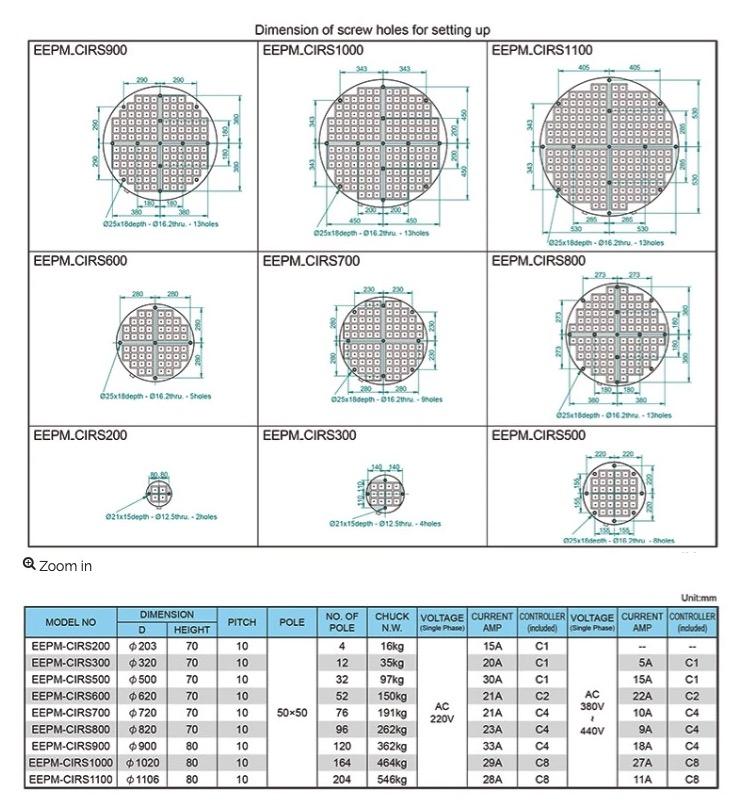

- EEPM-CIRS: Suitable for thin & medium workpieces. (Pole Size 50X50 mm, Magnetic Force 1250 kgf/4 Poles).
- Minimum workpiece size required is 4 alternate magnetic square poles and above contacts for optimum clamping.
- More functions to cooperate with Induction Block and Spring Block. (See the details of Option Accessories).
