Magnetic Chucks for Grinding & Machining
Electro-Permanent Magnetic Chuck Type D Poles 70x70 mm
Technical specifications EEPM-D - Electro-Permanent Magnetic Chuck Type D Poles 70x70 mm (p. 1)
Technical specifications EEPM-D - Electro-Permanent Magnetic Chuck Type D Poles 70x70 mm (p. 2)
Technical specifications EEPM-D - Electro-Permanent Magnetic Chuck Type D Poles 70x70 mm (p. 3)

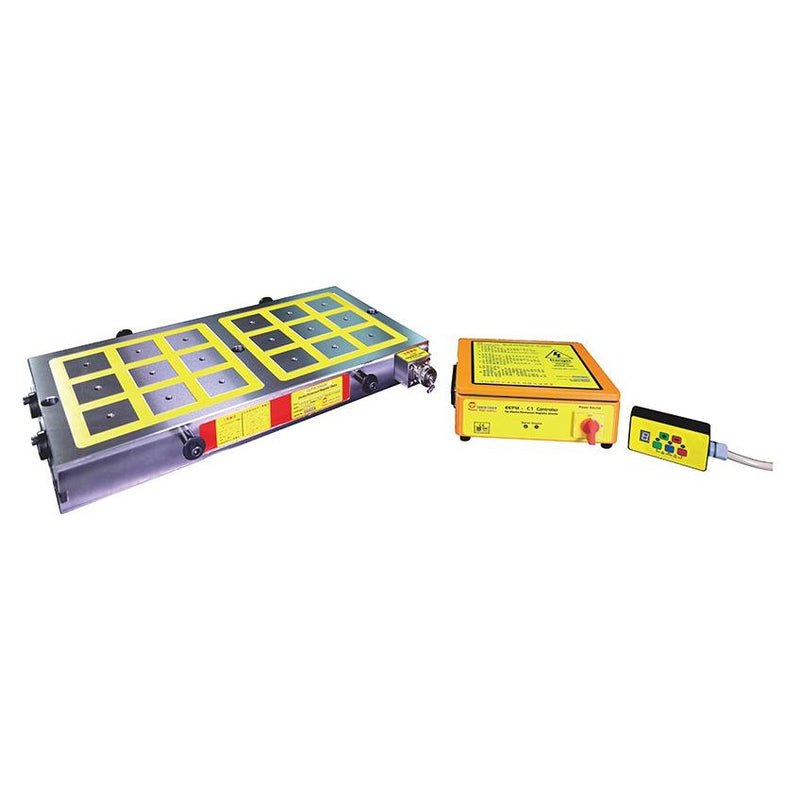

Ece EEPM-D 70x70 mm electro-permanent magnetic chuck with yellow pole surface and control unit
Ece EEPM-D magnetic chuck in use on a milling/CNC machine, yellow pole surface with metal workpiece being machined
Electro-Permanent Magnetic Chuck Type D Poles 70x70 mm
Technical specifications EEPM-D - Electro-Permanent Magnetic Chuck Type D Poles 70x70 mm (p. 1)
Technical specifications EEPM-D - Electro-Permanent Magnetic Chuck Type D Poles 70x70 mm (p. 2)
Technical specifications EEPM-D - Electro-Permanent Magnetic Chuck Type D Poles 70x70 mm (p. 3)
Ece EEPM-D 70x70 mm electro-permanent magnetic chuck with yellow pole surface and control unit
Ece EEPM-D magnetic chuck in use on a milling/CNC machine, yellow pole surface with metal workpiece being machined

Availability & price

9 codes

Code Dimensions (mm) Controller Availability excl. VATincl. VAT Cart
EEPM-3060D 340 x 670 C2 Upon Request
€5.059,00
€6.273,16
0
EEPM-4050D 430 x 530 C2 Upon Request
€5.235,00
€6.491,40
0
EEPM-4060D 430 x 670 C2 Upon Request
€6.163,00
€7.642,12
0
EEPM-4080D 430 x 850 C4 Upon Request
€7.879,00
€9.769,96
0
EEPM-5060D 520 x 670 C2 Upon Request
€7.522,00
€9.327,28
0
EEPM-5080D 520 x 850 C4 Upon Request
€9.946,00
€12.333,04
0
EEPM-6060D 660 x 670 C4 Upon Request
€8.996,00
€11.155,04
0
EEPM-6080D 660 x 850 C4 Upon Request
Request a Quote
—
EEPM-8080D 840 x 850 C8 Upon Request
Request a Quote
—

Request a quote

This code is priced on request. Send us your request and we will reply with a price and delivery time.

Or call us: 210 2231624 · info@organametrisis.gr

Description

Pole 70X70 mm, Flux Line 40 mm, Magnetic Force 2800±5% kgf/4 Poles


Applications

  1. Suitable for medium and large workpieces in heavy-duty machining.
  2. Suitable for medium and double-column machining centers.
  3. Minimum workpiece size required is 4 alternate magnetic square poles and above contacts for optimum clamping.
  4. More functions to cooperate with Induction Block and Spring Block. (See the details of Option Accessories
