Magnetic Chucks for Grinding & Machining
Electro-Permanent Magnetic Chuck Type E Poles 92x92 mm
Technical specifications EEPM-E - Electro-Permanent Magnetic Chuck Type E Poles 92x92 mm (p. 1)
Technical specifications EEPM-E - Electro-Permanent Magnetic Chuck Type E Poles 92x92 mm (p. 2)
Technical specifications EEPM-E - Electro-Permanent Magnetic Chuck Type E Poles 92x92 mm (p. 3)

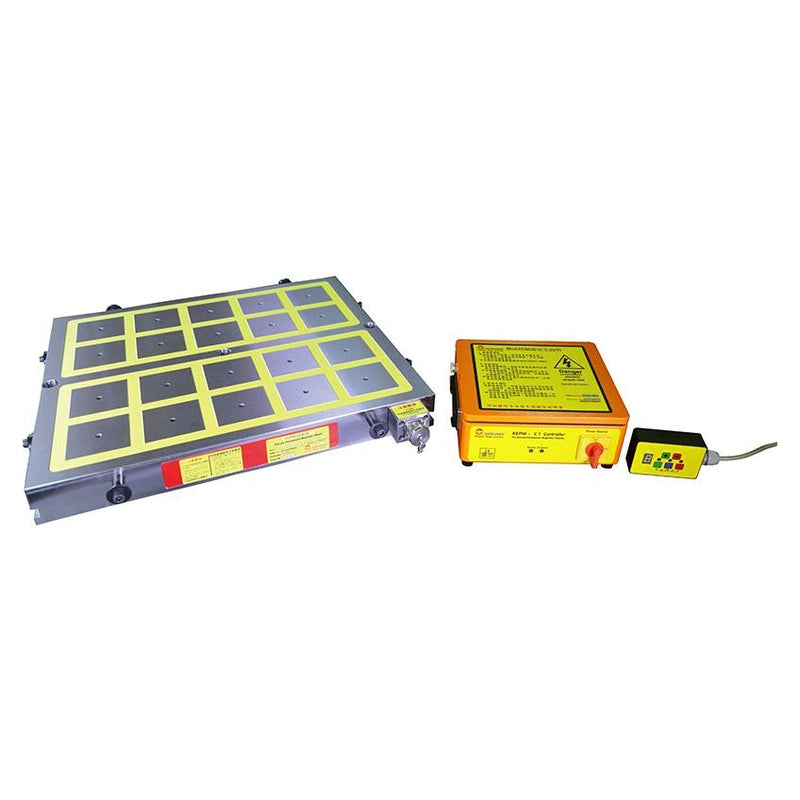

Ece Type E 92x92 mm electro-permanent magnetic chuck with control unit and remote control, EEPM-E
Ece EEPM-E magnetic chuck on a CNC machine, with red base and metal workpiece being machined on it
Electro-Permanent Magnetic Chuck Type E Poles 92x92 mm
Technical specifications EEPM-E - Electro-Permanent Magnetic Chuck Type E Poles 92x92 mm (p. 1)
Technical specifications EEPM-E - Electro-Permanent Magnetic Chuck Type E Poles 92x92 mm (p. 2)
Technical specifications EEPM-E - Electro-Permanent Magnetic Chuck Type E Poles 92x92 mm (p. 3)
Ece Type E 92x92 mm electro-permanent magnetic chuck with control unit and remote control, EEPM-E
Ece EEPM-E magnetic chuck on a CNC machine, with red base and metal workpiece being machined on it

Availability & price

6 codes

Code Dimensions (mm) Availability excl. VATincl. VAT Cart
EEPM-6060E 565 x 640 Upon Request
€8.583,00
€10.642,92
0
EEPM-60100E 565 x 1025 Upon Request
Request a Quote
—
EEPM-60120E 565 x 1250 Upon Request
Request a Quote
—
EEPM-8080E 790 x 800 Upon Request
Request a Quote
—
EEPM-80100E 790 x 1025 Upon Request
Request a Quote
—
EEPM-80120E 790 x 1250 Upon Request
Request a Quote
—

Request a quote

This code is priced on request. Send us your request and we will reply with a price and delivery time.

Or call us: 210 2231624 · info@organametrisis.gr

Description

Pole 92X92 mm, Flux Line 50 mm, Magnetic Force 4800±5% kgf/4 Poles


Applications

  1. Suitable for large and high-thickness workpiece
  2. Minimum workpiece size required is 4 alternate magnetic square poles and above contacts for optimum clamping.
  3. More functions for cooperate with Induction Block and Spring Block. (See the detail of Option Accessories)
