Sheet Metal Lifting Magnet
| Κωδικός | Τιμή | Στοκ | |
|---|---|---|---|
| GP250 | €788,00 | Κατόπιν Παραγγελίας |
Description:

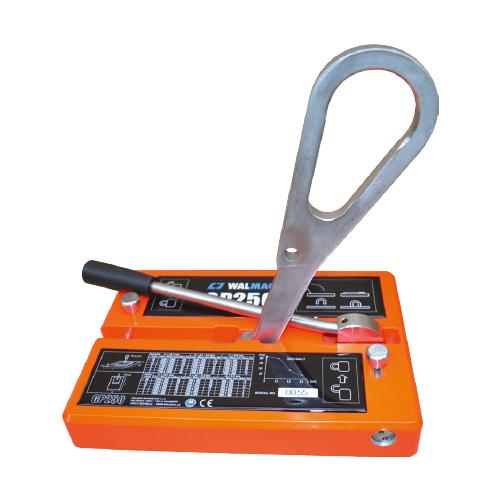

The crane's permanent magnet allows sheets and steel plates to be easily lifted and handled from horizontal to vertical and vice versa. A big advantage of this crane magnet is its large lifting eye, which can be locked in a vertical position. Due to this, the user has the ability to handle flat loads safely in both positions, making working with loads much easier.
Parameters:
- Application: Lifting
- Technology: Permanent
- Horizontal weight limit: 250 kg
- Vertical weight limit: 80 kg
- Dimensions: 288 x 200 x 40 mm
- Temperature: maximum 80 ºC
- Safety factor: 4:1
Use:
- Strong magnet designed for hanging from a crane hook
- Handling of loads from horizontal to vertical position and vice versa
- Handling sheet metal from stack, from material thickness 4 mm

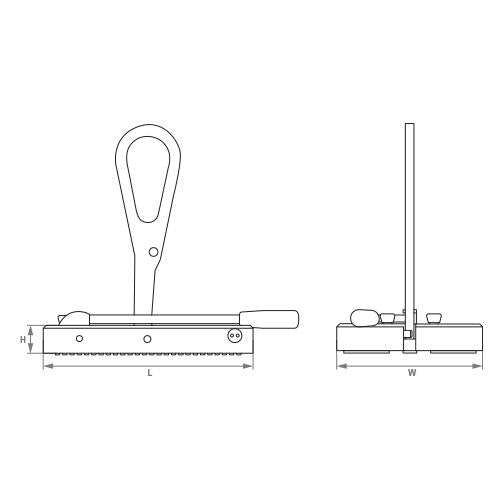

| Model | W (mm) | L (mm) | H (mm) | Horizontal limit (kg) | Vertical limit (kg) | Weight (mm) | Tested break away force (kg) |
|---|---|---|---|---|---|---|---|
| GP250 | 200 | 288 | 40 | 250 | 80 | 9.75 | 1100 |
Package Contents:
- Magnet
- Manual

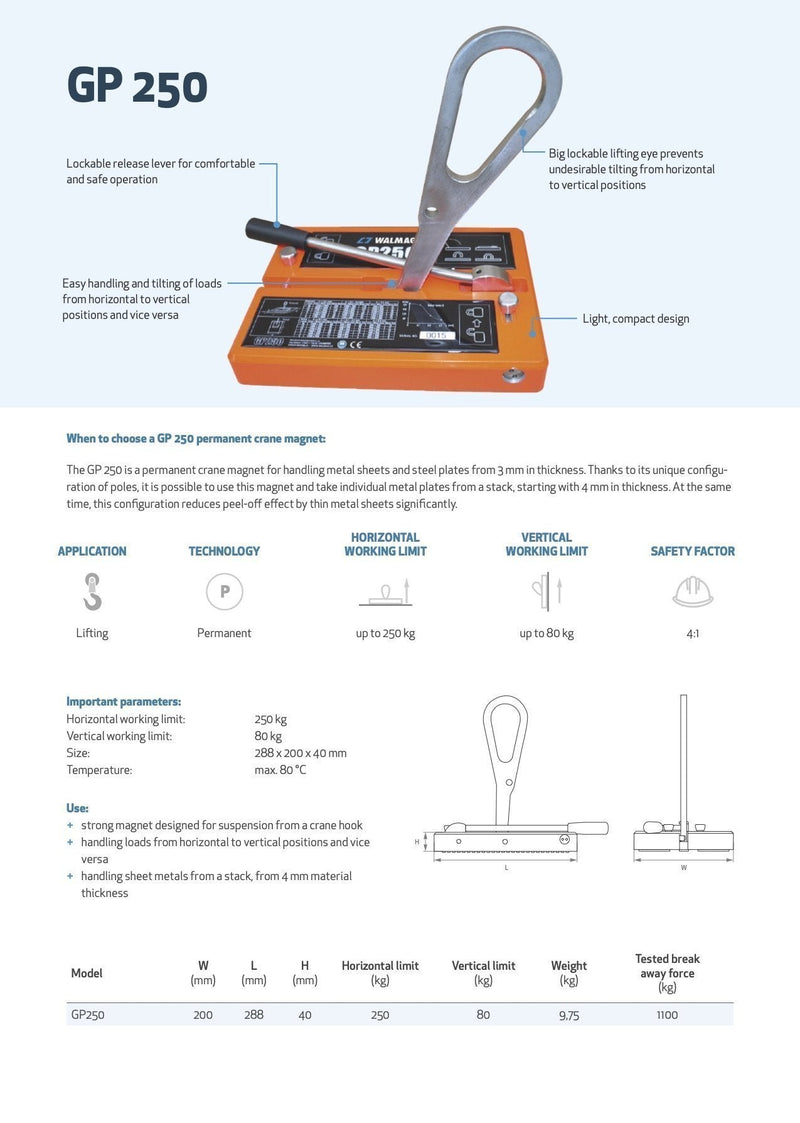

When to choose a GP 250 Crane Permanent Magnet:

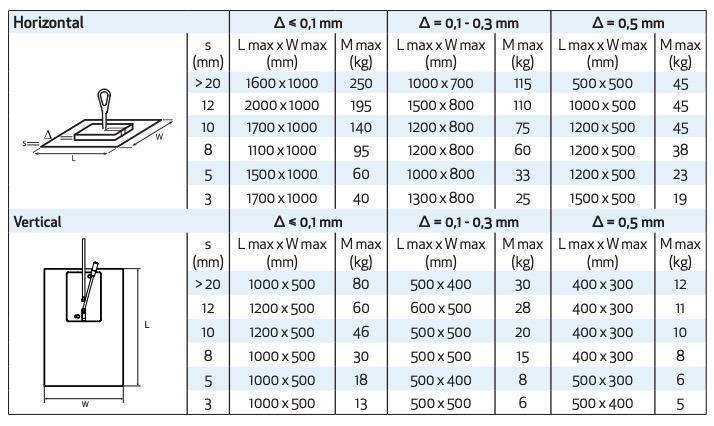

The GP 250 is a permanent magnet crane for handling 3 mm thick sheet metal and steel plates. Loads up to 250 kg can be transported horizontally, up to 80 kg vertically. Thanks to its unique pole configuration, it is possible to use this magnet and pick up individual metal plates from a stack, starting with a thickness of 4 mm. At the same time, this configuration significantly reduces the phenomenon of detachment from thin metal sheets. The magnet complies with a 4:1 safety factor.

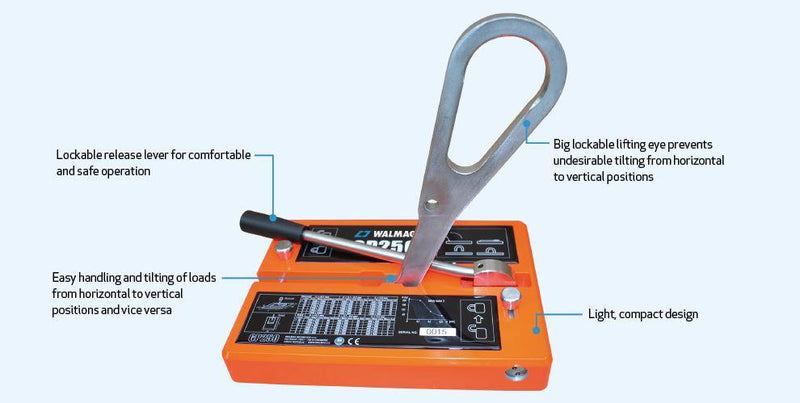

Advantages:
- The first magnetic claw of its kind to comply with the UNI EN 13155 standard for crane handling
- Easy handling and tilting of loads from horizontal to vertical position and vice versa
- Large locking lifting eye prevents unwanted tilting from horizontal to vertical position
- Locking release lever for convenient and safe operation
- The unique pole configuration reduces the peeling effect for thin sheets during handling
- Thanks to its low magnetic field, single sheets of 3 mm thickness can be handled
- Lightweight, compact design
