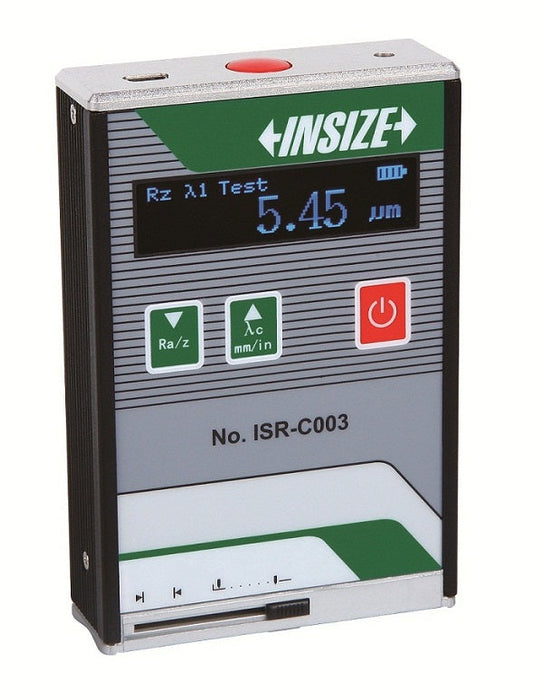

ISR-C003 - Portable roughness tester
by Insize
| Κωδικός | Τιμή ** | Στοκ | |
|---|---|---|---|
| ISR-C003 | €1.014,00 | 1 διαθέσιμo |
Τιμές χωρίς ΦΠΑ 24%
- Units: µm, min
- Automatic shutdown
- Parameters: Ra, Rz, Rq, Rt
- Measuring range:
- Ra, Rq: 0.05~15μm
- Rz, Rt: 0.1~50μm
- Accuracy: ±10%
- Readout: 0.01 µm
- Sensor:
- Type: piezoelectric
- Radius/ angle: 10μm / 90º
- Material: Diamond
- Measuring force: 5mN
- Stroke length: 0.25, 0.8, 2.5 mm
- Number of regions with selection:
- 1.25mm for 0.25mm cut-off
- 4mm for cut-off 0.8mm
- 5mm for 2.5mm cut-off
-
Transverse speed: 0.75 mm/s
- Power supply: built-in rechargeable battery
- Dimensions: 106 x 70 x 24 mm
- Weight: 200g
