Technical Specifications
-
Length: From 315 mm to 1137 mm.
-
Right-hand operation only
-
Double display window with an easy-to-read scale.
-
Non-slip handle.
-
Push-pull locking system for easy head change.
-
Compatible with DIN ISO 6789 and ASME B107.300.
-
Torque correction is necessary when the head length L2 changes.
Description
Torque wrenches with interchangeable heads and analog torque adjustment for clockwise use. They feature a double display window for easy reading, a non-slip handle, and a push-pull locking mechanism. Suitable for a wide range of applications with the option to select different heads and torques up to 850 N·m. Torque value correction is required when the head length changes.
| Code | Width | Reading | Square drive | Availability | Price excl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|
| IST-29WM25 | 5~25N.m | 0.2N.m | 12x9mm | On Order |
€159,00
|
||
| IST-29WM50 | 10~50N.m | 0.5N.m | 12x9mm |
€163,00
|
|||
| IST-29WM60 | 10~60N.m | 0.5N.m | 12x9mm |
€163,00
|
|||
| IST-29WM100 | 20~100N.m | 0.5N.m | 12x9mm | On Order |
€186,00
|
||
| IST-29WM150 | 30~150N.m | 1N.m | 18x14mm | On Order |
€243,00
|
||
| IST-29WM200 | 40~200N.m | 1N.m | 18x14mm | On Order |
€246,00
|
||
| IST-29WM300 | 60~300N.m | 1.5N.m | 18x14mm | On Order |
€314,00
|
||
| IST-29WM400 | 80~400N.m | 2N.m | 18x14mm | On Order |
€481,00
|
||
| IST-29WM550 | 100~550N.m | 3N.m | 32x24mm |
€599,00
|
|||
| IST-29WM750 | 150~750N.m | 5N.m | 32x24mm | On Order |
€728,00
|
||
| IST-29WM850 | 200~850N.m | 5N.m | 32x24mm |
€889,00
|

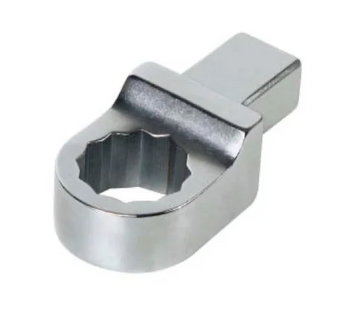

Socket for torque wrench
Specifications Type: Interchangeable head torque wrench system Operation: clockwise operation only Construction: all-metal, sturdy and durab...
View full details

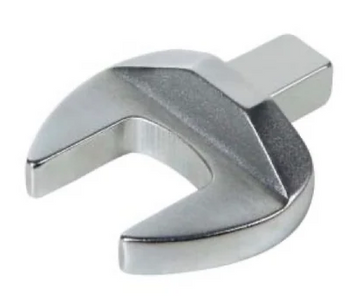

German Wrench Tip for Torque Wrench
