Straight Shank Toolholders

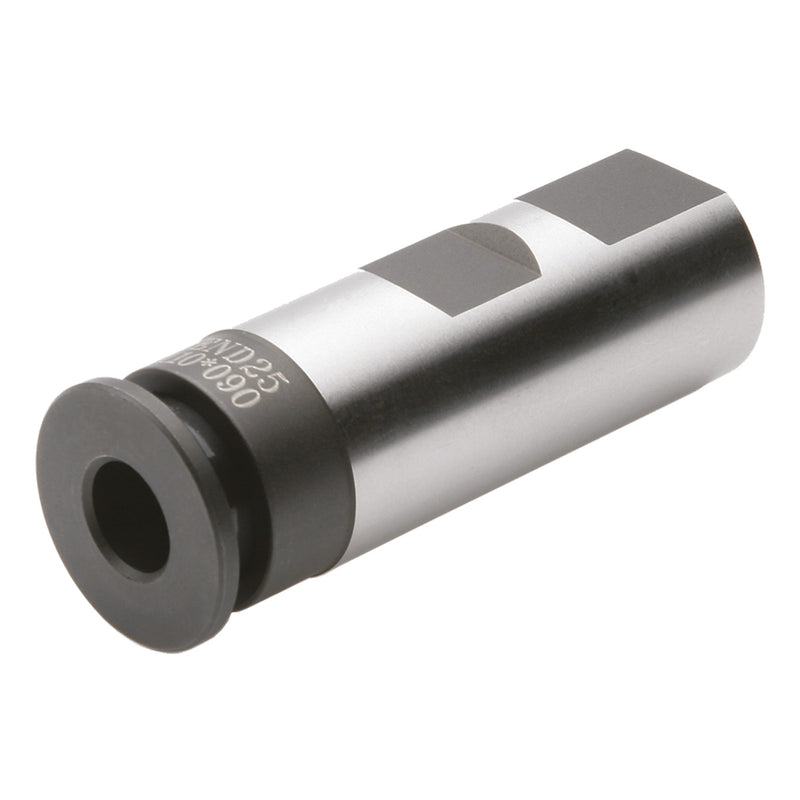

Φωλιά κολαούζου ταχείας αλλαγής Kemmler KE-16 με ίσιο στέλεχος DIN 1835 B

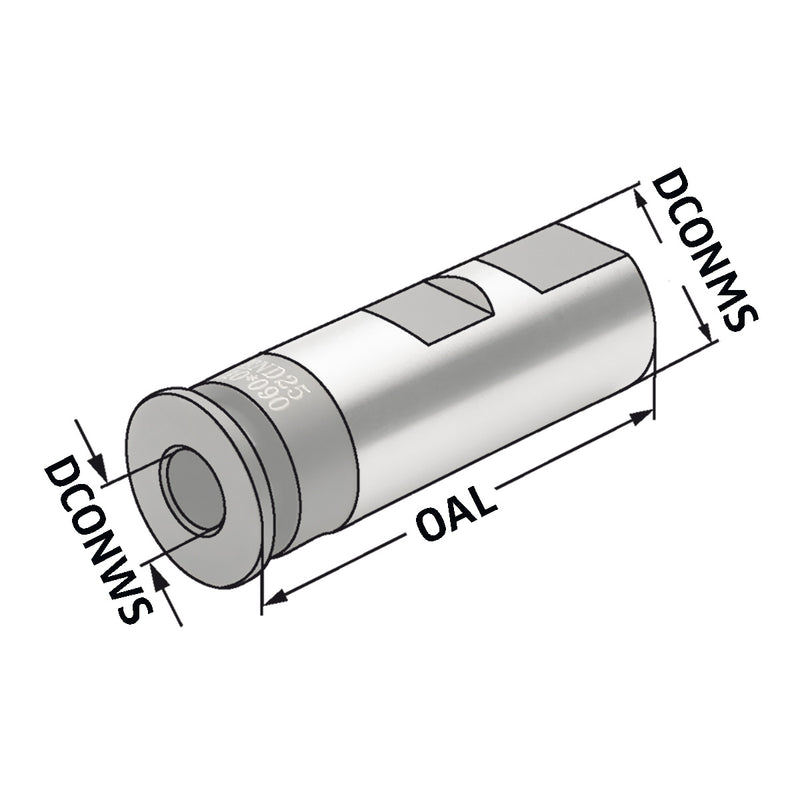

Διαστάσεις φωλιάς κολαούζου KE-16 (Kemmler): DCONMS, DCONWS, OAL

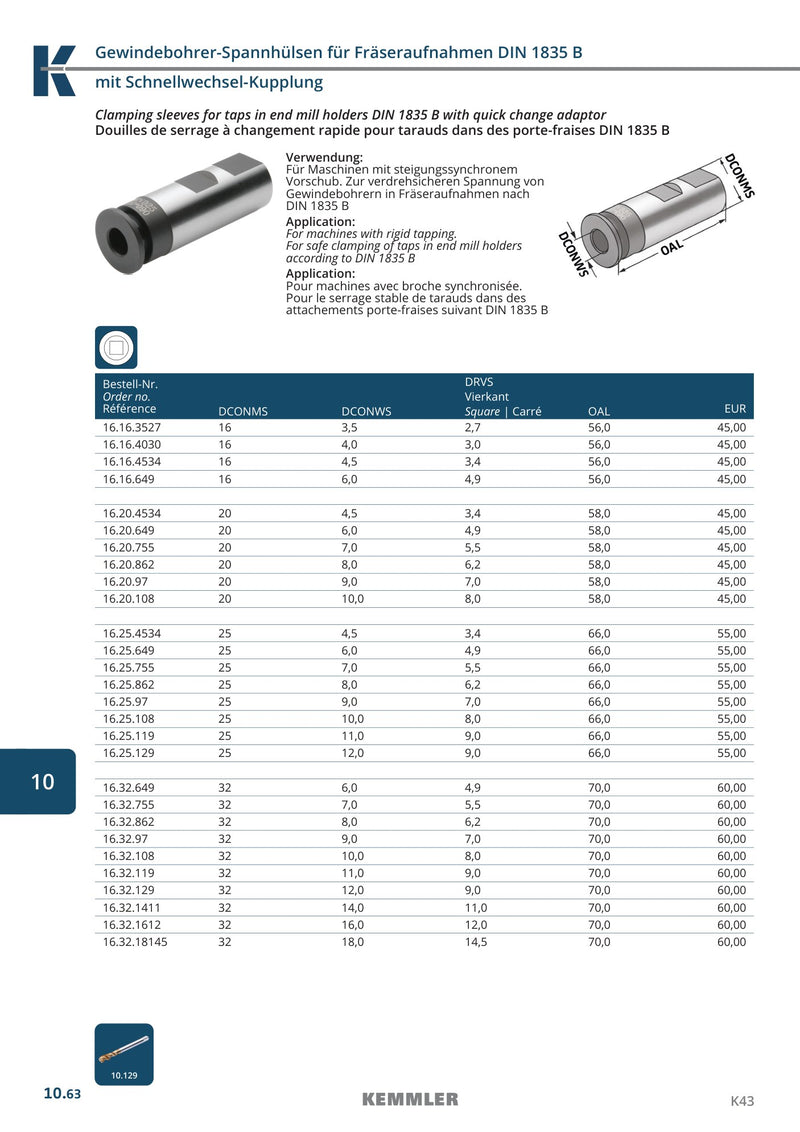

Τεχνικά χαρακτηριστικά KE-16 (Kemmler) - Clamping sleeves for taps with quick change adaptor (σελ. 1)
Φωλιά κολαούζου ταχείας αλλαγής Kemmler KE-16 με ίσιο στέλεχος DIN 1835 B
Διαστάσεις φωλιάς κολαούζου KE-16 (Kemmler): DCONMS, DCONWS, OAL
Τεχνικά χαρακτηριστικά KE-16 (Kemmler) - Clamping sleeves for taps with quick change adaptor (σελ. 1)

Availability & price

28 codes

Code DCONMS (mm) DCONWS (mm) Καρέ DRVS (mm) Availability excl. VATincl. VAT Cart
KE-16.16.3527 16 3,5 2,7
€45,10
€55,92
0
KE-16.16.4030 16 4 3
€45,10
€55,92
0
KE-16.16.4534 16 4,5 3,4
€45,10
€55,92
0
KE-16.16.649 16 6 4,9
€45,10
€55,92
0
KE-16.20.4534 20 4,5 3,4
€45,10
€55,92
0
KE-16.20.649 20 6 4,9
€45,10
€55,92
0
KE-16.20.755 20 7 5,5
€45,10
€55,92
0
KE-16.20.862 20 8 6,2
€45,10
€55,92
0
KE-16.20.97 20 9 7
€45,10
€55,92
0
KE-16.20.108 20 10 8
€45,10
€55,92
0
KE-16.25.4534 25 4,5 3,4
€55,10
€68,32
0
KE-16.25.649 25 6 4,9
€55,10
€68,32
0
KE-16.25.755 25 7 5,5
€55,10
€68,32
0
KE-16.25.862 25 8 6,2
€55,10
€68,32
0
KE-16.25.97 25 9 7
€55,10
€68,32
0
KE-16.25.108 25 10 8
€55,10
€68,32
0
KE-16.25.119 25 11 9
€55,10
€68,32
0
KE-16.25.129 25 12 9
€55,10
€68,32
0
KE-16.32.649 32 6 4,9
€60,00
€74,40
0
KE-16.32.755 32 7 5,5
€60,00
€74,40
0
KE-16.32.862 32 8 6,2
€60,00
€74,40
0
KE-16.32.97 32 9 7
€60,00
€74,40
0
KE-16.32.108 32 10 8
€60,00
€74,40
0
KE-16.32.119 32 11 9
€60,00
€74,40
0
KE-16.32.129 32 12 9
€60,00
€74,40
0
KE-16.32.1411 32 14 11
€60,00
€74,40
0
KE-16.32.1612 32 16 12
€60,00
€74,40
0
KE-16.32.18145 32 18 14,5
€60,00
€74,40
0

Specifications

  • Type: Clamping sleeve for taps with quick change adaptor
  • Shank: Straight shank DIN 1835 B (DIN 6535 HB) for end mill holders
  • Tap holding: Tap shank DIN, metric, with square drive
  • DCONMS (mm): 16 / 20 / 25 / 32
  • DCONWS (mm): 3.5 to 18
  • Square DRVS (mm): 2.7 to 14.5
  • OAL (mm): 56 / 58 / 66 / 70

Description

Kemmler clamping sleeves for taps in end mill holders DIN 1835 B with quick change adaptor. For machines with rigid tapping. For safe clamping of taps in end mill holders according to DIN 1835 B.
