Collets

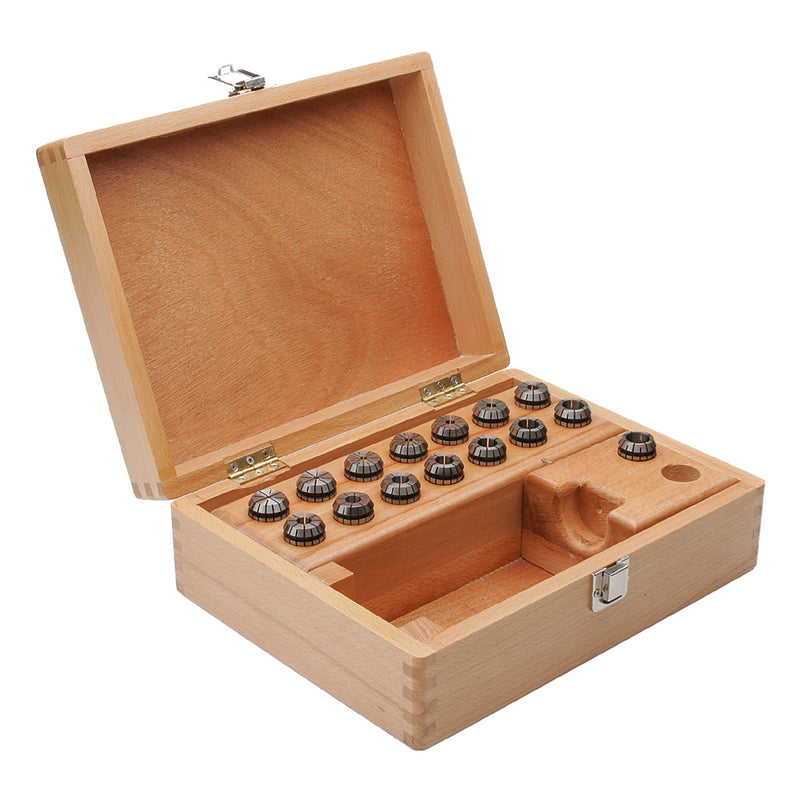

Kemmler OZ-15μm Box wooden case with set of 15 OZ 25 collets, open, with slots and metal latches

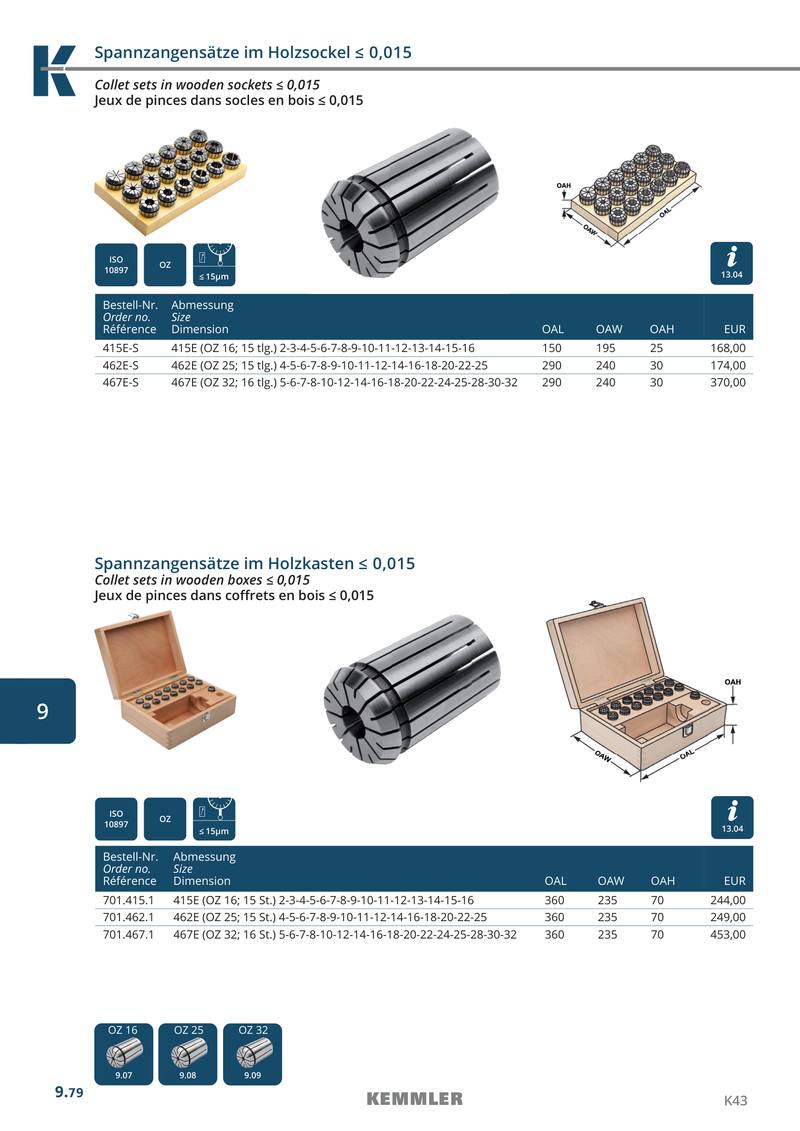

Technical specifications OZ-15μm Box - Kemmler economy OZ collet set, 15μm runout (BOX) (p. 1)

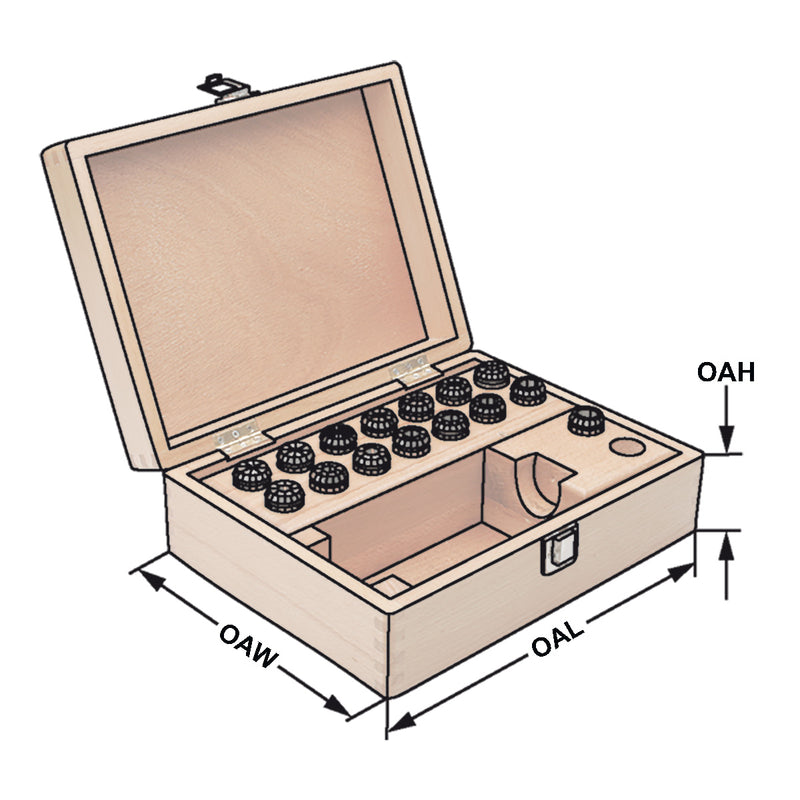

Dimensions of Kemmler OZ-15μm Box wooden case (OAL × OAW × OAH) with OZ 25 collets
Kemmler OZ-15μm Box wooden case with set of 15 OZ 25 collets, open, with slots and metal latches
Technical specifications OZ-15μm Box - Kemmler economy OZ collet set, 15μm runout (BOX) (p. 1)
Dimensions of Kemmler OZ-15μm Box wooden case (OAL × OAW × OAH) with OZ 25 collets

Availability & price

3 codes

Code Collet Includes Availability excl. VATincl. VAT Cart
KE-701.415.1 415E | OZ 16 2-3-4-5-6-7-8-9-10-11-12-13-14-15-16 1 month
€244,00
€302,56
0
KE-701.462.1 462E | OZ 25 4-5-6-7-8-9-10-11-12-14-16-18-20-22-25 1 month
€249,00
€308,76
0
KE-701.467.1 467E | OZ 32 5-6-7-8-10-12-14-16-18-20-22-24-25-28-30-32 1 month
€454,00
€562,96
0

Description

Specifications

  • Type: OZ collet set (economy series) in a wooden box (BOX)
  • Standard: DIN 6388 (ISO 10897)
  • Runout: ≤ 15 μm
  • Available sets: OZ 16 (15 pcs, Ø 2–16 mm), OZ 25 (15 pcs, Ø 4–25 mm), OZ 32 (16 pcs, Ø 5–32 mm)
  • Packaging: Wooden case 360×235×70 mm (L×W×H)

Description

Kemmler OZ collet set in a wooden box, for clamping cylindrical tools with the matching OZ body and nut in machining applications (e.g. milling, drilling). This economy series provides runout of up to 15 μm for stable holding and repeatability. The taper (collet chuck) and wrench are ordered separately.

Technical Documents 2

Datasheet Technical datasheet Catalog Full manufacturer catalog
Kemmler

Official distributor

Kemmler

Η KEMMLER Präzisionswerkzeuge GmbH είναι μια γερμανική οικογενειακή εταιρεία από το Mössingen (περιοχή Στουτγκάρδης), με εξειδίκευση στην ανάπτυξη, παραγωγή και διάθεση καινοτόμων, υψηλής ακρίβειας προϊόντων για κατεργασία μετάλλου. Με φιλοσοφία “Precision in perfection” και παραγωγή “κάτω από μία στέγη”, κατασκευάζει πάνω από 40.000 εργαλειοφορείς (toolholders) τον μήνα: κώνους φρέζας SK, BT και ISO, collets, pull studs, μέγγενες και τσοκ κολαούζων.

This product belongs to the collection

Collets

You're viewing one product from this category. Browse the full range.

36 products
View all

Related categories

All categories →
Tapers Drill Chucks23 products Boring Heads16 products Milling Heads28 products Indexable End Mills15 products
Collets

From our Wiki

Collets

The collets (collets) are high-precision components used to hold tools or workpieces in machine tools. They function as an external ring that applies uniform clamping force around the object, ensuring excellent stability and minimizing radial deviation (run-out) during rotation.

  • Types: The most common are ER (for milling machines), 5C (for lathes) and R8, each designed for specific applications and shank sizes.
  • Advantages: They offer faster tool changes, better load distribution, and higher accuracy compared to common three-jaw chucks.
  • Applications: Essential in CNC, watchmaking, medical component manufacturing, and any machining operation that requires high speeds and fine detail.
Read the guide
