PCE-360 - Multimeter - Datalogger - SD memory card
| AC voltage measurement |
50...600.0 V True RMS value |
| Accuracy | ±1.5 % of the measured value |
| Reading | +10 digits / 0.1 V |
|
|
|
| AC current measurement | 3 ... 999.9 A true RMS value |
| Accuracy | ±1.5 % of the measured value |
| By knowledge | +15 digits / 0.1 A |
| Measurement of active power P |
150 W... 999.9 kW |
| Accuracy | ±1.5 % of the measured value |
| By knowledge | +20 digits / 0.1 KW |
| Measurement of apparent power S | 150 VA... 999.9 kVA |
| Accuracy | ±1.5 % of the measured value |
| By knowledge | +20 digits / 0.1 KVA |
| Measurement of reactive power Q | 150 VAR... 999.9 kVar |
| Accuracy | ±1.5 % of the measured value |
| By knowledge | +20 digits / 0.1 KVar |
| Power factor measurement |
0 ... +1 KOSps |
| Accuracy | ± 0.06 |
| By knowledge | 0.001 |
| Phase angle measurement |
-90° .... +90° pt |
| Accuracy | ± 3° |
| By knowledge | 0.1 |
| Frequency measurement (U > 50V) | 40 ... 100 Hz |
| Accuracy | ±1 % of measured value +2 digits |
| By knowledge | 0.1 Hz |
| Three phase sequence detection (UL > 50V) |
Yes |
| Active Power Energy Measurement | 0 ... 9999 MWh |
| Accuracy | ±1.5 % of the measured value |
| By knowledge | +20 digits |
| Apparent Power Energy Measurement | 0 ... 9999 MVAh |
| Accuracy | ±1.5 % of the measured value |
| By knowledge | +20 digits |
| Reactive Power Energy Measurement | 0 ... 9999 MVarh |
| Accuracy | ±1.5 % of the measured value |
| By knowledge | +20 digits |
| Power clamp opening |
40mm / 1.57" |
| Data storage |
50 records to save manually 4 GB SD card for data recording (99 storage locations with 350,000 data records each) |

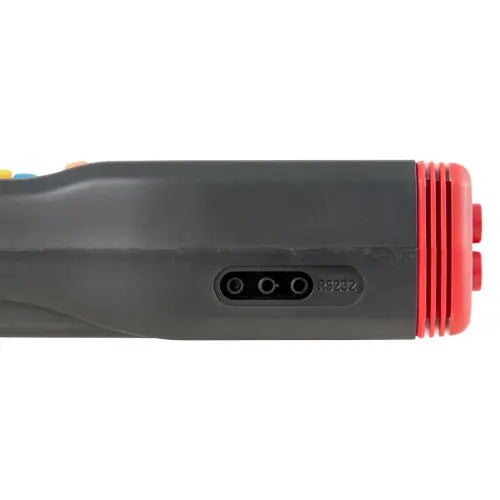

| Exit | serial via USB cable |
| Screen | Illuminated LC display |
| Power supply | 8 x 1.5 V type AA (Mignon) |
| Dimensions |
235 x 117 x 54mm / 9.25 x 4.61 x 2.13" |
| Weight | 730g / 1.61lbs |
| Environmental conditions | Maximum 85% RH / 0 ... +40 °C / 32 ... 104 °F |
| Sealing class / standards | IP 30 / IEC 61 010, 600 V / CAT III |
PCE-360 Single Phase Power Meter /
Data logging function / Includes clamps, clips, cables, PC software and data cable
The PCE-360 is a power meter with a data logger function that can take single-phase and three-phase power measurements both in real time and over an extended period of time. PCE-360 is used to measure voltage (V), current (A), active power (kW), apparent power (kVA), reactive power (kVar), power factor (cos Φ), phase angle (Φ), frequency (Hz), rotating field (UL > 50V), active power energy (MWh), apparent power energy (MVAh), reactive power energy (MVArh), harmonics (1st ... 63rd order, via software) and waveforms (via software ).

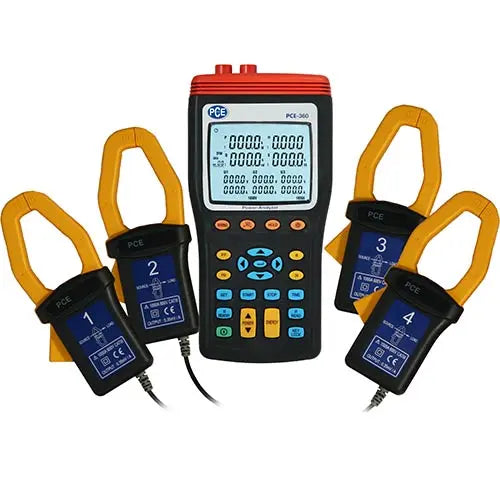

The meter's large and easy-to-read display shows up to 10 readings simultaneously. In manual mode, the device stores up to 99 readings directly. In data logging mode, the device stores up to 10,000,000 sets of measurements in the 4 GB internal memory. Measured values are easily transferred to a PC using the Windows compatible software and USB cable. In addition, four current clamps, four clips and four test leads are included in the package.
- For real-time measurement and for an extended period of time up to 578 days: 5 second sampling rate
- Includes clamps, clips, cables, PC software and data cable
- Large, easy-to-read display shows up to 10 readings simultaneously
- Stores up to 99 measurements directly in manual mode or up to 10,000,000 sets of measurements in the 4 GB internal memory in data logging mode
- For analysis of voltage (V), current (A), active power (kW), apparent power (kVA), reactive power (kVar), power factor (cos Φ), phase angle (Φ), frequency (Hz), rotational field (UL > 50V), active power energy (MWh), apparent power energy (MVAh), reactive power energy (MVArh), harmonics (1 ... 63 order, via software) and waveforms (via software)
- Automatic power off to save battery after about 30 minutes of inactivity
- The device comes factory calibrated

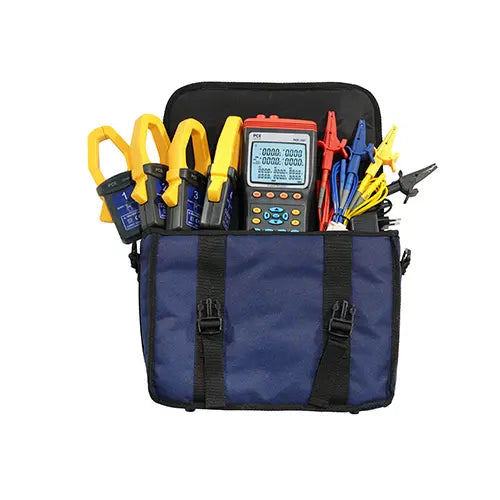

Package contents
1 x PCE-360 meter
4 x Power Clamps
4 x Test Leads
4 x Alligator Clips
8 x 1.5V AA batteries
1 x Power Adapter
1 x USB Cable
1 x PC Software CD-ROM
1 x User Manual
1 x Carrying case
