CODEPCE-932
CODEPCE-932
Digital Pressure Gauge 400 bar
- Pressure measurement up to 400 bar
- For gases and liquids
- SD card data logging
- RS-232 interface
- No recalibration when changing sensors
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|
| PCE-932 |
€321,00
|
€398,04
|
- Pressure measurement up to 400 bar
- For gases and liquids
- SD card data logging
- RS-232 interface
- No recalibration when changing sensors

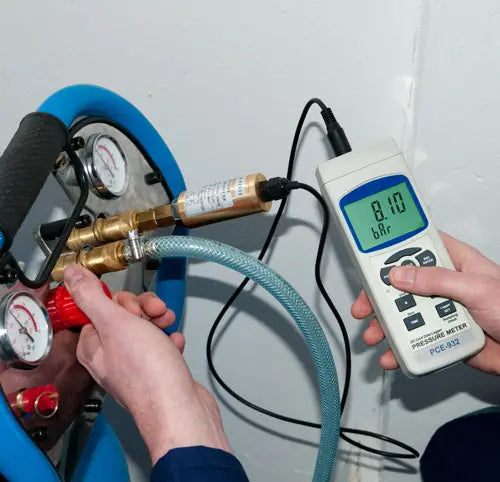

The PCE-932 is a digital handheld manometer for high-pressure measurement in hydraulic and compressor systems, pumps, tanks and silos. It is used in the chemical, manufacturing, plastics and HVAC industries, and for R&D, process testing and optimisation. It connects to pressure sensors with ranges up to 400 bar, each with a 1.2 m (3.9 ft) cable. Sensors are sold separately. No recalibration is needed when you change sensors.

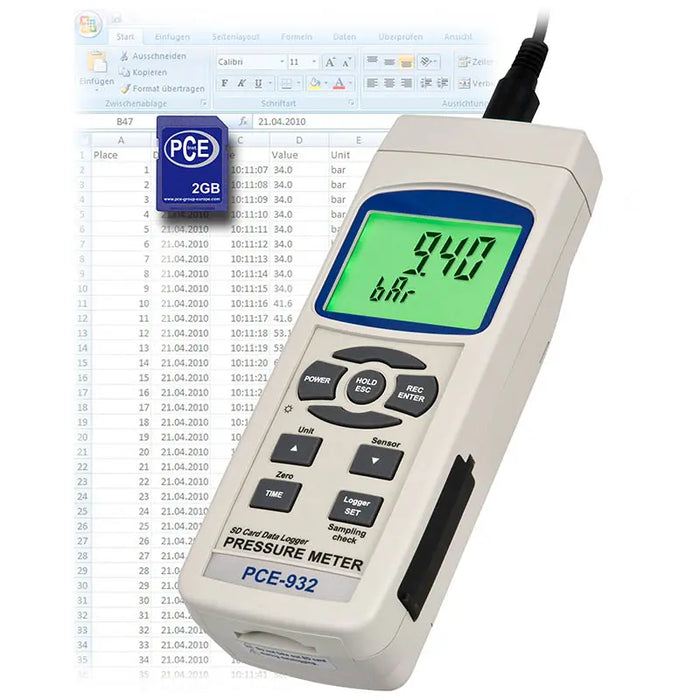

Readings are saved to an SD card in an Excel-compatible format. An RS-232 interface sends data to a PC in real time with optional software. The device is factory calibrated. An ISO calibration certificate is available at extra cost.
Highlights
- Measuring range 0 to 400 bar, depending on sensor
- Measures system pressure in gases, liquids and other media
- Min, max and hold; adjustable measurement rate
- No recalibration needed when changing sensors
- 8 selectable measuring units
- Accepts SD cards up to 16 GB
- RS-232 real-time PC transfer (optional software)
- Auto power-off (can be disabled), low-battery indicator
| Pressure | |
|---|---|
| Measuring range | 0 ... 400 bar |
| Resolution | 0,5 bar |
| Accuracy | ±2% F.S. % |
| General technical data | |
| Units | bar, psi, mmHg, kg/cm², mH₂O, inH₂O, inHg, ATM |
| Display type | LCD |
| Display size | 2,6 Inch |
| Storage medium | SD card |
| Storage capacity | 16 GB |
| Memory capacity (additional information) | 2 GB SD card included in the delivery scope |
| Interface | RS232 |
| Measuring interval from | 1 s |
| Measuring interval to | 9 h |
| Protection class (device) | IP20 |
| Power supply | 9 V DC |
| Battery | 6 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 177 x 68 x 45 mm |
| Weight | 350 g |
- 1×Manometer PCE-932
- 1×SD card (2 GB)
- 1×User manual
- (Sensors sold separately. See accessories.)
