Battery & Charging System Tester 12/24V - USB
- Conductance battery test
- 12 V / 24 V systems
- No pre-charging needed
- USB csv data export
- Reverse polarity protection
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|
| PCE-BTE 10 |
€162,00
|
€200,88
|
- Conductance battery test
- 12 V / 24 V systems
- No pre-charging needed
- USB csv data export
- Reverse polarity protection

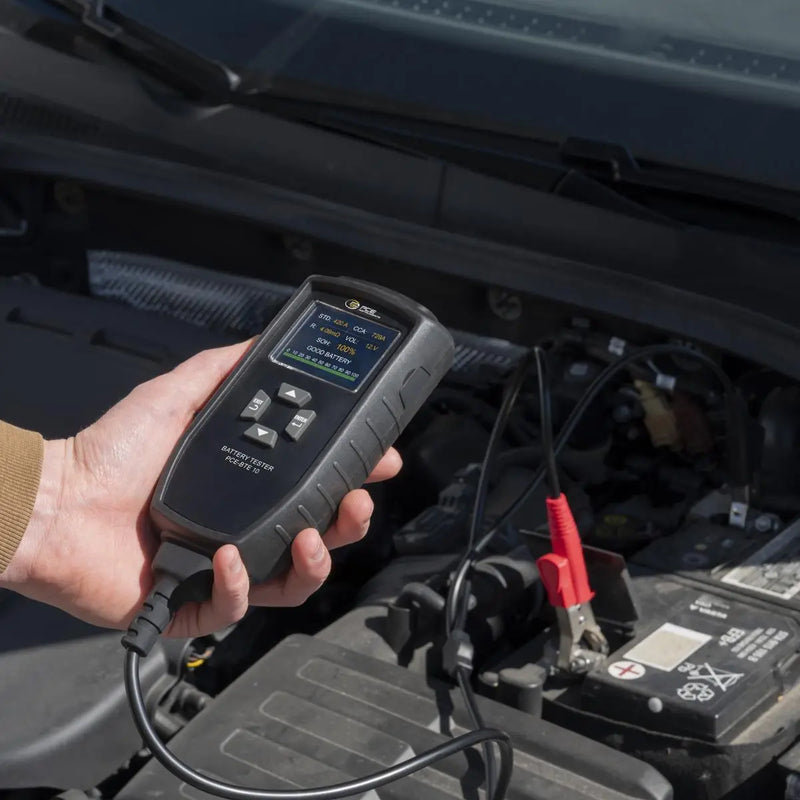

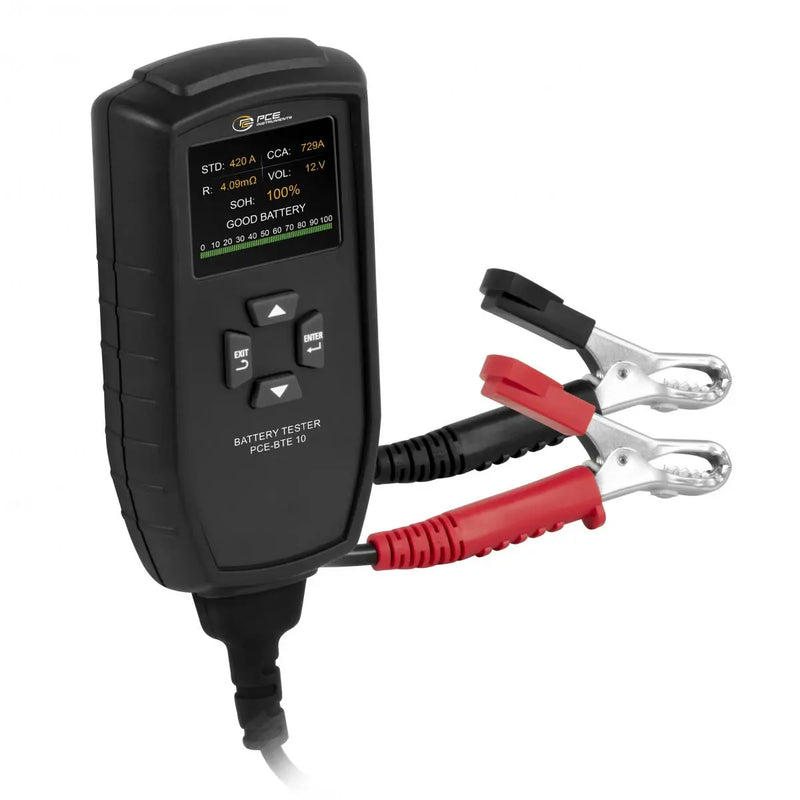

The PCE-BTE 10 tests vehicle batteries and charging systems by conductance measurement. It covers standard lead-acid, AGM, gel and EFB batteries and finds faulty batteries without charging them first. Starter and charging system tests run on 12 V and 24 V, with ripple measurement. It is made for workshops, battery factories and vehicle service.
Ranges are 8 ... 30 V DC and 100 ... 2000 A; results appear on a 2.4-inch TFT colour display (240 x 320 pixels). Test standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB. Results transfer to a PC over USB as a csv file, or to an Android device by QR code. The waveform display shows battery voltage and can be exported to the PC software. Reverse polarity protection is built in.
Highlights
- Starter and charging system test (12 V / 24 V)
- For lead-acid, AGM, gel and EFB batteries
- Detects faulty batteries without pre-charging

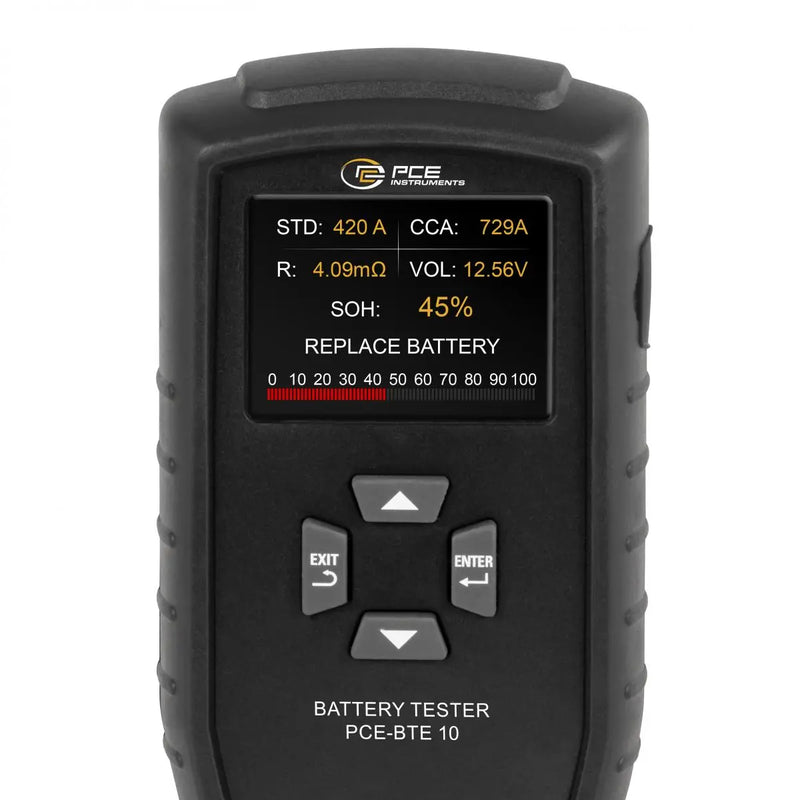

- 2.4-inch TFT colour display, 240 x 320 pixels
- Range 8 ... 30 V DC / 100 ... 2000 A
- Standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB
- USB transfer with csv export, QR code to Android

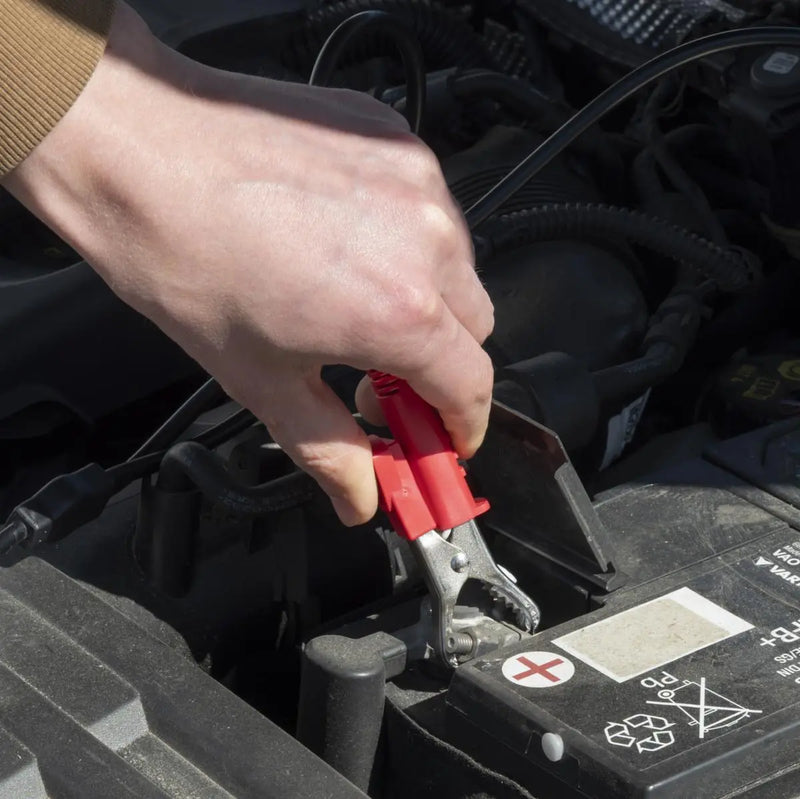

- Kelvin clamps on 90 cm cable, IP40
| Direct voltage DC | |
|---|---|
| Measuring range | 8 ... 30 V |
| Resolution | 0,01 V |
| Direct current DC | |
| Measuring range | 100 ... 2000 A |
| Resolution | 1 A |
| General technical data | |
| Cable length | 90 cm |

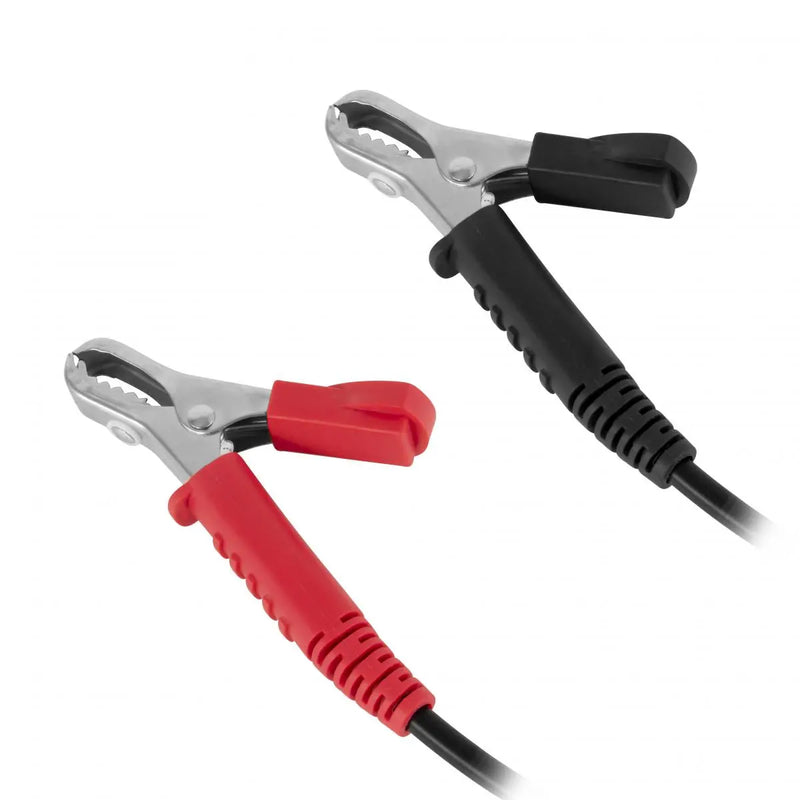

| Connections | Kelvin clamps |
| Display type | TFT colour display |
| Display size | 2,4 in |
| Display resolution | 240 x 320 pixels |

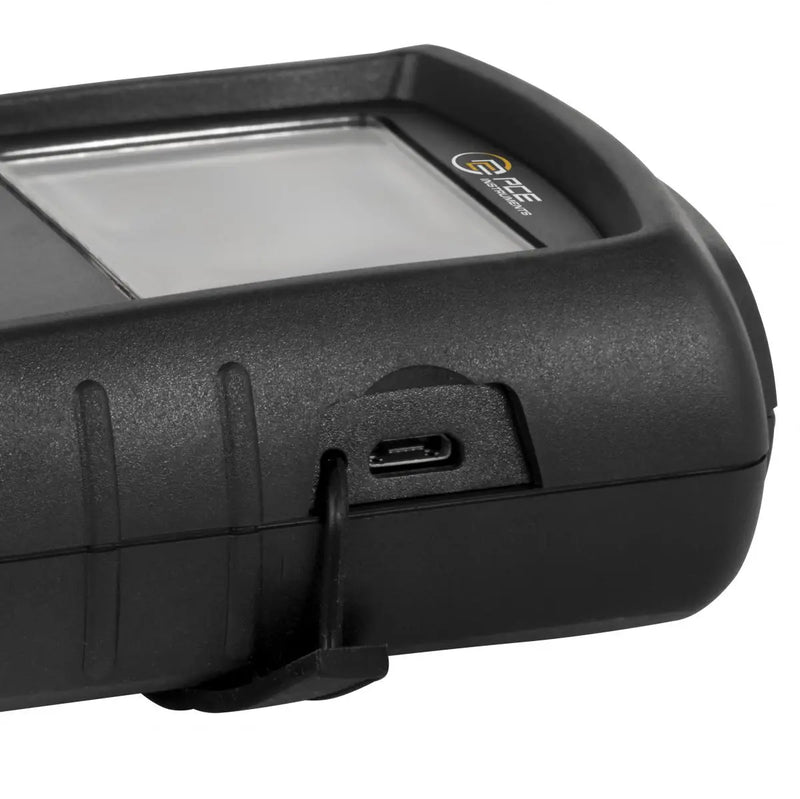

| Interface | Mini-USB |
| Battery capacities | 30 ... 200 Ah |
| Battery standards | CCA, BCI, CA, MAC, JIS, IEC, IN, SAE, GB, DIN |
| Menu language | English, English (GB), Chinese |
| Protection class (device) | IP40 |
| Power supply | 8V ... 30V DC (via car battery) |
| Dimensions ( L x W x H ) | 150 x 80 x 35 mm |
| Weight | 328 g |

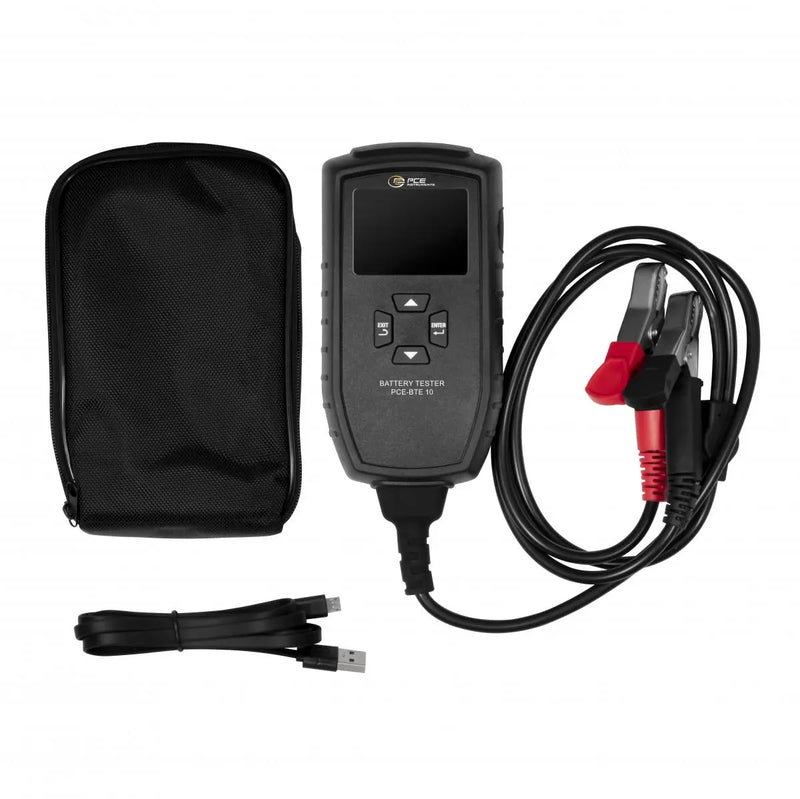

- 1×Voltmeter PCE-BTE 10
- 1×Micro-USB cable for connection to PC
- 1×Operating instructions
- 1×PC software (in the download section)
