| Alkalinity | |
| Measuring range | 0… 30 mg / l |
| 30… 60 mg / l | |
| 60… 100 mg / l | |
| 100… 200 mg / l | |
| Accuracy | 3 mg / l |
| 7 mg / l | |
| 12 mg / l | |
| 18 mg / l | |
| Reading | 1 mg / l |
| Chlorine | |
| Measuring range | 0.00 ... 2.00 mg / l |
| 2.00 ... 3.00 mg / l | |
| 3.00 ... 4.00 mg / l | |
| 4.00 ... 8.00 mg / l | |
| Accuracy | 0.10 mg / l |
| 0.23 mg / l | |
| 0.75 mg / l | |
| 1.00 mg / l | |
| Reading | 0.01 mg / l |
| Cyanuric acid | |
| Measuring range | 0… 15 mg / l |
| 15… 50 mg / l | |
| 50… 120 mg / l | |
| 120… 160 mg / l | |
| Accuracy | 1 mg / l |
| 5 mg / l | |
| 13 mg / l | |
| 19 mg / l | |
| Reading | 1 mg / l |
| pH | |
| Measuring range | 6.50 ... 8.40 pH |
| Accuracy | 0.11 pH |
| Reading | 0.01 pH |
| Total hardness | |
| Measuring range | 0… 30 mg / l |
| 30… 60 mg / l | |
| 60… 100 mg / l | |
| 100… 200 mg / l | |
| 200 ... 300 mg / l | |
| 300 ... 500 mg / l | |
| Accuracy | 3 mg / l |
| 5 mg / l | |
| 10 mg / l | |
| 17 mg / l | |
| 22 mg / l | |
| 58 mg / l | |
| Reading | 1 mg / l |
| Calcium hardness | |
| Measuring range | 0… 25 mg / l |
| 25… 100 mg / l | |
| 100 ... 300 mg / l | |
| 300 ... 500 mg / l | |
| Accuracy | 8 mg / l |
| 22 mg / l | |
| 34 mg / l | |
| 45 mg / l | |
| Reading | 1 mg / l |
| Active oxygen | |
| Measuring range | 0.0 ... 5.0 mg / l |
| 5.0… 15.0 mg / l | |
| 15.0 ... 25.0 mg / l | |
| 25.0 ... 30.0 mg / l | |
| Accuracy | 0.5 mg / l |
| 1.3 mg / l | |
| 3.8 mg / l | |
| 5.0 mg / l | |
| Reading | 0.1 mg / l |
| Chlorine dioxide | |
| Measuring range | 0.00 ... 2.00 mg / l |
| 2.00 ... 6.00 mg / l | |
| 6.00 ... 10.00 mg / l | |
| 10.00 ... 11.40 mg / l | |
| Accuracy | 0.19 mg / l |
| 0.48 mg / l | |
| 1.43 mg / l | |
| 1.90 mg / l | |
| Reading | 0.01 mg / l |
| Bromine | |
| Measuring range | 0.0 ... 2.5 mg / l |
| 2.5… 6.5 mg / l | |
| 6.5 ... 11.0 mg / l | |
| 11.0 ... 13.5 mg / l | |
| Accuracy | 0.2 mg / l |
| 0.6 mg / l | |
| 1.7 mg / l | |
| 2.3 mg / l | |
| Reading | 0.1 mg / l |
| Ozone | |
| Measuring range | 0.00… 1.00 mg / l |
| 1.00 ... 2.00 mg / l | |
| 2.00 ... 3.00 mg / l | |
| 3.00 ... 4.00 mg / l | |
| Accuracy | 0.07 mg / l |
| 0.17 mg / l | |
| 0.51 mg / l | |
| 0.68 mg / l | |
| Reading | 0.01 mg / l |
| Hydrogen peroxide - narrow measurement range (LR) | |
| Measuring range | 0.00 ... 0.50 mg / l |
| 0.50… 1.50 mg / l | |
| 1.50 ... 2.00 mg / l | |
| 2.00 ... 2.90 mg / l | |
| Accuracy | 0.05 mg / l |
| 0.12 mg / l | |
| 0.36 mg / l | |
| 0.48 mg / l | |
| Reading | 0.01 mg / l |
| Hydrogen peroxide - wide measurement range (HR) | |
| Measuring range | 0… 50 mg / l |
| 50… 110 mg / l | |
| 110… 170 mg / l | |
| 170… 200 mg / l | |
| Accuracy | 5 mg / l |
| 6 mg / l | |
| 11 mg / l | |
| 13 mg / l | |
| Reading | 1 mg / l |
| PHMB (polyhexanide) | |
| Measuring range | 5… 60 mg / l |
| Accuracy | 5 mg / l |
| Reading | 1 mg / l |
| Urea | |
| Measuring range | 0.00 ... 0.30 mg / l |
| 0.30… 0.60 mg / l | |
| 0.60… 1.00 mg / l | |
| 1.00… 1.50 mg / l | |
| 1.50 ... 2.50 mg / l | |
| Accuracy | 0.05 mg / l |
| 0.06 mg / l | |
| 0.09 mg / l | |
| 0.12 mg / l | |
| 0.19 mg / l | |
| Reading | 0.01 mg / l |
| Further specifications | |
| Calibration | Zero point calibration |
|
Light source |
LED 503 nm / 570 nm / 620 nm |
| Light detector | Photodiode |
| Power | 4 x 1.5V AA batteries |
| Sample vial dimensions | 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml) |
| Menu languages | English, German, French, Spanish, and Italian |
| Storage | Automatic saving of measured values and reading |
| Storage space | 256 values |
| Connectivity | Bluetooth connection with app and computer software |
| Automatic shutdown | After 300 seconds of inactivity |
| Operating conditions | 5 … 45°C / 41 ... 113°F, 20 ... 90% RH non-condensing |
| Storage conditions | 5 … 45°C / 41 ... 113°F, 20 ... 90% RH non-condensing |
| Dimensions | 165 x 95 x 50 mm / 6.5 x 3.7 x 2 inches |
| Weight | 230 g / < 1 pound |
PCE-CP 30 multiparameter water quality meter with Bluetooth connection / PC connection software / Cloud service / Cross-system synchronization of measured values / Storage of measured values

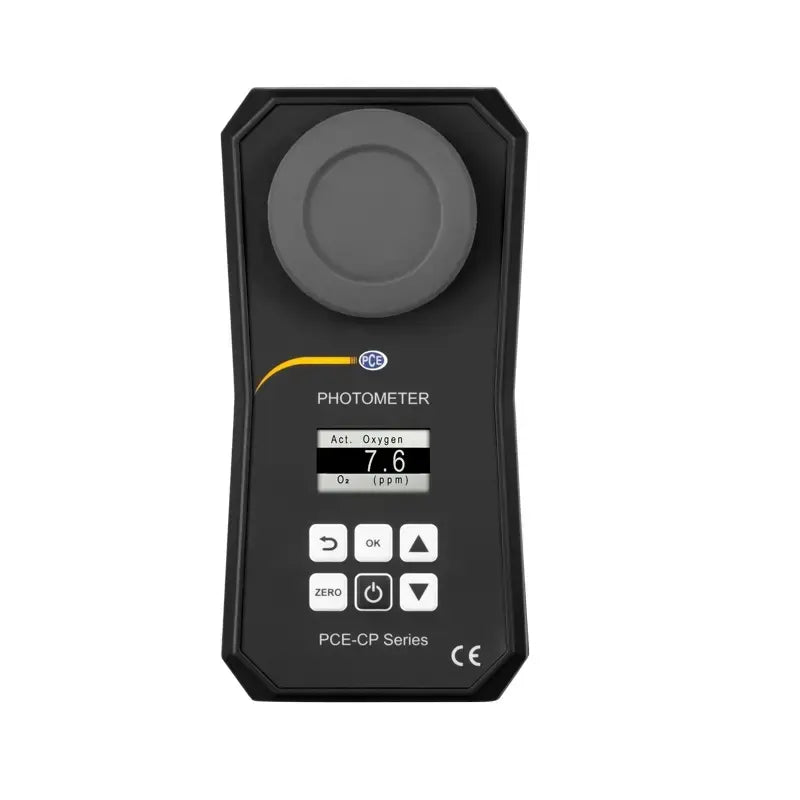

The PCE-CP 30 is a portable measuring device for water quality control with the ability to determine pH, alkalinity, chlorine content, cyanuric acid, etc. To perform a measurement, a 10 ml water sample must be placed in the cuvette. The built-in LED lamp produces a test light with wavelengths of 503 nm, 570 nm, and 620 nm. Subsequently, a photodiode now recognizes the value to be measured based on the light transmission of the sample.

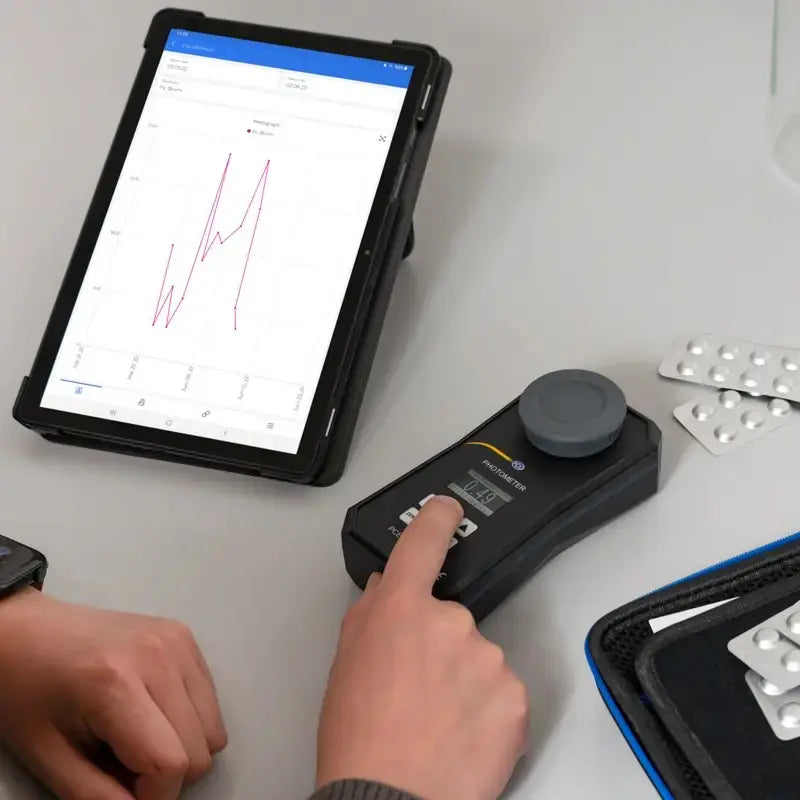

Each measurement is automatically saved in a 256-record memory. Through any mobile device (tablet, phone, laptop), the user can connect to the free app via Bluetooth to further process the measurement data, which can be re-uploaded to a cloud service and be
available and accessible at any time.
- Up to 13 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- LED 503 nm / 570 nm / 620 nm
- Automatic shutdown after inactivity
- Multiple different menu languages
- Light detector: photodiode
- Sample vial: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- LED 503 nm / 570 nm / 620 nm
- Automatic shutdown after inactivity
- Multiple different menu languages
- Light detector: photodiode
- Sample vial: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Package contents
1 x PCE-CP 30 meter, sample vial included
1 x Replacement vial
1 x Light protection cover
1 x Microfiber cloth
1 x Immersion plunger
1 x 10 ml volumetric pipette
4 x AA batteries
1 x User manual
1 x Carrying case
1 x Free app
1 x Free computer software
1 x Free cloud service
1 x spring starter kit (20x pH, 20x free chlorine, 10 x combined / total chlorine, 10x alkalinity, 10 x cyanuric acid)
1 x Replacement vial
1 x Light protection cover
1 x Microfiber cloth
1 x Immersion plunger
1 x 10 ml volumetric pipette
4 x AA batteries
1 x User manual
1 x Carrying case
1 x Free app
1 x Free computer software
1 x Free cloud service
1 x spring starter kit (20x pH, 20x free chlorine, 10 x combined / total chlorine, 10x alkalinity, 10 x cyanuric acid)
