Electromagnetic Radiation Meters EMF

Availability & price

Code Availability excl. VATincl. VAT Cart
PCE-EMF 40
€605,00
€750,20
0

Description

  • Magnetic field up to 2000 mG
  • Electric field up to 2000 V/m
  • High frequency up to 3500 MHz
  • 3-axis measurement
  • Handheld, for quick measurements

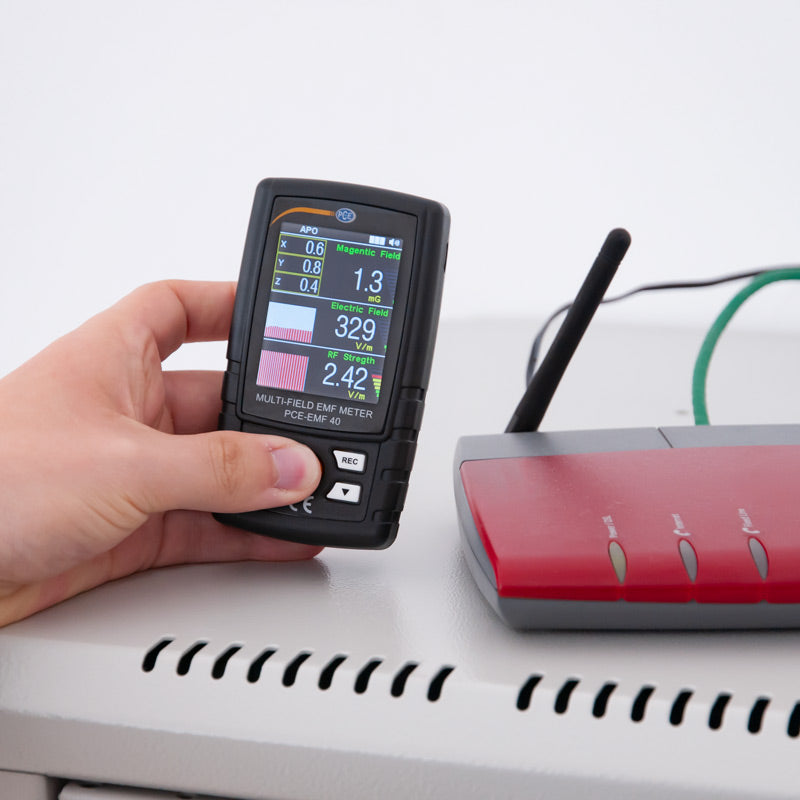

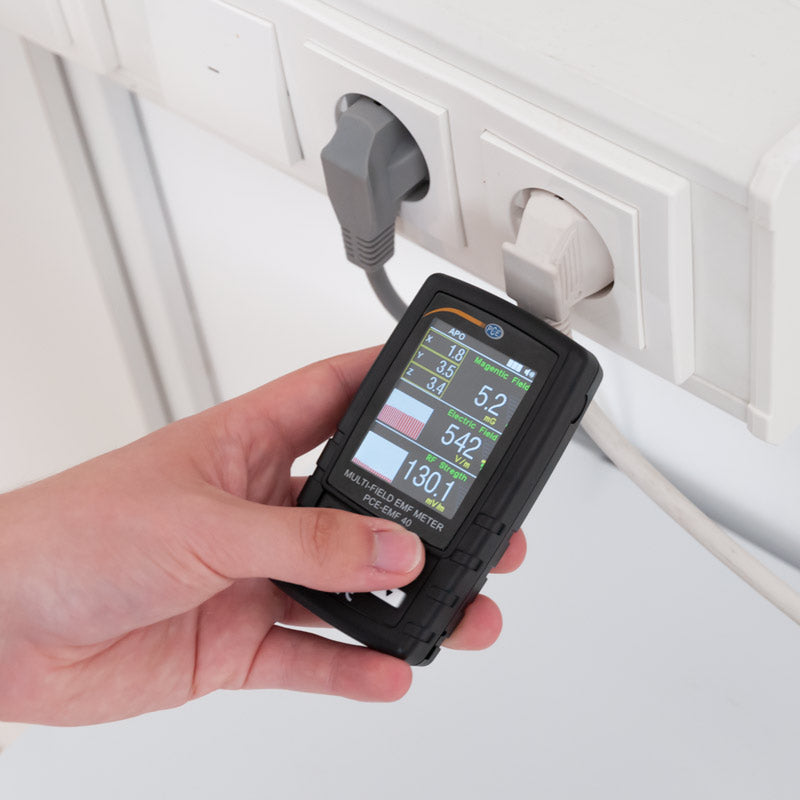

The PCE-EMF 40 is a handheld gauss meter for low-frequency magnetic fields, low-frequency electric fields and high-frequency electromagnetic fields. It measures magnetic fields up to 2000 mG on three axes (X, Y and Z) and determines electric field strength on supply lines at 50/60 Hz. In the high-frequency range it measures sources such as WLAN routers and mobile phones.

All three measurement modes are read at the same time on the 2.4'' TFT display, so no switching is needed. Besides the numerical reading, the meter shows a graph of the last 20 values and a bar graph in three traffic-light colours. When the reading reaches the red area, an acoustic alarm sounds and switches off again below the limit.

Highlights

  • Magnetic, electric and RF field measurement
  • 3-axis magnetic measurement up to 2000 mG
  • Electric field up to 2000 V/m
  • 2.4'' TFT display, backlight in 4 levels
  • Graph of the last 20 readings
  • Acoustic alarm on limit exceedance
  • Several selectable measuring units
  • MIN, MAX, HOLD and automatic power-off

Specifications

Low-frequency magnetic field
Measuring rangeResolutionAccuracyBandwidth
20 ... 200 µT0,01 µT±12% +5 digits50 ... 60 Hz
200 ... 2000 mG0,1 mG±12% +5 digits50 ... 60 Hz
Low-frequency electromagnetic field
Measuring range50 ... 2000 V/m
Resolution1 V/m
Accuracy±7% +20 Digits
Bandwidth50 ... 60 Hz
High-frequency electromagnetic field
Measuring rangeResolutionAccuracyBandwidth
30 mV/m ... 11 V/m0,01 mV/m1.0 dB at 1 V/m and 900 MHz, >1 V/m for reference only50 ... 3500 MHz
0,02 ... 32 µW/cm²0,01 µW/cm²1.0 dB at 1 V/m and 900 MHz, >1 V/m for reference only50 ... 3500 MHz
2,3 µw/m² ... 320,9 mW/m²0,1 µw/m²1.0 dB at 1 V/m and 900 MHz, >1 V/m for reference only50 ... 3500 MHz
0,07 ... 29,1 mA/m0,01 mA/m1.0 dB at 1 V/m and 900 MHz, >1 V/m for reference only50 ... 3500 MHz
General technical data
Measuring functionsMIN, MAX, HOLD
Display typeLCD with backlight
Display size2,4 Inch
Measuring rate1 Hz
Operating time4,5 h
Automatic power-off10 min
AlarmAcoustic
Menu languageEnglish, English (GB)
Protection class (device)IP20
Battery3 x 1,5 V AAA battery , Alkali-manganese
Capacity1200 mAh
Operating conditions0 ... 50 °C , 0 ... 80 % RH
Storage conditions0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )107 x 60 x 25 mm
Weight100 g

Package Contents

  • 1×Gauss Meter / Tesla Meter PCE-EMF 40
  • 3×1.5V AAA batteries
  • 1×Instruction manual
