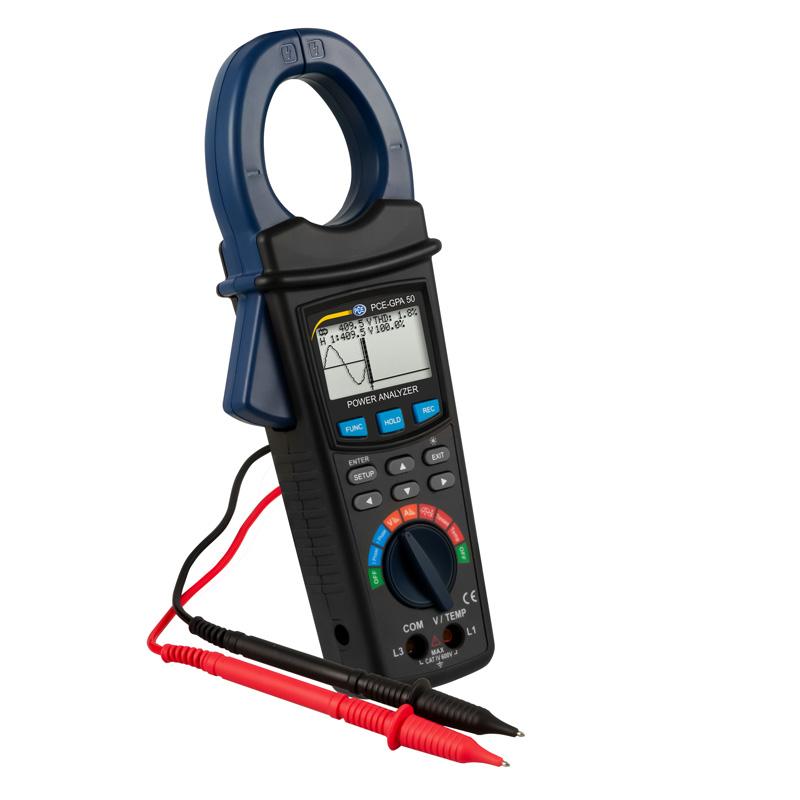

PCE Instruments PCE-GPA 50 clamp multimeter with large blue jaw, display and red/black probes

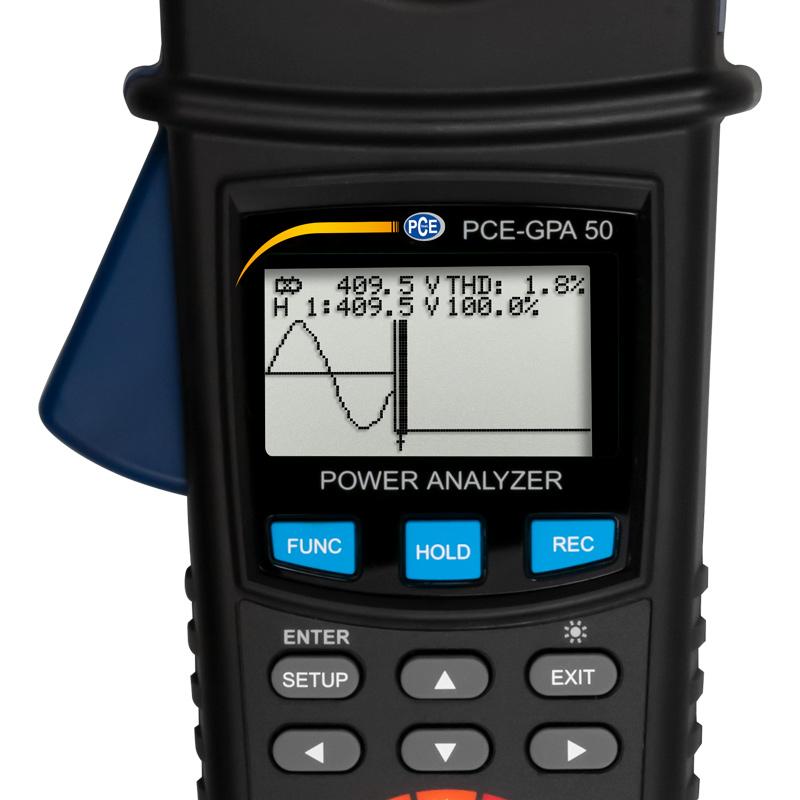

PCE Instruments PCE-GPA 50 clamp multimeter with large graph display and blue FUNC/HOLD/REC keys

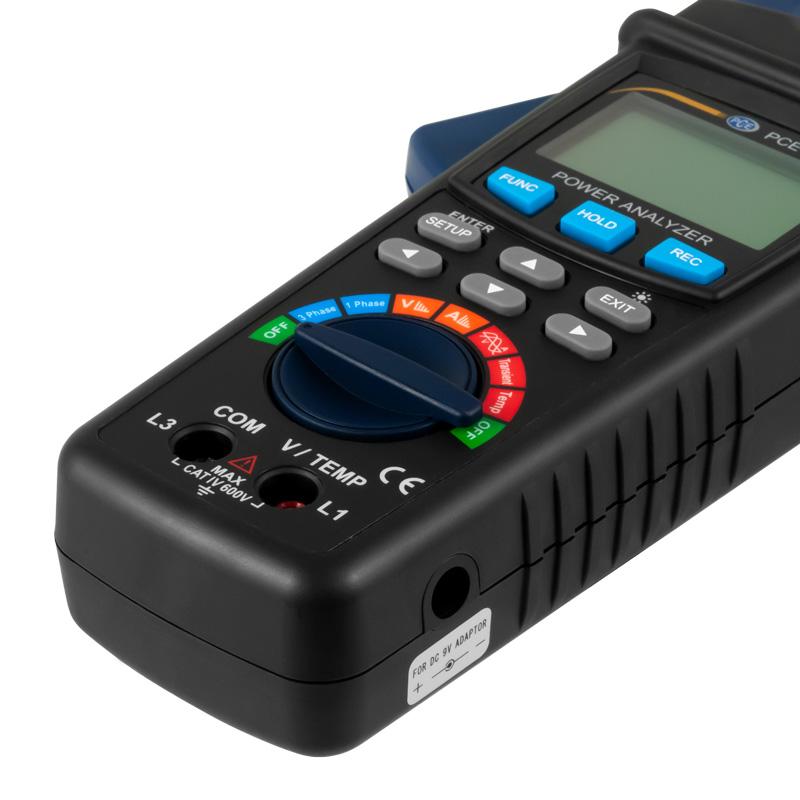

PCE Instruments PCE-GPA 50 clamp multimeter with large display, rotary selector and function keys

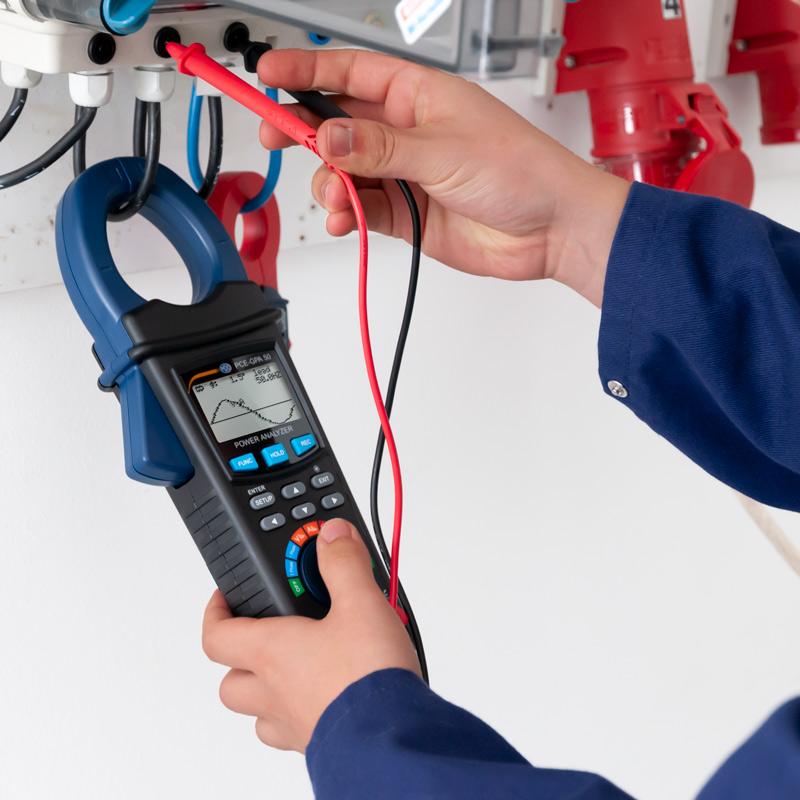

PCE Instruments PCE-GPA 50 clamp multimeter in use, with blue jaw and test leads on a panel

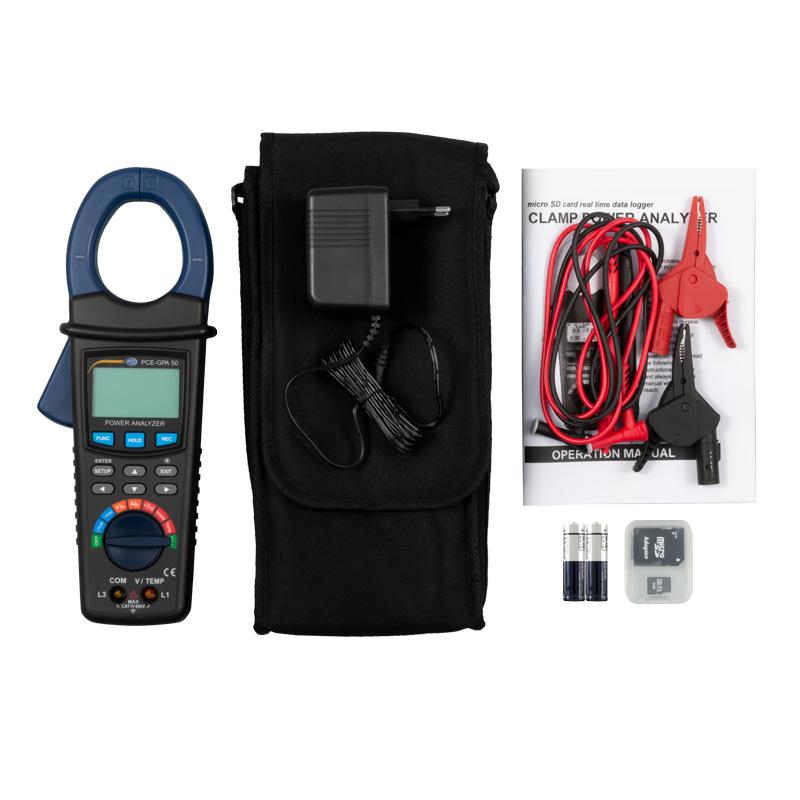

PCE Instruments PCE-GPA 50 clamp multimeter with case, charger, test leads, batteries and SD card
PCE Instruments PCE-GPA 50 clamp multimeter with large blue jaw, display and red/black probes
PCE Instruments PCE-GPA 50 clamp multimeter with large graph display and blue FUNC/HOLD/REC keys
PCE Instruments PCE-GPA 50 clamp multimeter with large display, rotary selector and function keys
PCE Instruments PCE-GPA 50 clamp multimeter in use, with blue jaw and test leads on a panel
PCE Instruments PCE-GPA 50 clamp multimeter with case, charger, test leads, batteries and SD card

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-GPA 50
€860,00
€1.066,40
0

= Express from Europe: at our premises in 1-2 working days, from €35 + VAT Express from Europe, from €35 + VAT

Express from Europe

At our premises in 1-2 working days if you place the order by 13:00
Cost depending on weight from €35 + VAT

If it takes more than 2 working days, we refund the cost.

Contact us

info@organametrisis.gr 210 2231624

Mon–Fri 08:30–18:00
  • Current clamp up to 2000 A
  • TRMS measurement
  • Power measurement and harmonic analysis
  • Backlit graphic display
  • Data logging
  • Mains or battery operation

The PCE-GPA 50 is a clamp meter for measuring current on 1- or 3-phase loads up to 2000 A. It also measures voltage and uses the phase angle to calculate active, apparent and reactive power. Other network parameters include energy, power factor and harmonics. Temperature can be measured with a thermocouple. The graphic display shows numerical values and the phase waveform.

A built-in data logger stores all readings directly on a micro SD card. The meter runs on 2 x 1.5V AA batteries. For long-term measurements, it can also run from a mains adapter.

Highlights

  • Graphic display with waveform view
  • Data logger on micro SD card
  • Measures 1- and 3-phase systems
  • Temperature measurement with thermocouple
  • AC voltage 10V ... 600V RMS
  • AC current 5 ... 2000 A RMS
  • Clamp opening 50 mm
  • Harmonic distortion up to the 50th order
Type K temperature
Measuring range-100 ... +199,9 °C
Resolution0,1 °C
Accuracy±(1% +1°C)
Measuring range200 ... 1300 °C
Resolution1 °C
Accuracy±(1% +2°C)
AC voltage
Measuring range10 ... 600 V
Resolution0,1 V
Accuracy±(0.5 % ... 3 digits)
Overload720 V RMS
Alternating current AC
Measuring range5 ... 100 A
Resolution0,01 A
Accuracy±(1% +0.5 A)
Overload2100 A
Measuring range100 ... 200 A
Resolution0,1 A
Accuracy±(1% +0.5 A)
Measuring range200 ... 1000 A
Resolution0,1 A
Accuracy±(1% +5 A)
Measuring range1000 ... 2000 A
Resolution1 A
Accuracy±(1% +5 A)
Active power
Measuring range0 W ... 9,999 MW
Resolution0,001 W
Accuracy±(1.5% of measured value +20 digits)
Reactive power
Measuring range0 VAR ... 9,999 MVAR
Resolution0,001 VAR
Accuracy±(1.5% of measured value +20 digits)
Phase angle
Measuring range-180 ... +180 °
Resolution0,1 °
Accuracy±1 ° x PF
Apparent power
Measuring range0 VA ... 9,999 MVA
Resolution0,001 VA
Accuracy±(1.5% of measured value +20 digits)
Power factor
Measuring range0 ... 1
Resolution0.001
Accuracy±0.04
Active energy
Measuring range0 kWh ... 9,999 MWh
Resolution0,001 kWh
Accuracy±(1.5% of measured value +20 digits)
Apparent energy
Measuring range0 kVAh ... 9,999 MVAh
Resolution0,001 kVAh
Accuracy±(1.5% of measured value +20 digits)
Reactive energy
Measuring range0 kVArh ... 9,999 MVARh
Resolution0,001 kVArh
Accuracy±(1.5% of measured value +20 digits)
Frequency
Measuring range45 ... 65 Hz
Resolution0,1 Hz
Accuracy±0.2 Hz
Harmonic measurement (harmonics)
Measuring range1 ... 50 (ordinal number)
General technical data
Measuring functionsHOLD
Frequency40 ... 1000 Hz
Display typeGraphic LCD
Display size2,4 Inch
Measuring rate1 s
Storage mediumMicro SD card
Storage interval from2 s
Storage interval to7200 s
InterfaceRS232
Current consumption meter60 mA DC
Maximum cable diameter50 mm
Automatic power-off10 min
Input impedance10 M Ω
Menu languageEnglish, English (GB)
Protection class (device)IP20
Power supply9 V / 800 mA
Connector typeDevice-europlug
Battery2 x 1,5 V AA battery , Alkali-manganese
Capacity3000 mAh
Operating conditions0 ... 50 °C , 0 ... 80 % RH
Storage conditions0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )280 x 106 x 47 mm
Weight595 g
  • 1×Digital Multimeter PCE-GPA 50
  • 1×Test lead set
  • 2×Crocodile clips
  • 1×Micro SD memory card
  • 1×Power supply 9V / 800-mA
  • 2×1.5V AA battery
  • 1×Carrying bag
  • 1×User manual
