CODEPCE-HT 70
CODEPCE-HT 70
USB Data Logger - Hygrometer & Thermometer for Trucks, Containers
- Measures air temperature and humidity
- Compact
- Long battery life
- Stores up to 16,000 readings
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|
| PCE-HT 70 |
€78,00
|
€96,72
|
= Express from Europe: at our premises in 1-2 working days, from €35 + VAT Express from Europe, from €35 + VAT
- Measures air temperature and humidity
- Compact
- Long battery life
- Stores up to 16,000 readings

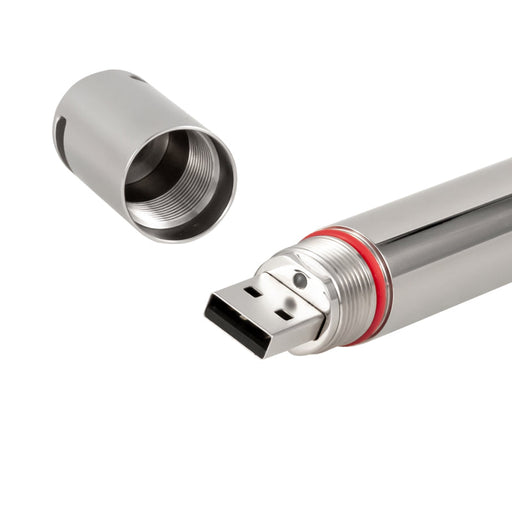

The PCE-HT 70 is a compact USB data logger. It records air temperature and humidity in its internal memory, up to 16,000 values. Typical uses are long-term monitoring in the food sector (supermarket refrigerated counters, refrigerated transport, warehouses) and in industry (heating and cooling processes, machine temperatures, product warehouses). An LED shows when it is recording.
Start recording manually, or programme the start and stop time, date and storage rate using the internal real-time clock. The storage rate is freely adjustable. Software on a PC or laptop shows the data as a graph and a table. One button press ends the current measurement and starts a new one. This lets you check outbound and return freight without re-programming.
Highlights
- USB data logger
- Dew point calculation
- Stores up to 16,000 readings
- Data export to software
- 450-day operating time
- Storage rate adjustable from 1 second
- Compact, wall bracket included
| Relative humidity | |
|---|---|
| Measuring range | 0 ... 100 % RH |
| Resolution | 0,1 % |
| Accuracy | ±3 % RH (10 ... 90 % RH) ±4 % RH (rest of range) |
| Temperature | |
| Measuring range | -40 ... 85 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.5 °C (0 ... 70 °C) ±0.8 °C (-20 ... 0 °C) |
| General technical data | |
| Display type | without display |
| Storage medium | Internal memory |
| Storage capacity | 16000 Values |
| Storage interval from | 1 s |
| Storage interval to | 15 days |
| Interface | USB |
| Response time | 2 min |
| Operating time | 450 Day(s) |
| Drift | Temperature: 0.03°C / year Humidity: 0.25% r.h. / year |
| Protection class (device) | IP30 |
| Battery | 1 x 3 V CR 2032 (button cell 3V) , lithium |
| Capacity | 220 mAh |
| Operating conditions | -40 ... 85 °C , 0 ... 100 % RH |
| Storage conditions | -40 ... 85 °C , 0 ... 95 % RH |
| Dimensions ( L x W x H ) | 69,5 x 47,5 x 18,7 mm |
| Weight | 44 g |
- 1×Thermo-Hygrometer PCE-HT 70
- 1×Wall bracket
- 1×CR2032 battery
- 1×User manual
