Cable Detector
- LAN cable testing
- Telephone connection test
- Voltage and current measurement
- Non-contact voltage detection (NCV)
- Backlit display
- For electricians and IT staff
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
Calibrationupon request
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|
| PCE-LT 12 |
€72,00
|
€89,28
|
Description
- LAN cable testing
- Telephone connection test
- Voltage and current measurement
- Non-contact voltage detection (NCV)
- Backlit display
- For electricians and IT staff

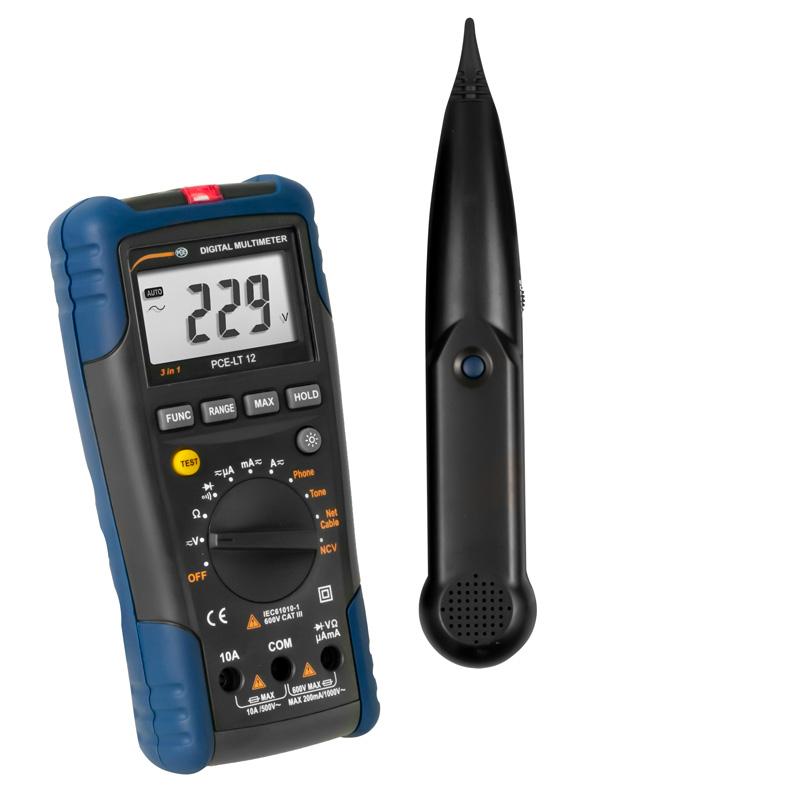

The PCE-LT 12 is an electrical tester for electricians and IT staff. It measures DC and AC voltage, DC and AC current and resistance. It also tests continuity and diodes. A network analysis function checks LAN cables for correct wiring and function. Telephone connections can be tested too.

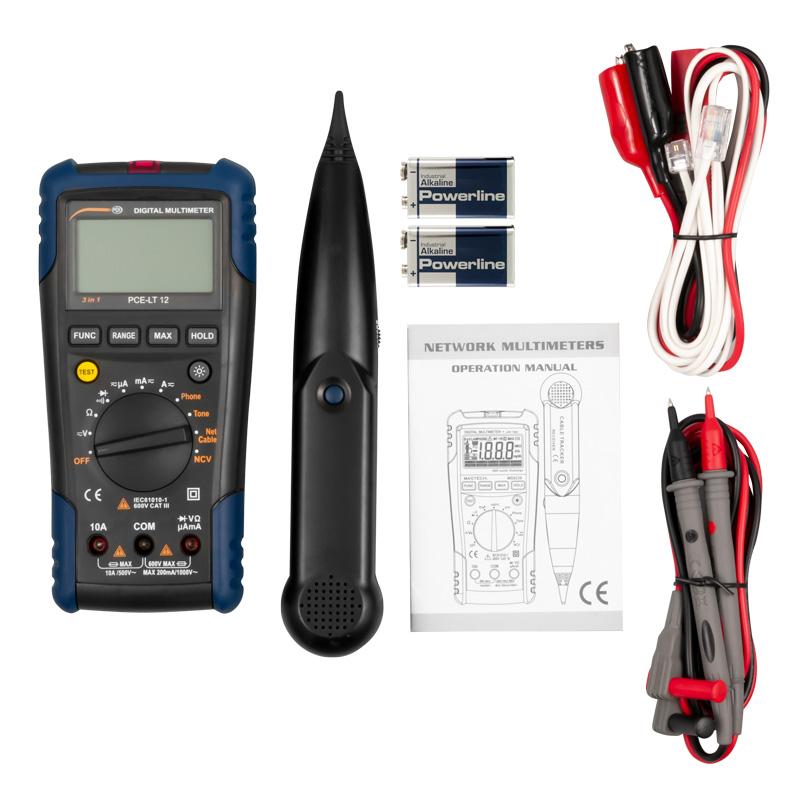

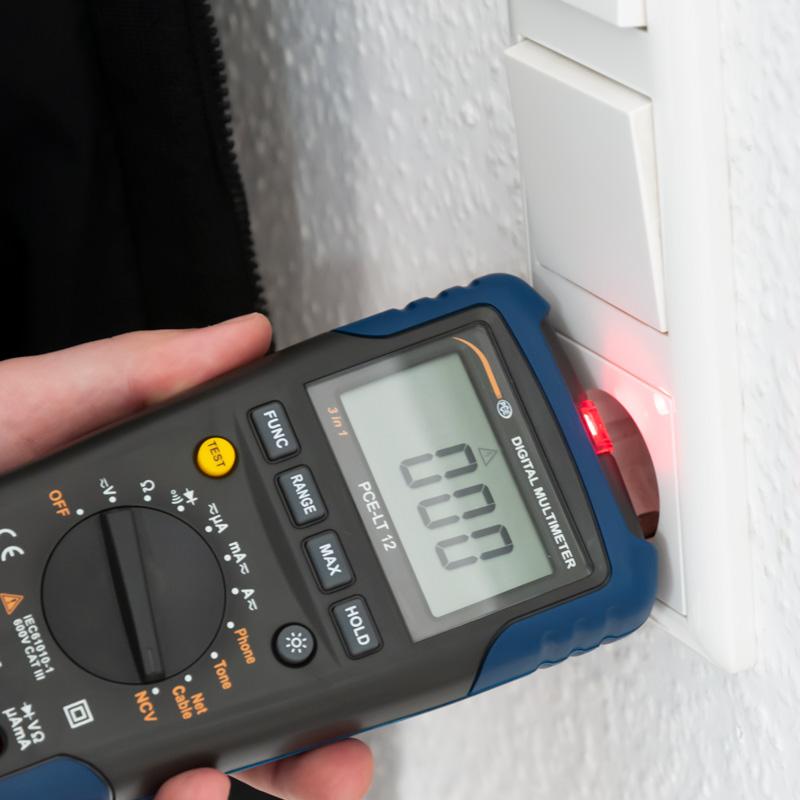

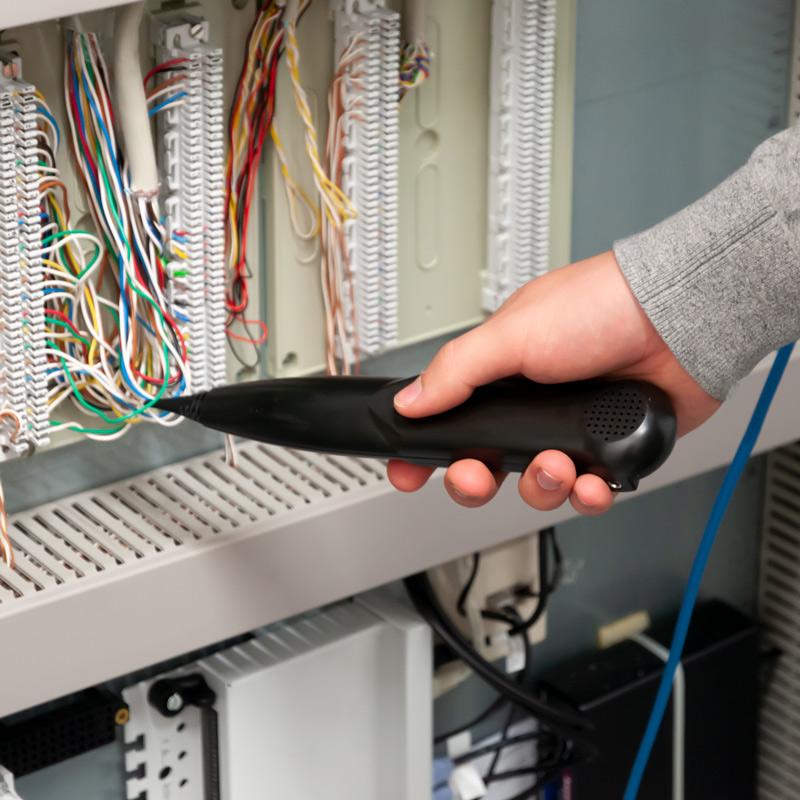

To trace a cable, connect the tester to one end of it. The tester then acts as a transmitter. The supplied receiver locates the cable in a wiring harness or behind walls. The NCV function detects voltage on a line when the tester is simply held against it. It signals voltage both audibly and visually, which reduces the risk of electric shock.
Highlights
- DC/AC voltage, DC/AC current and resistance
- LAN cable wiring and function test
- Telephone connection test
- Cable tracing with supplied receiver
- NCV with audible and visual signal
- MAX, HOLD, continuity and diode test

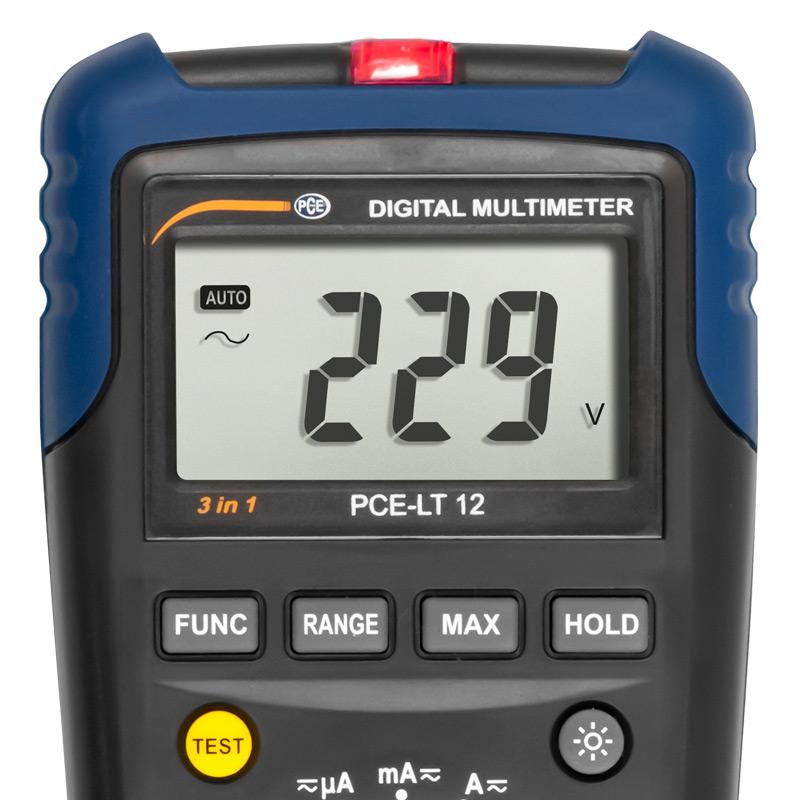

- Backlit 2,4 inch LCD
- Automatic and manual range selection
Specifications
| Direct voltage DC | |
|---|---|
| Measuring range | 0 ... 200 mV |
| Resolution | 0,1 mV |
| Accuracy | ±(0.5% +5 digits) |
| Measuring range | 0 ... 2 V |
| Resolution | 1 mV |
| Accuracy | ±(0.5% +5 digits) |
| Measuring range | 0 ... 20 V |
| Resolution | 0,01 V |
| Accuracy | ±(0.5% +5 digits) |
| Measuring range | 0 ... 200 V |
| Resolution | 0,1 V |
| Accuracy | ±(0.5% +5 digits) |
| Measuring range | 0 ... 1000 V |
| Resolution | 1 V |
| Accuracy | ±(0.8% +5 digits) |
| Direct current DC | |
| Measuring range | 0 ... 200 µA |
| Resolution | 0,1 µA |
| Accuracy | ±(1.2 % +5 digits) |
| Measuring range | 0 ... 2000 µA |
| Resolution | 1 µA |
| Accuracy | ±(1.2 % +5 digits) |
| Measuring range | 0 ... 20 mA |
| Resolution | 0,01 mA |
| Accuracy | ±(1.2 % +5 digits) |
| Measuring range | 0 ... 200 mA |
| Resolution | 0,1 mA |
| Accuracy | ±(1.2 % +5 digits) |
| Measuring range | 0 ... 2 A |
| Resolution | 0,001 A |
| Accuracy | ±(2% +5 digits) |
| Measuring range | 0 ... 20 A |
| Resolution | 0,01 A |
| Accuracy | ±(2% +5 digits) |
| AC voltage | |
| Measuring range | 0 ... 200 mV |
| Resolution | 0,1 mV |
| Accuracy | ±(0.8% +5 digits) |
| Frequency range | 40 ... 400 Hz |
| Measuring range | 0 ... 2 V |
| Resolution | 1 mV |
| Accuracy | ±(0.8% +5 digits) |
| Frequency range | 40 ... 400 Hz |
| Measuring range | 0 ... 20 V |
| Resolution | 0,01 V |
| Accuracy | ±(0.8% +5 digits) |
| Frequency range | 40 ... 400 Hz |
| Measuring range | 0 ... 200 V |
| Resolution | 0,1 V |
| Accuracy | ±(0.8% +5 digits) |
| Frequency range | 40 ... 400 Hz |
| Measuring range | 0 ... 750 V |
| Resolution | 1 V |
| Accuracy | ±(0.8% +5 digits) |
| Frequency range | 40 ... 400 Hz |
| Alternating current AC | |
| Measuring range | 0 ... 200 µA |
| Resolution | 0,1 µA |
| Accuracy | ±(1.5 % +5 digits) |
| Overload | Overload protection for µA, mA: 200 mA / 1000V fuse Overload protection at A: 10 A / 500V fuse |
| Frequency range | 40 ... 400 Hz |
| Measuring range | 0 ... 2000 µA |
| Resolution | 1 µA |
| Accuracy | ±(1.5 % +5 digits) |
| Frequency range | 40 ... 400 Hz |
| Measuring range | 0 ... 20 mA |
| Resolution | 0,01 mA |
| Accuracy | ±(1.5 % +5 digits) |
| Frequency range | 40 ... 400 Hz |
| Measuring range | 0 ... 200 mA |
| Resolution | 0,1 mA |
| Accuracy | ±(1.5 % +5 digits) |
| Frequency range | 40 ... 400 Hz |
| Measuring range | 0 ... 2 A |
| Resolution | 0,001 A |
| Accuracy | ±(3% +5 digits) |
| Frequency range | 40 ... 400 Hz |
| Measuring range | 0 ... 20 A |
| Resolution | 0,01 A |
| Accuracy | ±(3% +5 digits) |
| Frequency range | 40 ... 400 Hz |
| Resistance | |
| Measuring range | 0 ... 200 Ω |
| Resolution | 0,1 Ω |
| Accuracy | ±(1.0% +5 digits) |
| Measuring range | 0 ... 2 kΩ |
| Resolution | 0,001 kΩ |
| Accuracy | ±(1.0% +5 digits) |
| Measuring range | 0 ... 20 kΩ |
| Resolution | 0,01 kΩ |
| Accuracy | ±(1.0% +5 digits) |
| Measuring range | 0 ... 200 kΩ |
| Resolution | 0,1 kΩ |
| Accuracy | ±(1.0% +5 digits) |
| Measuring range | 0 ... 2 M Ω |
| Resolution | 0,001 M Ω |
| Accuracy | ±(1.0% +5 digits) |
| Measuring range | 0 ... 20 M Ω |
| Resolution | 0,01 M Ω |
| Accuracy | ±(1.0% +5 digits) |
| General technical data | |
| Measuring functions | MAX, HOLD, Continuity test |
| Display type | LCD with backlight |
| Display size | 2,4 Inch |
| Automatic power-off | 15 min |
| Fuse(s) | F10A / 500V, F200mA/1000A |
| Measuring range selection | Automatic, Manual |
| Diode test | Displays the forward voltage. |
| max. input current | µA: 2000 µA mA: 200 mA A: 10 A |
| Max. input voltage | 750V AC 1000V DC |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Battery | 2 x 9 V 9V block , Alkali-manganese |
| Capacity | 640 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 80 % RH |
| Storage conditions | -10 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 195 x 92 x 55 mm |
| Other dimensions | Receiver: L 240 x W 43 x H 24 mm |
| Weight | 400 g |
| Other weights | Receiver: 70 g |
