PCE-LT 15 - Network Cable Tester
| Measurement function | AC | Reading |
| Measurement range | 400 mV | 0.1 mV |
| 4V | 1 mV | |
| 40V | 10 mV | |
| 400V | 100 mV | |
| 750V | 1V | |
| Accuracy | ± (1% of + 5 Dgt) | |
| Measurement function | DC | Reading |
| Measurement range | 400 mV | 0.1 mV |
| 4 V | 1 mV | |
| 40V | 10 mV | |
| 400V | 100 mV | |
| 1000V | 1V | |
| Accuracy | ± (0.5% of v / m + 3Dgt) | |
| Measurement function | Resistance | Reading |
| Measurement range | 400 Ω | 0.1 Ohm |
| 4 kΩ | 1 Oh | |
| 40 kΩ | 10 Ω | |
| 400 kΩ | 100 Ohms | |
| 4 MΩ | 1 kΩ | |
| Accuracy | ± (1.2% of + 3 Dgt) | |
| Resistance | Reading | |
| 40 MΩ | 10 kΩ | |
| Accuracy | ± (2% of + 4 Dgt) | |
| Continuity test | 400 Ω | |
| Alarm | value <25Ω | |
| Screen | LED bar graph for LAN controllers | |

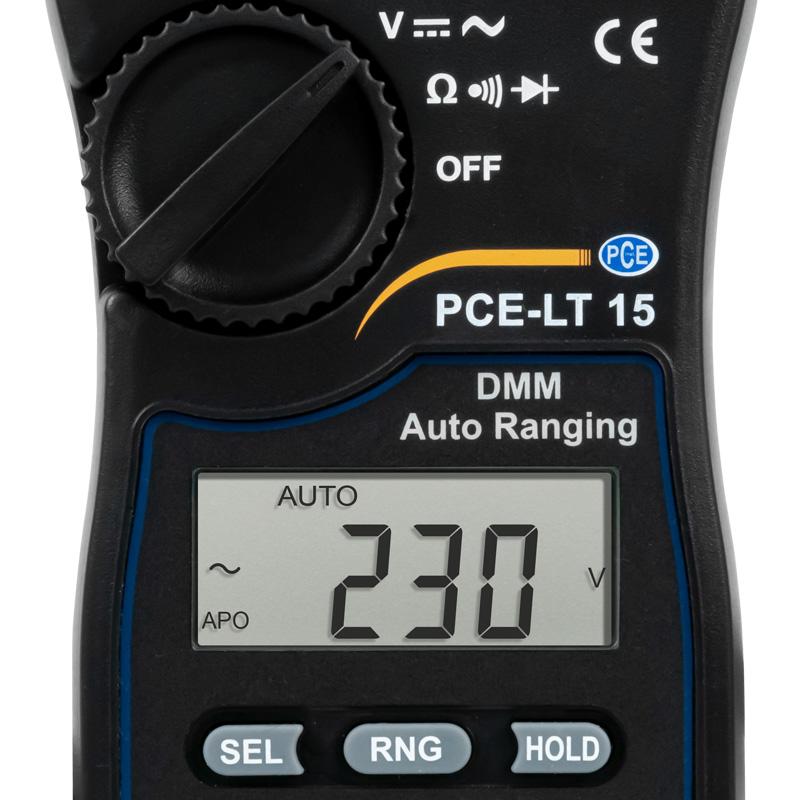

| LC display for multimeter functions | ||
| Power supply | LAN tester: 1 x 9V 6F22 battery | |
| Multimeter: 2 x 1.5V AAA battery | ||
| Dimensions | Earpiece: 165 x 82 x 42 mm / 6.5 x 3.2 x 1.7 in | |
| Remote unit: 75 x 30 x 25 mm / 3 x 1.2 x 1 in | ||
| Weight | Headphone: 240g / < 1lb | |
| Remote unit: 30g / < 1lb | ||
| Electrical safety | CAT III 600V | |
Digital multimeter PCE-LT 15/
LAN tester for quick inspection of network cables / Combination device consisting of LAN tester and multimeter with voltage and resistance measurement
LAN tester for quick inspection of network cables / Combination device consisting of LAN tester and multimeter with voltage and resistance measurement

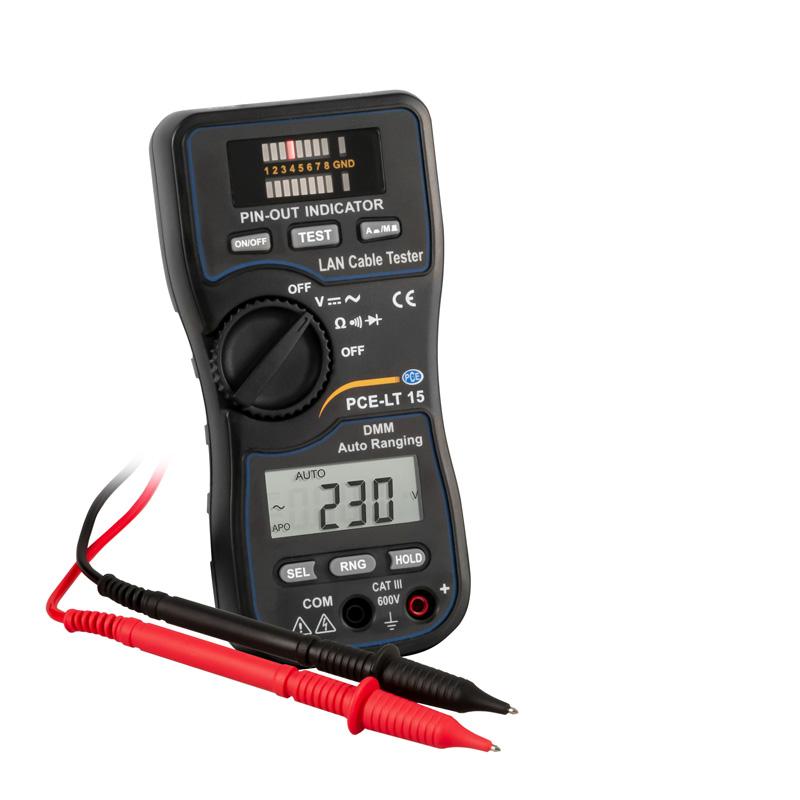

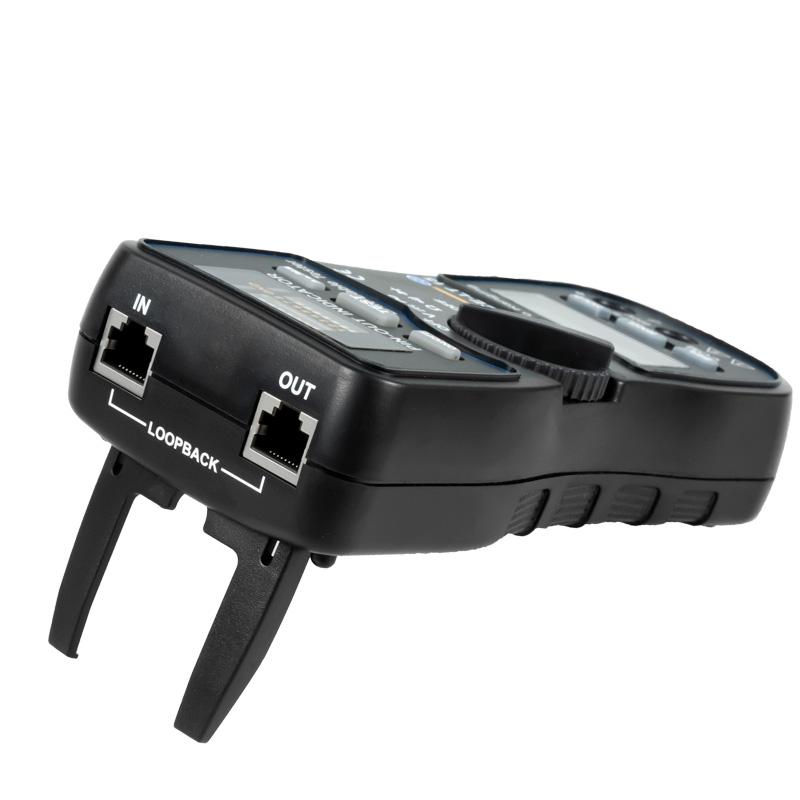

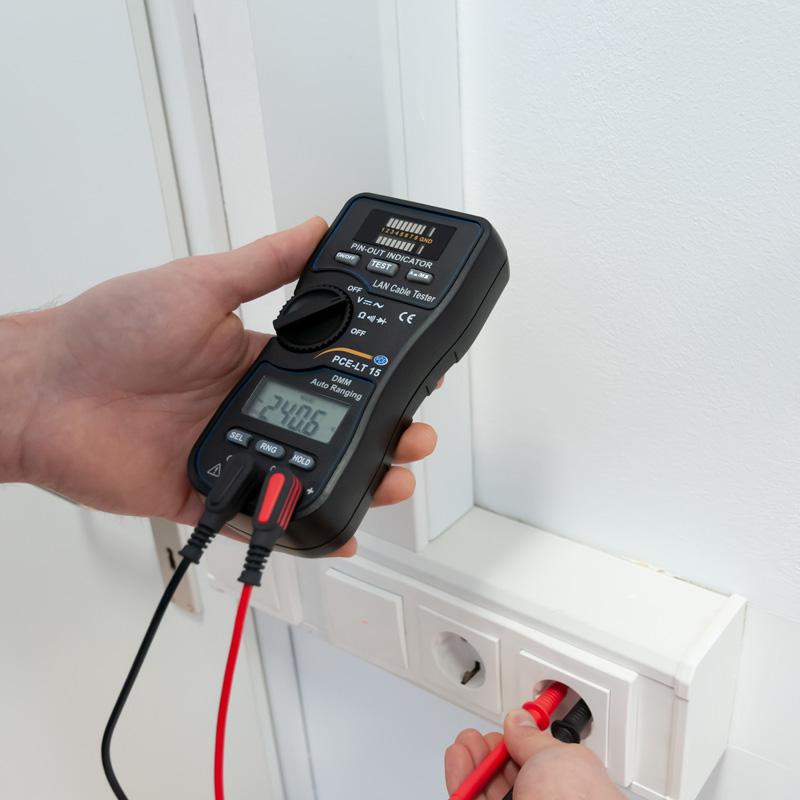

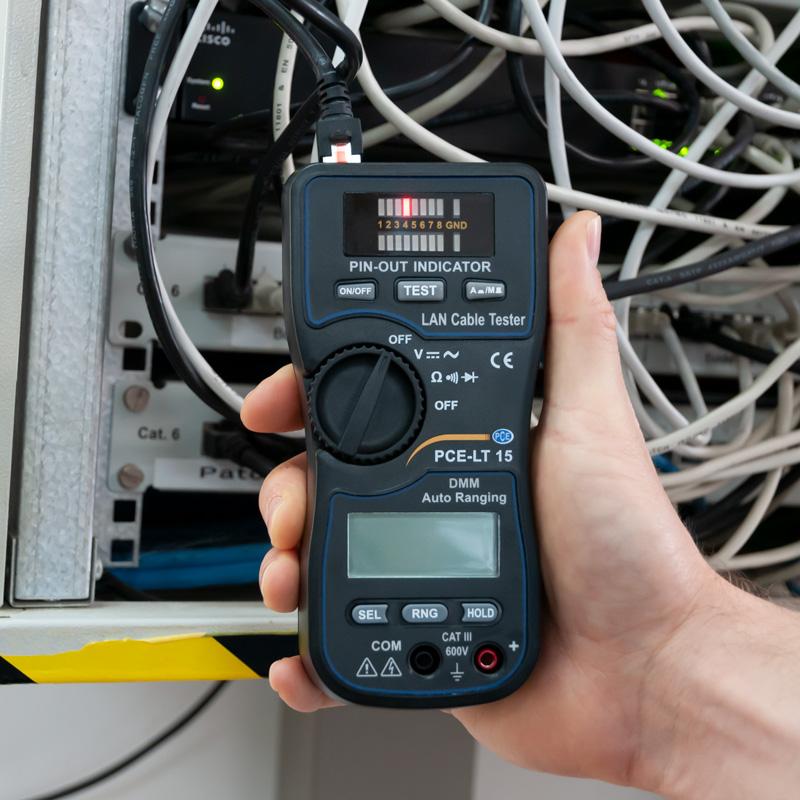

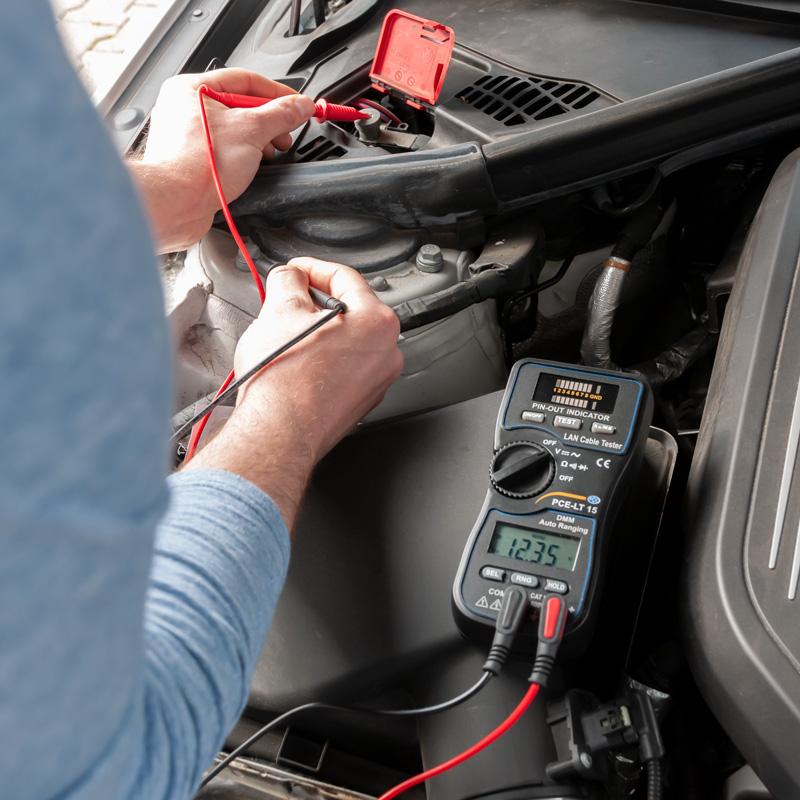

The PCE-LT 15 LAN tester is a device that locates faults in network installations and at the same time can be used as a multimeter for measuring DC and AC voltage. With the LAN tester PCE-LT 15 it is possible to test 8-pin data cables with RJ-45 connectors for continuity, open connections and short circuits. For continuity testing, a buzzer is used as it also provides a diode test facility.

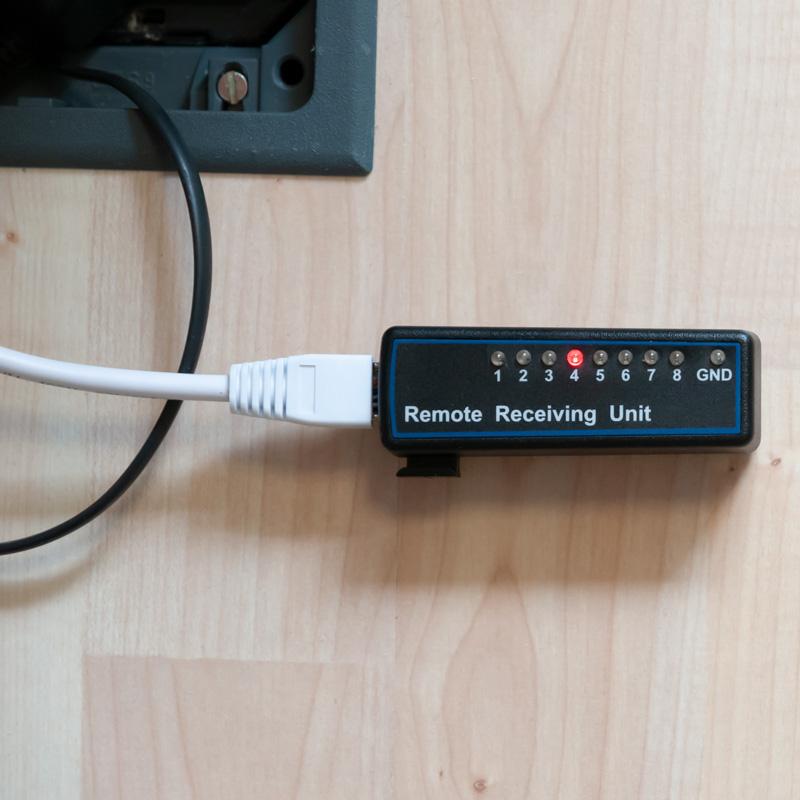

During measurement, two rows of LEDs sequentially indicate the pin assignment of the cable under test. In the case of a short circuit, more than two lamps light up at the same time.
- Combined LAN tester and multimeter
- LCD
- Checks Lankabel and patch fields
- Continuity test and diode test capability
- Overload indicator
- Short circuit indicator

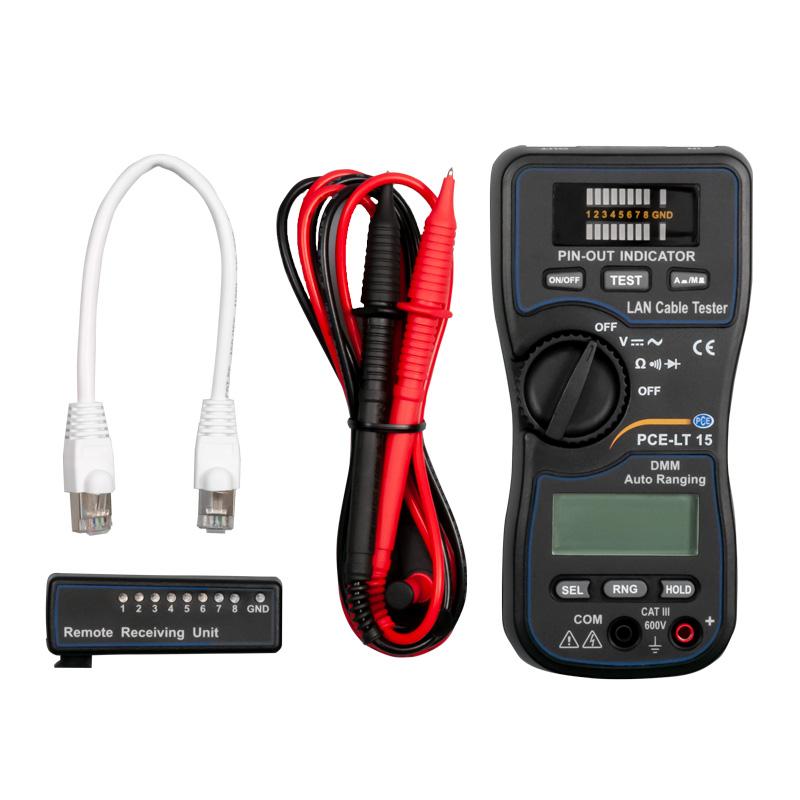

Package contents
1 x PCE-LT 15 Multimeter
1 x Remote Control Unit
1 x RJ45 connection cable
1 x Test Cable Set
1 x Remote Control Unit
1 x RJ45 connection cable
1 x Test Cable Set
2 x 1.5V AAA batteries
1 x 9V battery
1 x User Manual
1 x 9V battery
1 x User Manual
