PCE-MPC 30 - Dust Meter - HCHO(formaldehyde) - Air Quality - PM2.5 / PM10
| Measurable particle sizes | PM 2.5 and PM 10 |
| Measurement range | 0 ... 2000 µg / m³ |
| Reading | 1 μg / m³ |
| Particle counter | |
| Measurable particle sizes | 0.3, 2.5, 10 µm |
| Air supply | 2.83 L/min (0.1 ft³) |
| Measurement efficiency | 50% at 0.3 µm |
| 100% with particle size > 0.45 µm | |
| Error | <5% at 2,000,000 particles per ft³ |
| Data storage | 5000 data records (micro SD card) |
| Measurement functions | Cumulative, Differential, Concentration |
| Measurement of HCHO-formaldehyde | |
| Measurement range | 0.01 ... 5.00 ppm |
| Accuracy | ± 5% |
| Reading | 0.01 ppm |
| Measurement of air temperature and relative humidity | |
| Air temperature measurement range | 0 ... 50 ° C, 32 ... 122 ° F |
| Measuring range Dew point | 0 ... 50 ° C, 32 ... 122 ° F |
| Relative humidity measurement range | 0 ... 100% RH |
| Accuracy of air temperature measurement | 10 ... 40 ° C: ± 1 ° C, ± 1.8 ° F |
| Other: ±2°C, ±3.6°F | |
| Dew point temperature measurement accuracy | 10 ... 40 ° C: ± 1 ° C, ± 1.8 ° F |
| Other: ±2°C, ±3.6°F | |
| Relative humidity accuracy | 0 ... 20% RH Humidity: ± 5% |
| 20 ... 80% RH Humidity: ± 3.5% | |
| 80 ... 100% fig. Enclosure: ± 5% | |
| More specs | |
| Operating conditions | 0 ... +50 ° C, 10 ... 90% RH, |
| without condensation | |
| Storage conditions | -10 ... +60 ° C, 10 ... 90% RH, |
| without condensation | |
| Screen | 2.8 inch, 320 x 240 pixel, backlit color LCD |
|
Power adapter |
Mains: 100 ... 240 V AC, 50/60 Hz, 0.6 A. |
| Secondary: 9 V DC, 1500 mA | |
| Power battery | 7.4V, 1200mAh, 8.88Wh |
| Battery life | ~4 hours in continuous operation |
| Battery charging time | ~2 hours with AC adapter |
| Dimensions | 240 x 75 x 57 mm |
| Weight | 570 gr |
Particle measuring device with data logger / HCHO measurement / Battery for portable use /
2.8" TFT display / Mass concentration measurement / Data storage on SD card
The PCE-MPC 30 counter determines the number of particles in the 0.3, 2.5 and 10 µm size range. In addition to measuring particles, the device can measure the mass concentration of PM 2.5 and PM 10. Mass concentration determines the weight of particles in a cubic meter.
The PCE-MPC 30 additionally determines the formaldehyde content of the air in ppm, the temperature, the ambient humidity and the dew point, the values of which are displayed on the screen and simultaneously stored in the internal memory.
- Particle counter, HCHO, temperature, humidity, dew point measurement
- Record measured value for later analyses
- Large 2.8 inch LC display, 320 x 240 pixels
- Mass concentration of PM 2.5 and PM 10
- Battery for portable use
- Dew point and wet bulb temperature

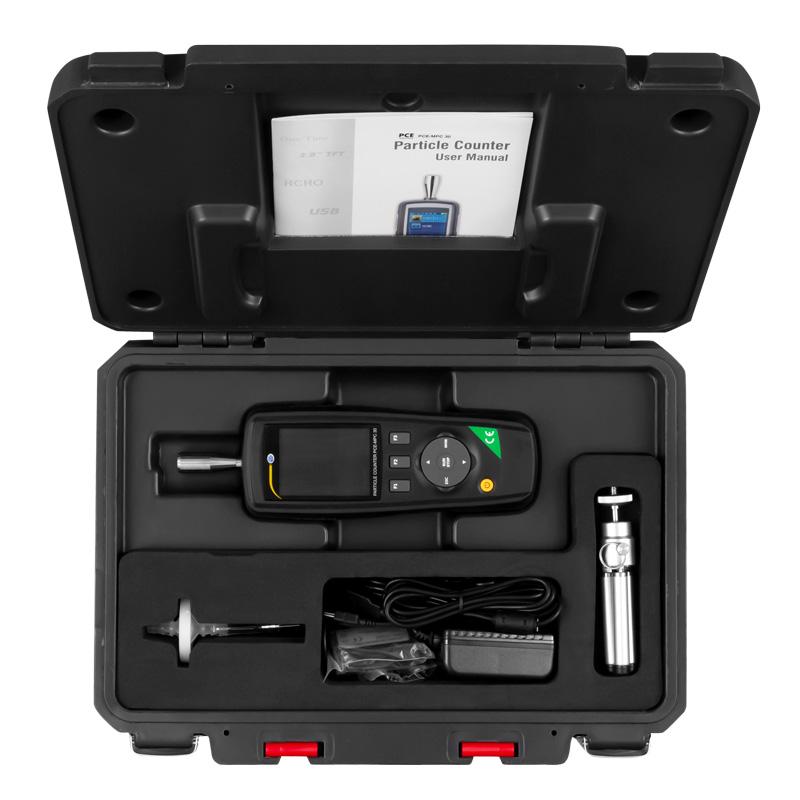

Package contents
1 x PCE-MPC 30 Meter
1 x Zero Filter
1 x Battery
1 x Charger
1 x Mini USB cable

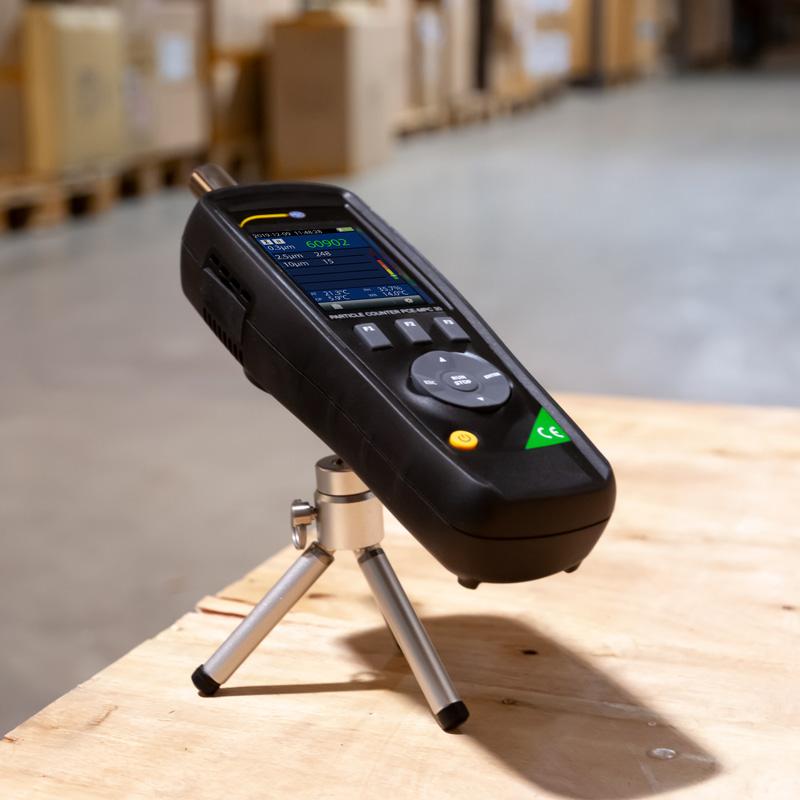

1 x Mini Tripod
1 x Hard case
1 x Instruction Manual
