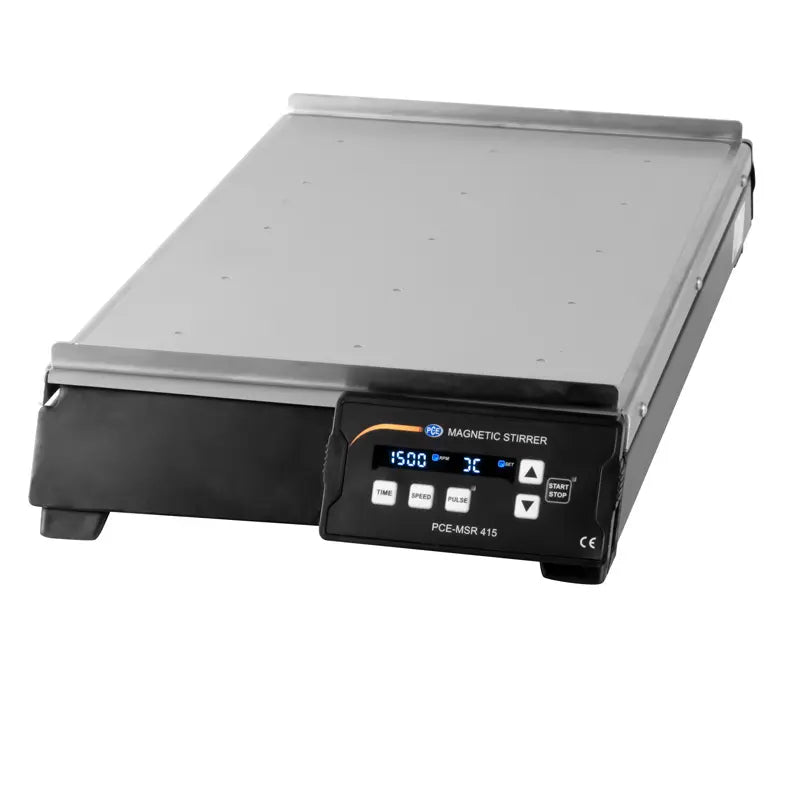

PCE-MSR 415 - Magnetic Stirrer 15 positions
| Number of stirring points | 15 |
| Energy consumption | 15W |
| Maximum amount of stirring | 400 ml per stirring point |
| Stirring point surface | 80 mm |
| Adjustable speed | 300 ... 1500 rpm |
| Speed accuracy | 10 rpm |
|
Timer range |
1 ... 999 minutes, infinite |
| Recommended stirring rod length | 25 mm |
| Protection class | IP 42 |
| Operating conditions | 5 ... 40 °C / max 80 RH |
| Power supply / power consumption | 110 V AC / 3.6 A |
| 230 V AC / 1.7 A | |

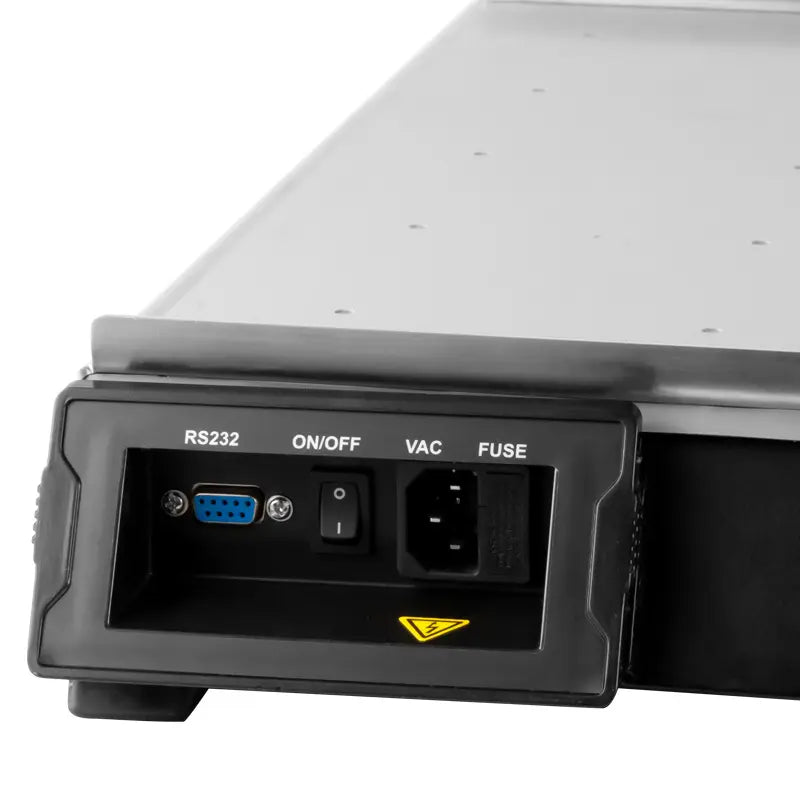

| Exit | RS232 for service purposes only |
| Agitation area dimensions | 460 x 264 mm |
| Dimensions | 568 x 282 x 76 mm |
| Weight | about 6 kilos |

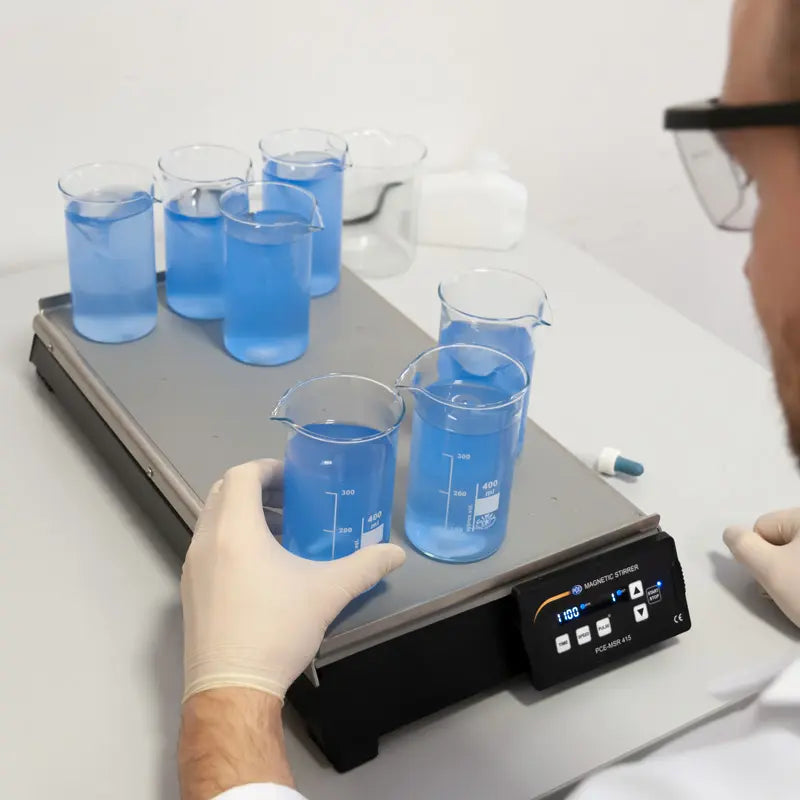

Multi-position magnetic stirrer up to 400 ml per stirring point / 15 stirring points / Adjustable speed 300 to 1500 rpm / Timer function / Pulse function
This multi-position magnetic stirrer is particularly suitable for serial screening. The 10 synchronized rotating stirring points of the magnetic stirrer with an adjustable stirring speed between 300 and 1500 rpm in 10 rpm steps can stir volumes of up to 400 ml per stirring point in vessels with a diameter of approximately 80 mm. Stirring times can be set from 1 to 999 minutes. The PCE-MSR 410 has a pulse stirring function, that is to periodically stir the solutions for specific time intervals as well as the function of changing the direction of stirring. The magnetic stirrer provides a time interval between 30 and 99 seconds as the change interval.
The stirring platform of the magnetic stirrer is made of stainless steel and coated with a layer of silicone to prevent slipping.
- 15 stirring points
- Adjustable speed from 300 to 1500 rpm
- Silicone coated stainless steel platform
- 400 ml per stirring point
- Timer and pulse function
- 110 V or 230 V power supply

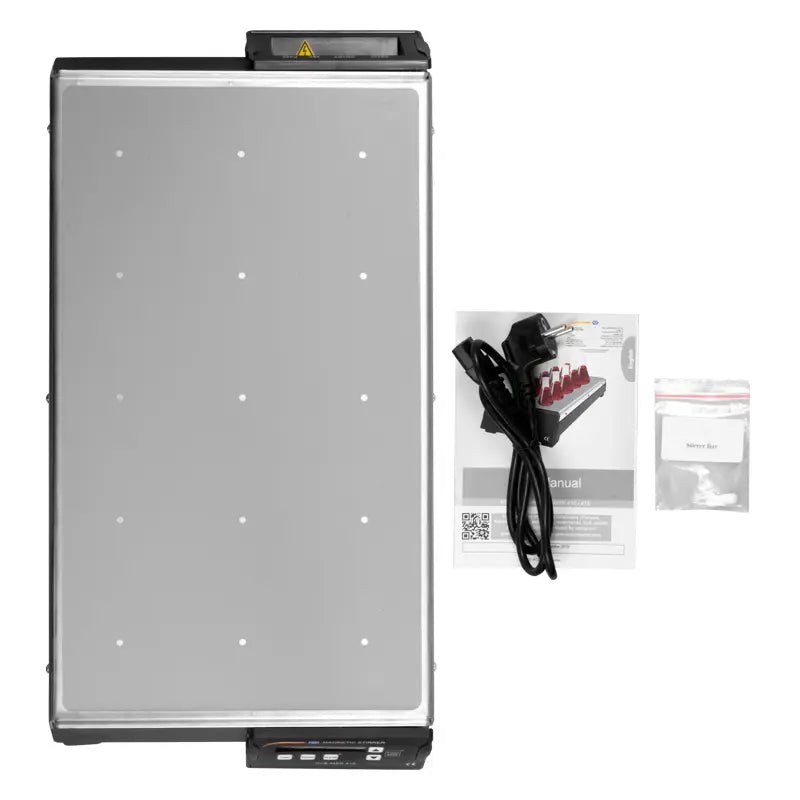

Package contents
1 x PCE-MSR 410 Multi-Position Magnetic Stirrer
1 x 25mm stir bar
1 x Connecting cable
1 x User Manual
1 x 25mm stir bar
1 x Connecting cable
1 x User Manual
