pH Probe for Wine

• For wine, beer and low-conductivity liquids
• pH range 0 ... 14 pH
• Glass body, AgCl reference
• BNC connection

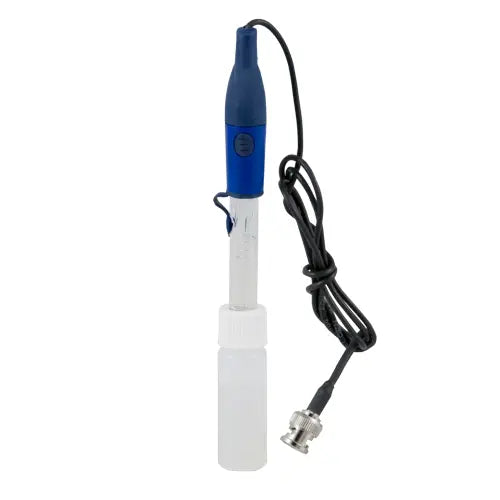

The PCE-PH-WINE is a pH electrode for wine, beer and other liquids with low conductivity. It covers 0.0 ... 14.0 pH at 0 ... +80.0 °C / 32 ... 176 °F.

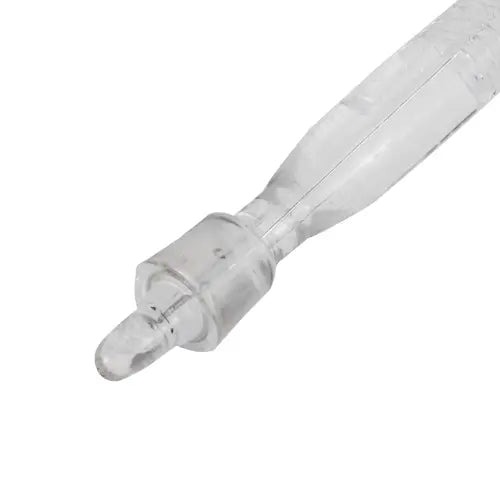

The measuring body is glass, with a double secured AgCl (silver chloride) reference and a ceramic diaphragm. Response time is < 30 sec. (95%) and the EO point is -25 ... 25 mV. The shaft is 120 mm / 4.7" long with a diameter of 12 mm / 0.47". The 1 Meter / 3.2 ft cable ends in a BNC connector.

Highlights

• pH measuring range 0 ... 14 pH
• Temperature range 0 ... 80 °C / 32 ... 176 °F
• Glass measuring body
• AgCl reference, double secured
• Ceramic diaphragm
• Response time < 30 sec. (95%)
• EO point -25 ... 25 mV
• Shaft 120 mm / 4.7", diameter 12 mm / 0.47"
• 1 Meter / 3.2 ft cable, BNC connection
