KIT Conductivity, pH, TDS, Salinity, Temperature Measurement Multimeter (Redox with extra Probe)
PCE-PHD-1-KIT1
| pH measurement |
automatic 10 ... 40 °C / 50 ... 104 °F |
| Measurement range | 0.00 ... 14.00 pH |
| Reading | 0.01 pH |
| Accuracy | ± 0.02 pH +2 digits |
| Calibration | 2-point calibration (pH4, pH7) |
| Temperature compensation | Automatic with additional temperature sensor (0 ... 60 ºC / 32 ... 140 ºF) or manual (0 ... 100 ºC / 32 ... 212 ºF) |
| Measurement redox | |
| Measurement range | 1999 ... 0 ... 1999 mV |
| Reading | 1 mV |
| Accuracy | ± 0.5 % + 2 digits |
| Measurement conductivity | |
| Measurement range |
0 ... 200 μS/cm 0.2 ... 2.0 mS/cm 2 ... 20.0 mS/cm 20 ... 200 mS/cm |
| Reading |
0.1 μS/cm 0.001 mS /cm 0.01 mS/cm 0.1 mS/cm |
| Accuracy | ± 2 % of the measuring range + 1 digit |
| Calibration | at 1413 μS/cm |
| Temperature compensation | Automatic (0 ... 60 ºC / 32 ... 140 ºF) |
| Total Dissolved Solids (TDS) Measurement | |
| Measurement range |
0 ... 132 ppm 132 ... 1320 ppm 1320 ... 13200 ppm 13200 ... 132000 ppm |
| Reading |
0.1 ppm 1 ppm 10 ppm 100 ppm |
| Accuracy | ± 2 % of the measuring range + 1 digit |
| Temperature compensation | Automatic (0 ... 60 ºC / 32 ... 140 ºF) |
| Measurement Salinity | |
| Measurement range |
0 ... 20 mg/l (in water) 0 ... 100 % (in air) 0 ... 50 °C / 32 ... 122 ºF |
| Reading |
0.1 mg/l 0,1 % 0.1 °C |
| Accuracy |
± 0.4 mg/l ± 0.7 % ± 0.8 °C |
| Calibration | In air |
| Temperature compensation | Automatic (0 ... 50 ºC / 32 ... 122 ºF) |
| Electrode usable in the pH range | pH 4 ... pH 10 |
| Temperature Measurement | |
| Measurement range | 0 ... 60 °C / 32 ... 140 ºF |
| Resolution | 0.1 °C |
| Accuracy | ± 0.8 °C |
| General Features | |
| Measurement rate | adjustable from 1 second to 8 hours 59 minutes 59 seconds |
| Display | LC display 52 x 38 mm / 2 x 1.5" |
| Memory | flexible via SD card memory 1 ... 16 GB |
| Exit | RS-232 |
| Software | available as accessory (optional) |
| Power supply | 6 x 1.5 V AA batteries / 9 V power supply (optional) |
| Operating conditions | 0 ... +50 °C / < 85 % RH |
| Dimensions | 177 x 68 x 45 mm / 7.0 in x 2.7 in x 1.8 in |
| Weight | 490 g / 1.1 lbs |
Kit with pH, conductivity, salinity, oxygen, and temperature meter / SD card memory (1 ... 16 GB) / Data is stored in Excel format / Mlarge, easy-to-read display / RS-232 output and optional software for direct transfer to computer
The PCE-PHD-1-KIT1 is a multifunction instrument for water quality control. The portable data logger is used to check pH, redox, conductivity, salinity, oxygen, and temperature parameters.
2-point calibration and automatic temperature compensation guarantee high accuracy even with large measurement temperature fluctuations. All values can be stored directly on the SD card (1 ... 16 GB) as an Excel file or transferred via the RS-232 output directly to a computer.
- SD memory card (1 ... 16 GB)
- data is stored directly as an Excel file on the SD card (no software required for evaluation)
- RS-232 output for online data transmission
- Measures pH, redox (optional), conductivity, salinity, oxygen, and temperature
- High accuracy
- Large LCD display with low power consumption
- Adjustable measurement rate
- Easy to use
- Robust housing
- Includes pH and conductivity electrode
- Automatic calibration
- Manual or automatic temperature compensation
- BNC plug
- Suitable for laboratory and on-site measurement
- REDOX electrode (optional)

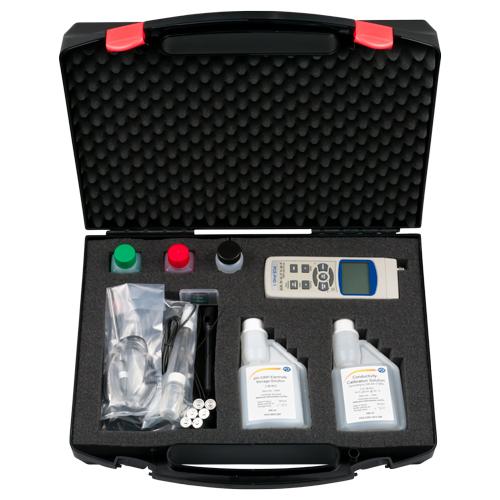

Package contents
1 x PCE-PHD-1-KIT1
1 x Oxygen probe OXPB-11
1 x pH electrode PCE-PE-03
1 x Conductivity electrode PCE-CDPB-03
1 x Temperature sensor PCE-TP-07
1 x SD memory card 2 GB
1 x Storage solution PCE-SSO-250 (250 ml)
1 x Calibration solution PCE-PH4-50 (50 ml)
1 x Calibration solution PCE-PH7-50 (50 ml)
1 x Electrolyte solution OXEL-03 for oxygen detector (50 ml)
1 x Conductivity solution PCE-CDS-1413-250 (250 ml)
6 x batteries
1 x User manual
1 x Carrying case
1 x Oxygen probe OXPB-11
1 x pH electrode PCE-PE-03
1 x Conductivity electrode PCE-CDPB-03
1 x Temperature sensor PCE-TP-07
1 x SD memory card 2 GB
1 x Storage solution PCE-SSO-250 (250 ml)
1 x Calibration solution PCE-PH4-50 (50 ml)
1 x Calibration solution PCE-PH7-50 (50 ml)
1 x Electrolyte solution OXEL-03 for oxygen detector (50 ml)
1 x Conductivity solution PCE-CDS-1413-250 (250 ml)
6 x batteries
1 x User manual
1 x Carrying case
