Μετρητής σκόνης PCE Instruments PCE-PQC 30EU με έγχρωμη οθόνη αφής και αισθητήρα/σωλήνα δειγματοληψίας επάνω
Τεχνικά χαρακτηριστικά PCE-PQC 30EU - Μετρητής Σκόνης 0.3-25μm - Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm variable binning
Μετρητής σκόνης PCE Instruments PCE-PQC 30EU με έγχρωμη οθόνη αφής και αισθητήρα/σωλήνα δειγματοληψίας επάνω
Τεχνικά χαρακτηριστικά PCE-PQC 30EU - Μετρητής Σκόνης 0.3-25μm - Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm variable binning

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-PQC 30EU On Order
€6.038,00
€7.487,12
0
Measuring range 0.3 ... 25 μm
Channel size measurement Factory calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
Measurement efficiency 50% at 0.3 μm, 100% at > 0.45 μm according to JIS

Air supply 2.83 liters / minute (0.1 ft³ / minute)
Random loss 10% at 15000000 particles / ft³
Light source Long-life diode laser
Zero measurement < 1 measurement / 5 minutes (< 2 particles / ft3) according to ISO 21501-4 and JIS

Measurement functions Automatic, Manual, Real-time, Cumulative/Differential, Mass concentration

Alarm 1 ... 9999999 measurements
Acoustic alarm Adjustable, built-in
Calibration Detectable in NIST
Display 4.3" WQVGA color touch, 480x272 pxl
Configuration Memory for 50 custom sets
Standards ISO 21501-4 and JIS B9921
Dimensions 13.3 x 5.8 x 22.6 cm
Weight 1.18 kg / 2.6 lbs
Storage 45000 data sets (ring memory) consisting of:
  Particle measurement, temperature and humidity
Sampling duration 1 s ... 99 h adjustable
Power 110 ... 240V AC 50/60 Hz
Operating conditions 5 ... 40°C / 41 ... 104°F
  Up to 95% RH without condensation
Storage conditions 0 ... 50°C / 32 ... 122°F
  Up to 98% RH without condensation
Device material Stainless steel

Connectivity Ethernet, USB
Optional connections Wifi 802.11 b / g, RS485 or RS232
Number of measurement channels 6

Particle counter PCE-PQC 30EU with calibration certificate
/ Real-time measurement / Data logger / Remote access to measurement data / Expandable with different weather sensors / Mountable on rod and wall

The PCE-PQC 30EU particle measuring device measures 6 user-selectable particle size channels and (optionally) temperature and relative humidity. Via Ethernet or (optionally) Wireless 802.11 b / g, RS485 or RS232 connection, the counter easily integrates into a building management network. The counter stores up to 45,000 measured values with time stamps.

The particle counter can be controlled and monitored remotely via a browser. Additionally, it can be permanently mounted on a wall or rod.

- Real-time particle measurement
- Internal memory
- Easy and ergonomic design
- Remote access via Ethernet or Wifi (optional)
- Gravimetric filter
- Optional temperature/humidity sensor
- Includes NIST traceable calibration certificate
- Standards: ISO 21501-4 and JIS B9921
Package contents
1 x Particle counter PCE-PQC 30EU
1 x Isokinetic sensor
1 x Power Supply
1 x Calibration certificate according to NIST
1 x User manual
Datasheet Technical datasheet Manual User manual
PCE Instruments

Official distributor

PCE Instruments

Η PCE Deutschland GmbH , γνωστή ως PCE Instruments , είναι μια γερμανική εταιρεία με έδρα το Meschede, που από το 1999 έως σήμερα έχει καθιερωθεί διεθνώς ως αξιόπιστος κατασκευαστής και προμηθευτής οργάνων μέτρησης, ελέγχου και ζύγισης. Η εταιρεία διαθέτει μια εξαιρετικά πλούσια γκάμα οργάνων – από μετρητές δόνησης, υγρασίας, θορύβου και θερμοκρασίας έως ζυγούς ακριβείας, αναλυτές, αισθητήρες και καταγραφικά δεδομένων – κ αλύπτοντας κάθε ανάγκη στον χώρο της βιομηχανίας, των εργαστηρίων και της έρευνας.

This product belongs to the collection

Gas Detectors - Dust Meters

You're viewing one product from this category. Browse the full range.

51 products
View all

Related categories

All categories →
Thermometers & Hygrometers Sound meters23 products Anemometers28 products Photometers13 products
Dust Meters

From our Wiki

Dust Meters

Dust meters (or particle counters) are air quality monitoring instruments that detect the concentration of suspended particles (Particulate Matter - PM). Their operation is usually based on laser scattering (laser scattering) technology, where a beam of light strikes the particles and the sensor calculates their size and quantity.

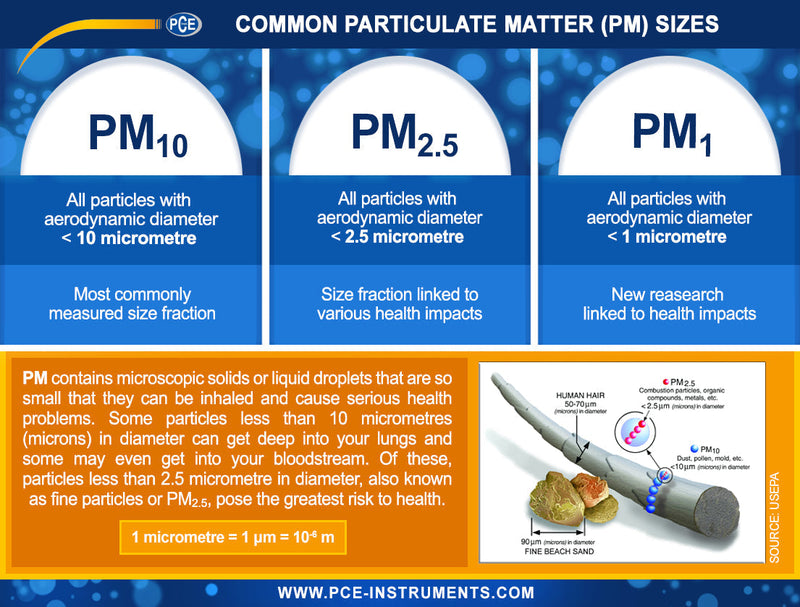

  • Particle Categories:PM2.5: Fine particles (up to 2.5 μm) that penetrate deep into the lungs and the bloodstream.PM10: Particles (up to 10 μm) such as dust, pollen, and mold.
  • Applications:Industry: Dust control in carpentry workshops, cement plants, and mines to protect workers.Cleanrooms (Cleanrooms): Certification of pharmaceutical or electronics production areas.Environment: Monitoring of air pollution and "smog" in cities.
  • Features: They include a data recording function (data logging), audible limit-exceedance alerts, and often also measure temperature and humidity in parallel.
