Gas Detectors - Dust Meters

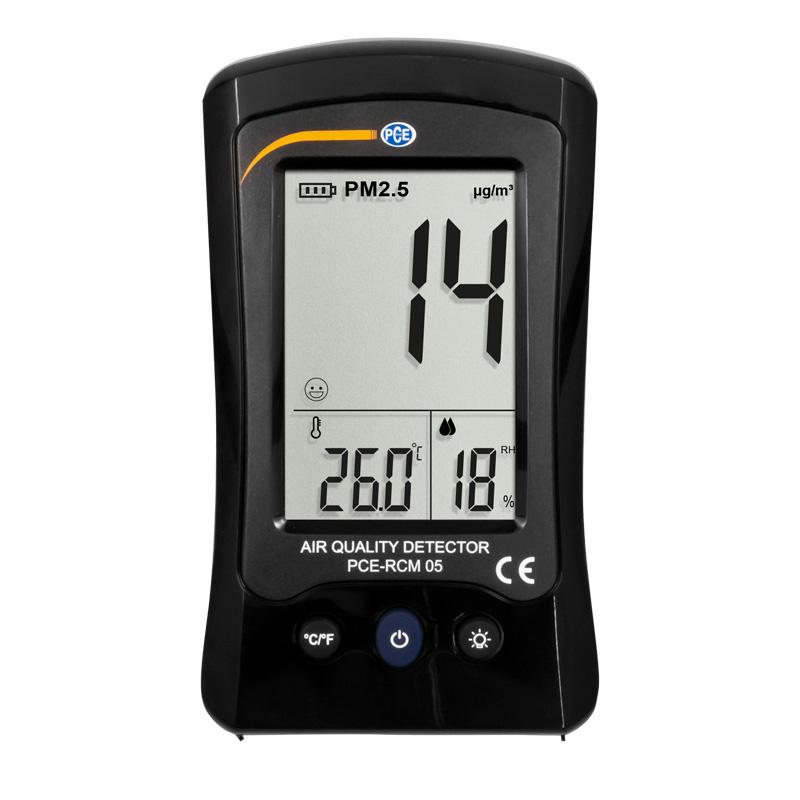

PCE Instruments PCE-RCM 05 PM2.5 dust meter, black, with large LCD display and function keys
PCE Instruments PCE-RCM 05 PM2.5 dust meter, black, with large display and front function keys

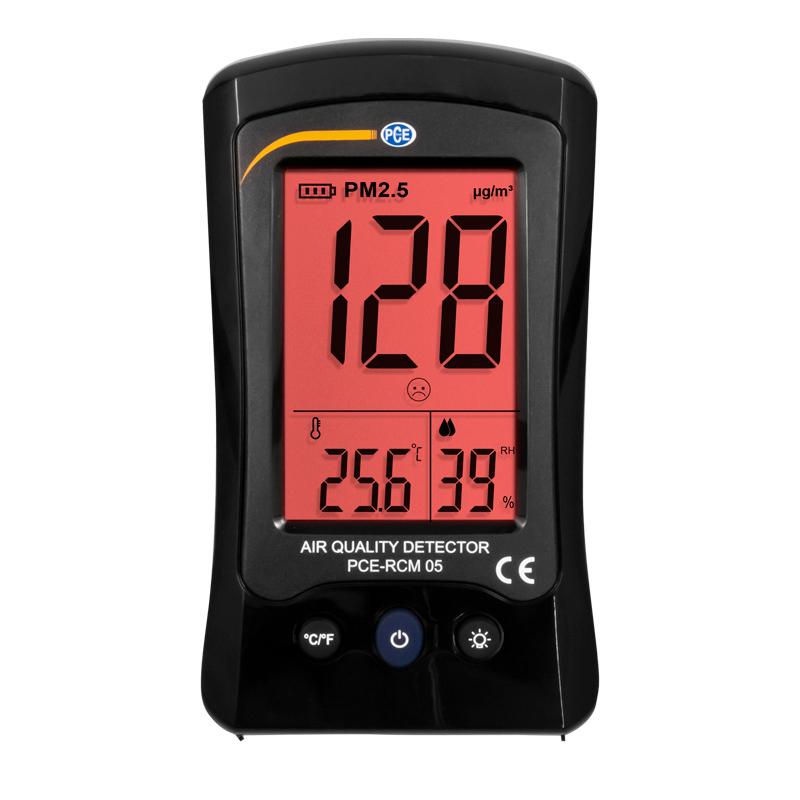

PCE Instruments PCE-RCM 05 PM2.5 dust meter with red LCD display and front control keys

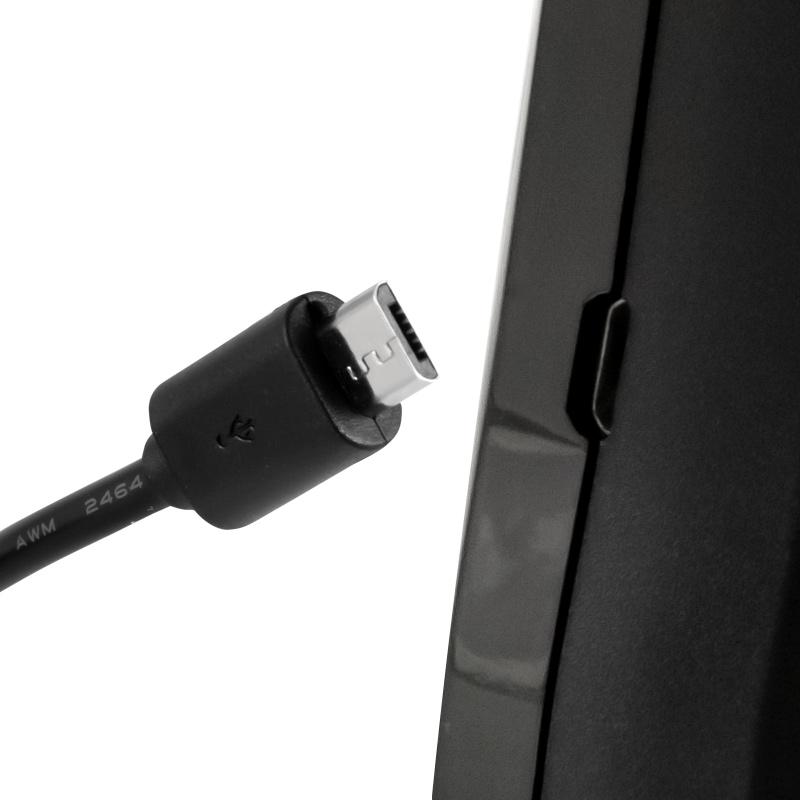

Black micro USB charging cable, close-up of the plug next to the PCE-RCM 05 device

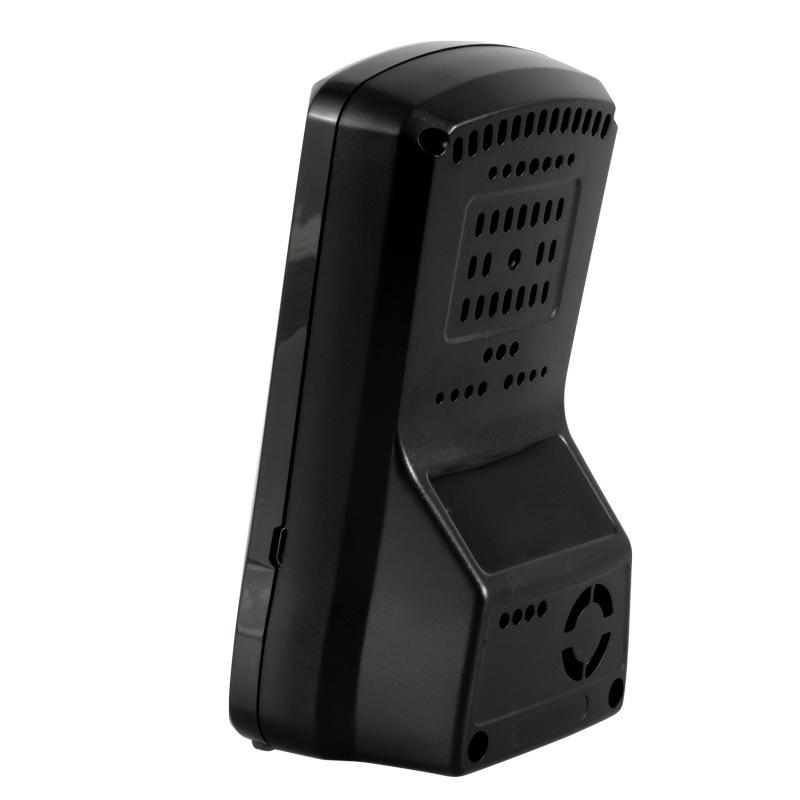

PCE Instruments PCE-RCM 05 PM2.5 dust meter, black device with ventilation grilles on the back
PCE Instruments PCE-RCM 05 PM2.5 dust meter, black with large display and control keys
PCE Instruments PCE-RCM 05 PM2.5 dust meter with large display and USB charging cable
Technical specifications PCE-RCM 05 - Dust meter - PM2.5
PCE Instruments PCE-RCM 05 PM2.5 dust meter, black, with large LCD display and function keys
PCE Instruments PCE-RCM 05 PM2.5 dust meter, black, with large display and front function keys
PCE Instruments PCE-RCM 05 PM2.5 dust meter with red LCD display and front control keys
Black micro USB charging cable, close-up of the plug next to the PCE-RCM 05 device
PCE Instruments PCE-RCM 05 PM2.5 dust meter, black device with ventilation grilles on the back
PCE Instruments PCE-RCM 05 PM2.5 dust meter, black with large display and control keys
PCE Instruments PCE-RCM 05 PM2.5 dust meter with large display and USB charging cable
Technical specifications PCE-RCM 05 - Dust meter - PM2.5

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-RCM 05
€207,00
€256,68
0
  • Continuous workplace PM2.5 monitoring
  • Range 0 ... 500 µg/m³
  • PM2.5, temperature and humidity
  • Alarm with red backlight
  • Battery powered

The PCE-RCM 05 is a PM2.5 particulate monitor for continuous dust measurement in the workplace. It shows PM2.5, temperature and humidity on the display. The measuring range is 0 ... 500 µg/m³ PM2.5. Pictograms below the large PM2.5 reading give a quick indication of air quality.

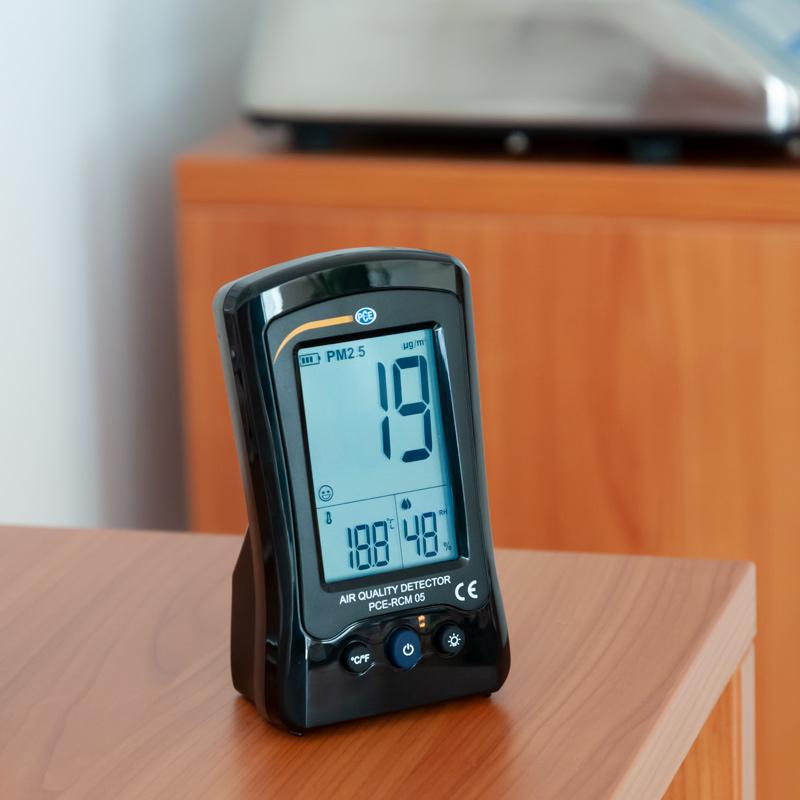

The monitor runs on a rechargeable battery. The illuminated LC display stays readable from any angle, for example with the meter on a desk. The backlight is white in normal operation and switches to red in the event of an alarm.

Highlights

  • PM2.5 fine dust measurement, 0 ... 500 µg/m³
  • Temperature and humidity shown on display
  • Illuminated LCD, readable from any angle
  • Backlight turns red on alarm
  • Pictograms indicate air quality
  • Rechargeable battery, charging via micro USB
Particle
Measuring range0 ... 500 µm
Relative humidity
Measuring range0 ... 99 % RH
Resolution1 % RH
Accuracy±5 % RH
Temperature
Measuring range0 ... 50 °C
Accuracy±1 °C
General technical data
Display typeLCD
Display size3 Inch
InterfaceMicro-USB
Operating time2 h
Power supplyRechargeable battery: 3.7 V
USB: 5 V/1A
(Rechargeable) battery1 x 3,7 V internal , Lithium-ion battery
Capacity1000 mAh
Operating conditions-10 ... 50 °C , 0 ... 85 % RH
Storage conditions-20 ... 60 °C , 0 ... 95 % RH
Dimensions ( L x W x H )130 x 75 x 55 mm
Weight195 g
  • 1×Particle Counter PCE-RCM 05
  • 1×Micro USB cable
  • 1×User manual
Datasheet Technical datasheet Manual User manual CE Certificate Quality document
PCE Instruments

Official distributor

PCE Instruments

Η PCE Deutschland GmbH , γνωστή ως PCE Instruments , είναι μια γερμανική εταιρεία με έδρα το Meschede, που από το 1999 έως σήμερα έχει καθιερωθεί διεθνώς ως αξιόπιστος κατασκευαστής και προμηθευτής οργάνων μέτρησης, ελέγχου και ζύγισης. Η εταιρεία διαθέτει μια εξαιρετικά πλούσια γκάμα οργάνων – από μετρητές δόνησης, υγρασίας, θορύβου και θερμοκρασίας έως ζυγούς ακριβείας, αναλυτές, αισθητήρες και καταγραφικά δεδομένων – κ αλύπτοντας κάθε ανάγκη στον χώρο της βιομηχανίας, των εργαστηρίων και της έρευνας.

This product belongs to the collection

Gas Detectors - Dust Meters

You're viewing one product from this category. Browse the full range.

51 products
View all

Related categories

All categories →
Thermometers & Hygrometers Sound meters23 products Anemometers28 products Photometers13 products
Dust Meters

From our Wiki

Dust Meters

Dust meters (or particle counters) are air quality monitoring instruments that detect the concentration of suspended particles (Particulate Matter - PM). Their operation is usually based on laser scattering (laser scattering) technology, where a beam of light strikes the particles and the sensor calculates their size and quantity.

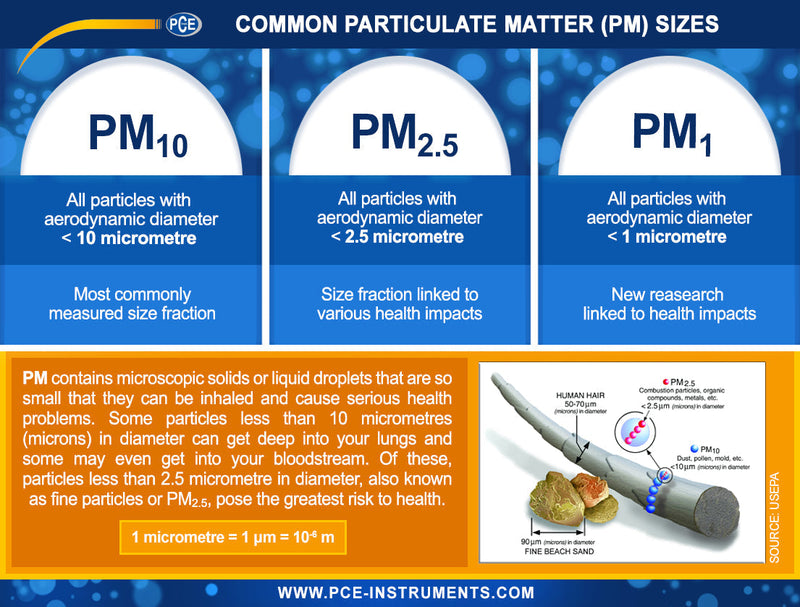

  • Particle Categories:PM2.5: Fine particles (up to 2.5 μm) that penetrate deep into the lungs and the bloodstream.PM10: Particles (up to 10 μm) such as dust, pollen, and mold.
  • Applications:Industry: Dust control in carpentry workshops, cement plants, and mines to protect workers.Cleanrooms (Cleanrooms): Certification of pharmaceutical or electronics production areas.Environment: Monitoring of air pollution and "smog" in cities.
  • Features: They include a data recording function (data logging), audible limit-exceedance alerts, and often also measure temperature and humidity in parallel.
Read the guide
