Gas Detectors - Dust Meters

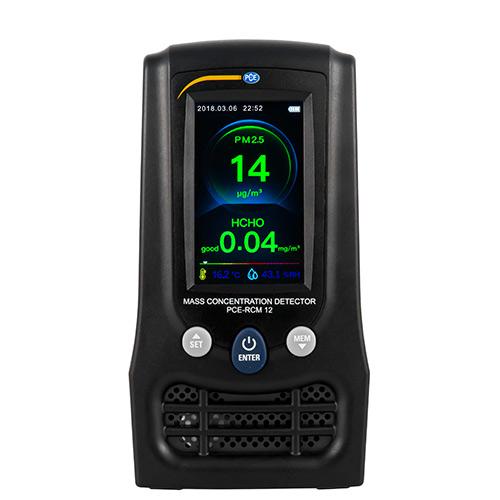

PCE Instruments PCE-RCM 12 air quality meter with colour PM2.5/PM10, HCHO display and SET/ENTER/MEM buttons

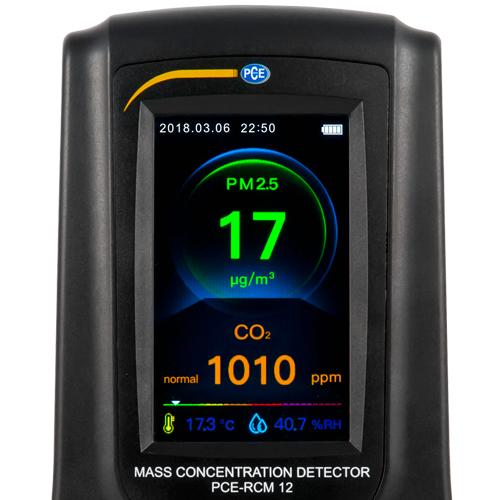

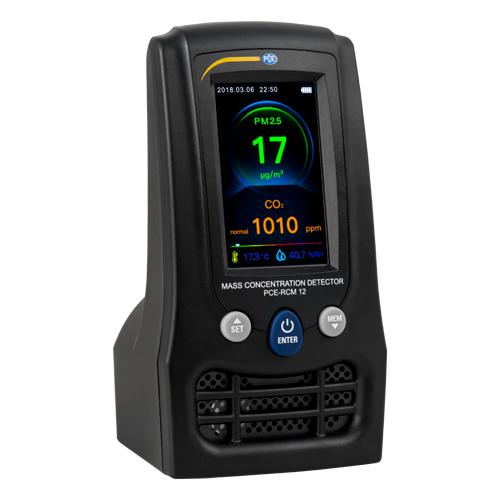

PCE Instruments PCE-RCM 12 air quality meter, black with colour PM2.5/CO2 display and SET/ENTER/MEM buttons

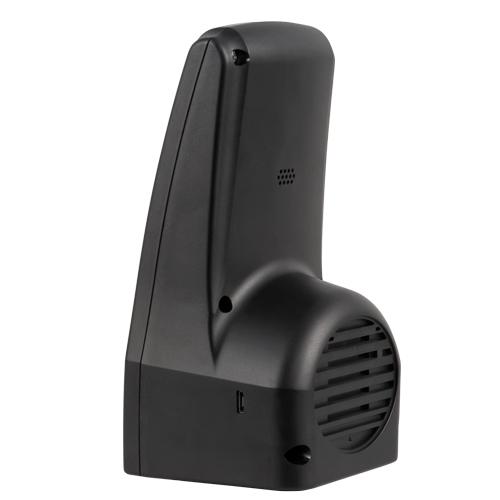

PCE Instruments PCE-RCM 12 air quality meter, black, side view with sensor vent and USB port

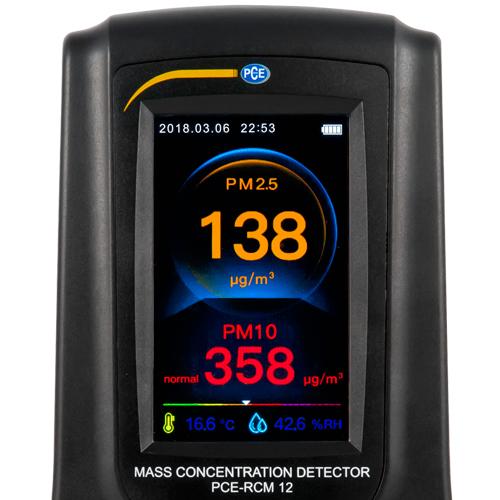

PCE Instruments PCE-RCM 12 air quality meter with colour display for PM2.5/PM10, temperature and humidity

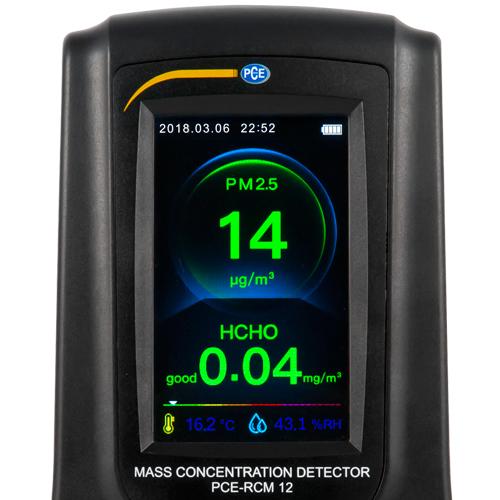

PCE Instruments PCE-RCM 12 air quality meter with colour display for PM2.5 and HCHO, black body
PCE Instruments PCE-RCM 12 air quality meter with colour display showing PM2.5 and CO2, black body

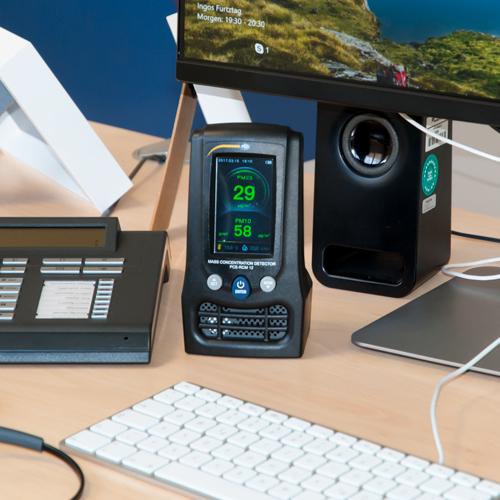

PCE Instruments PCE-RCM 12 air quality meter on a desk, with colour display showing PM2.5/PM10

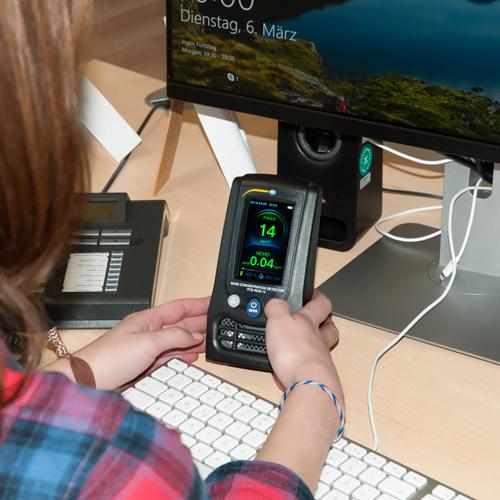

PCE Instruments PCE-RCM 12 air quality meter with colour display in use on a desk in front of a computer

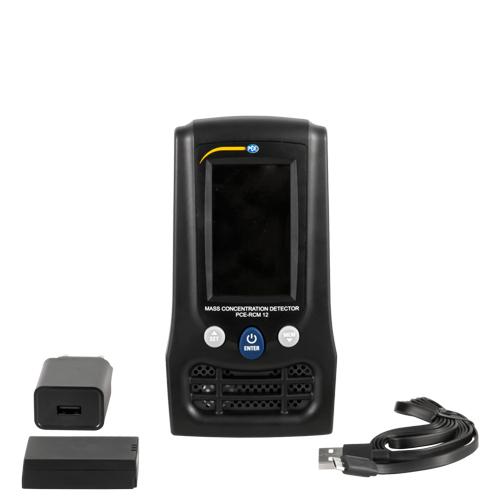

PCE Instruments PCE-RCM 12 air quality meter with display, buttons, adapter and USB cable
PCE Instruments PCE-RCM 12 air quality meter with colour PM2.5/PM10, HCHO display and SET/ENTER/MEM buttons
PCE Instruments PCE-RCM 12 air quality meter, black with colour PM2.5/CO2 display and SET/ENTER/MEM buttons
PCE Instruments PCE-RCM 12 air quality meter, black, side view with sensor vent and USB port
PCE Instruments PCE-RCM 12 air quality meter with colour display for PM2.5/PM10, temperature and humidity
PCE Instruments PCE-RCM 12 air quality meter with colour display for PM2.5 and HCHO, black body
PCE Instruments PCE-RCM 12 air quality meter with colour display showing PM2.5 and CO2, black body
PCE Instruments PCE-RCM 12 air quality meter on a desk, with colour display showing PM2.5/PM10
PCE Instruments PCE-RCM 12 air quality meter with colour display in use on a desk in front of a computer
PCE Instruments PCE-RCM 12 air quality meter with display, buttons, adapter and USB cable

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-RCM 12
€557,00
€690,68
0
  • CO2, HCHO, PM2.5 and PM10
  • CO2 range 0 ... 9999 ppm
  • Memory for 5000 data records
  • Up to 5 h battery operation
  • 3" TFT colour display

The PCE-RCM 12 is a particle counter and air quality monitor for indicative measurement of CO2, formaldehyde (HCHO), particulate matter (PM2.5 / PM10), temperature and relative humidity. Readings are shown on a 3" TFT LCD display, with a colour rating scale that gives a direct indication of air quality. PM10 covers particles up to 10 μm in diameter, PM2.5 particles up to 2.5 μm.

The CO2 range is wide, from 0 to 9,999 ppm. The meter runs for up to five hours on its rechargeable battery or permanently from the mains via the USB interface. With the unit switched off, the battery recharges within two hours.

Highlights

  • CO2 and formaldehyde measurement
  • Particulate matter measurement (PM2.5 / PM10)
  • Room temperature and relative humidity
  • Large CO2 range up to 9999 ppm
  • Colour scale rates air quality directly
  • Memory for up to 5000 measuring groups
  • Cycling display of the measured values
  • Date and time display, 3" TFT LCD
CO²
Measuring range0 ... 9999 ppm
Resolution1 ppm
Accuracy±5 % of Rd or ±75 ppm
Formaldehyde
Measuring range0 ... 5 mg/m³
Resolution0,01 mg/m³
Accuracy±5 % of range
Particle
Measuring channel sizesPM2,5, PM10
Measuring range2,5 ... 10 µm
Resolution1 µm
Accuracy10 %
Measuring range0 ... 2000 µg/m³
Resolution1 µg/m³
Measuring channel sizesPM2,5, PM10
Relative humidity
Measuring range0 ... 20 % RH
Resolution0,1 % RH
Accuracy±5 % RH
Measuring range20 ... 80 % RH
Resolution0,1 % RH
Accuracy±3.5 % RH
Temperature
Measuring range-20 ... +70 °C
Resolution0,1 °C
Accuracy±2 °C
General technical data
Display typeTFT colour display
Display size3 Inch
Display resolution240 x 400 pixels
Storage mediumInternal memory
Storage capacity5000 Data records
InterfaceMicro-USB
Operating time5 h
Automatic power-off from...to10 ... 120 min.
Menu languageEnglish, Chinese
Power supplyRechargeable battery: 3.7 V
USB: 5V
Connector typeDevice-europlug
Capacity2400 mAh
Operating conditions0 ... 50 °C , 10 ... 90 % RH
Storage conditions-10 ... 60 °C , 10 ... 90 % RH
Dimensions ( L x W x H )155 x 85 x 75 mm
Weight360 g
  • 1×Particle Counter PCE-RCM 12
  • 1×USB cable
  • 1×Battery pack
  • 1×Charging adapter
  • 1×User manual
Datasheet Technical datasheet Manual User manual
PCE Instruments

Official distributor

PCE Instruments

Η PCE Deutschland GmbH , γνωστή ως PCE Instruments , είναι μια γερμανική εταιρεία με έδρα το Meschede, που από το 1999 έως σήμερα έχει καθιερωθεί διεθνώς ως αξιόπιστος κατασκευαστής και προμηθευτής οργάνων μέτρησης, ελέγχου και ζύγισης. Η εταιρεία διαθέτει μια εξαιρετικά πλούσια γκάμα οργάνων – από μετρητές δόνησης, υγρασίας, θορύβου και θερμοκρασίας έως ζυγούς ακριβείας, αναλυτές, αισθητήρες και καταγραφικά δεδομένων – κ αλύπτοντας κάθε ανάγκη στον χώρο της βιομηχανίας, των εργαστηρίων και της έρευνας.

This product belongs to the collection

Gas Detectors - Dust Meters

You're viewing one product from this category. Browse the full range.

51 products
View all

Related categories

All categories →
Thermometers & Hygrometers Sound meters23 products Anemometers28 products Photometers13 products
Dust Meters

From our Wiki

Dust Meters

Dust meters (or particle counters) are air quality monitoring instruments that detect the concentration of suspended particles (Particulate Matter - PM). Their operation is usually based on laser scattering (laser scattering) technology, where a beam of light strikes the particles and the sensor calculates their size and quantity.

  • Particle Categories:PM2.5: Fine particles (up to 2.5 μm) that penetrate deep into the lungs and the bloodstream.PM10: Particles (up to 10 μm) such as dust, pollen, and mold.
  • Applications:Industry: Dust control in carpentry workshops, cement plants, and mines to protect workers.Cleanrooms (Cleanrooms): Certification of pharmaceutical or electronics production areas.Environment: Monitoring of air pollution and "smog" in cities.
  • Features: They include a data recording function (data logging), audible limit-exceedance alerts, and often also measure temperature and humidity in parallel.
Read the guide
