DC Electrostatic Field Meter, kV
- ±60 kV DC measuring range
- Two-laser alignment
- Temperature and humidity measurement
- Up to 20 h operation
- Battery status display
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Cart |
|---|---|---|---|---|
| PCE-SFS 10 |
€1.265,00
|
€1.568,60
|
- ±60 kV DC measuring range
- Two-laser alignment
- Temperature and humidity measurement
- Up to 20 h operation
- Battery status display

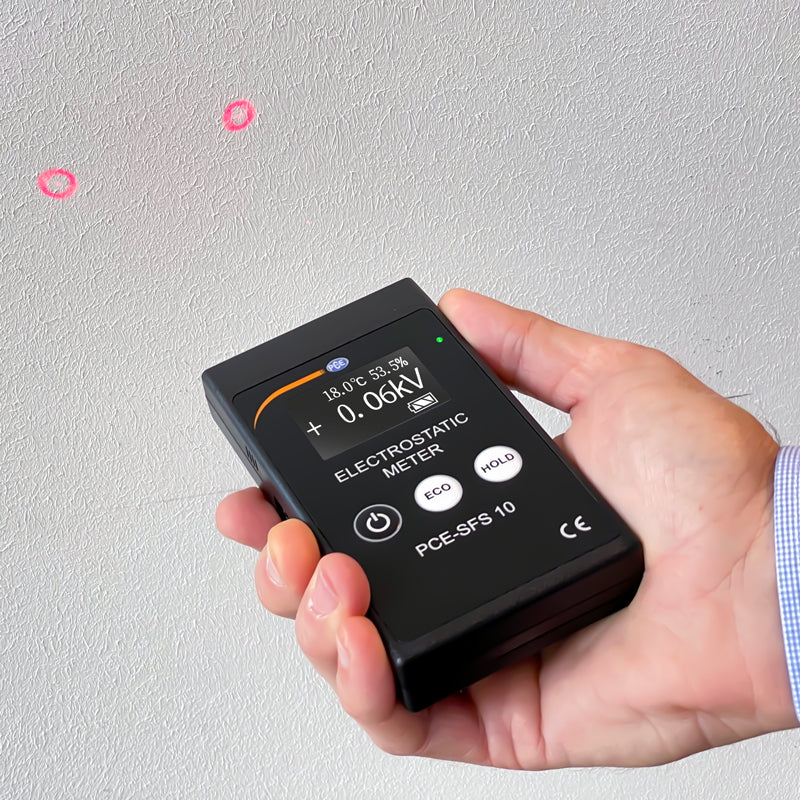

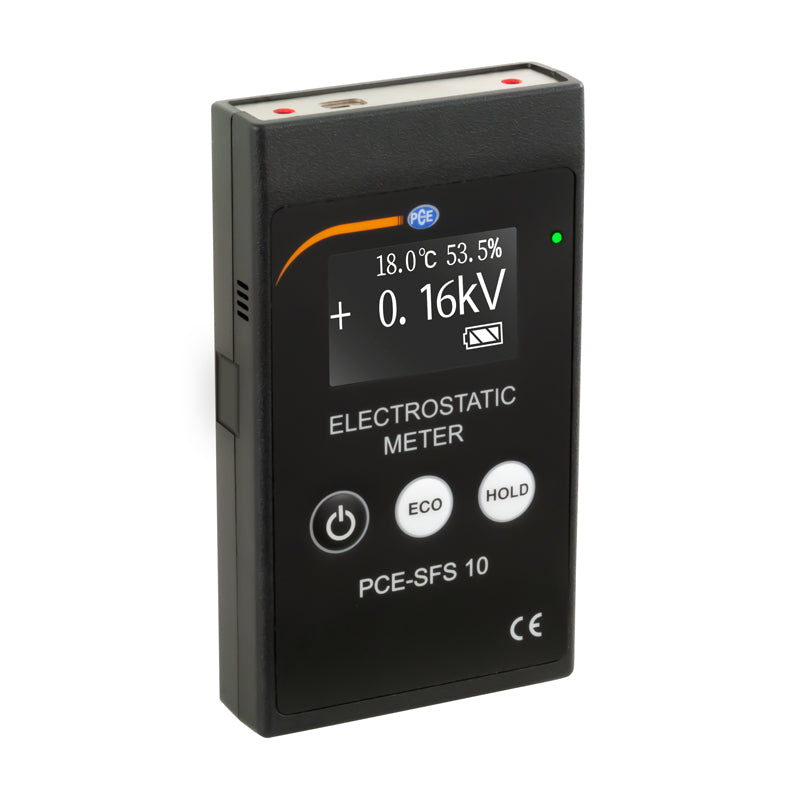

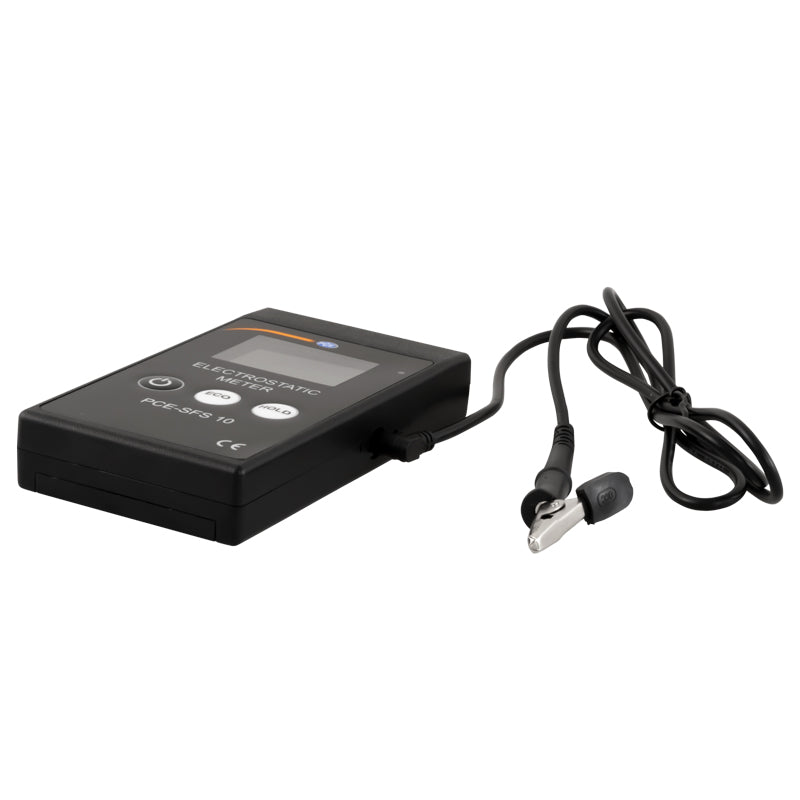

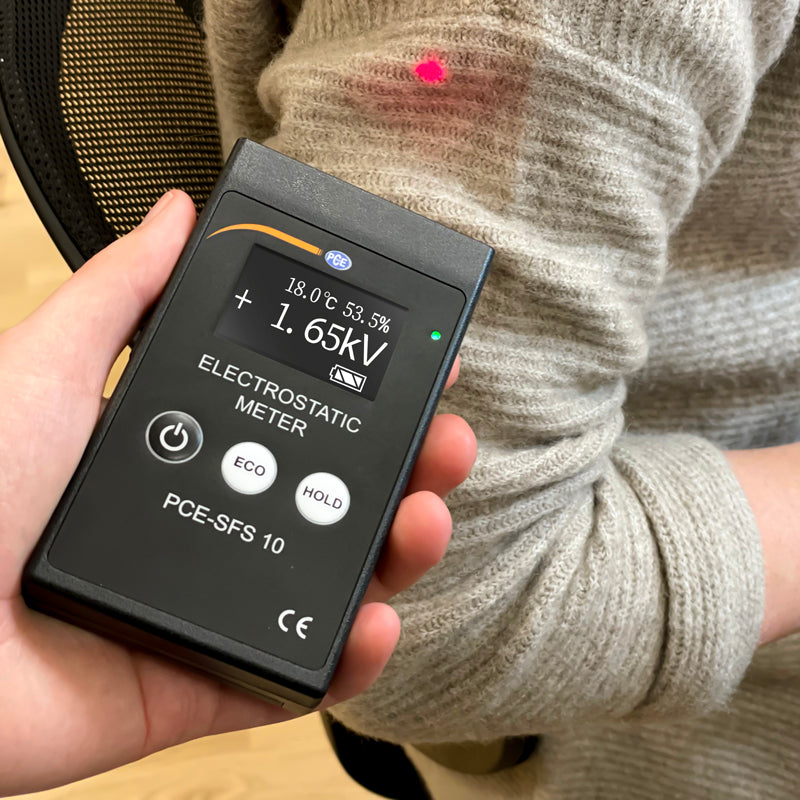

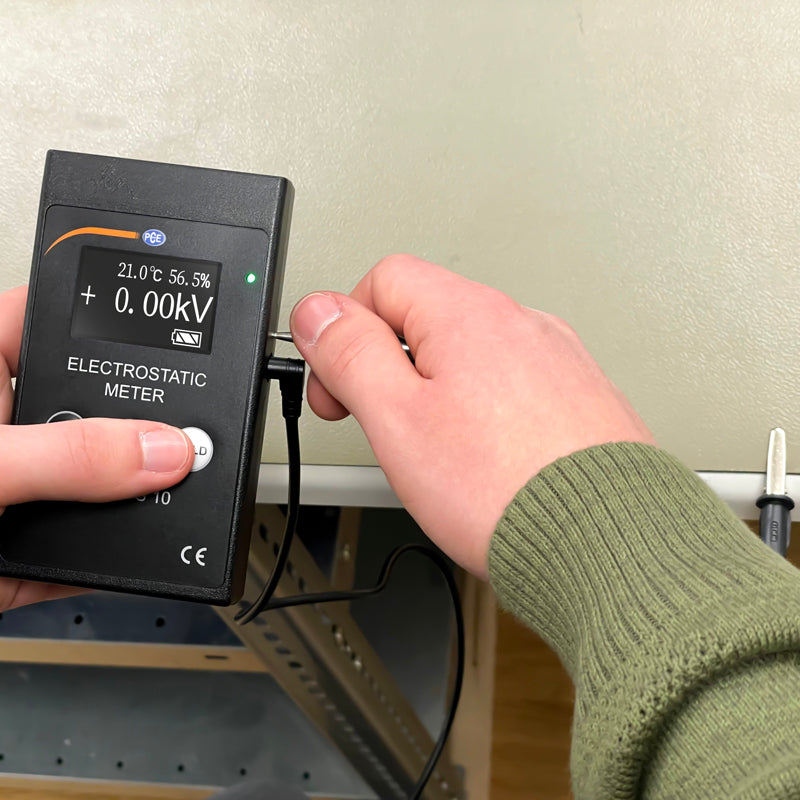

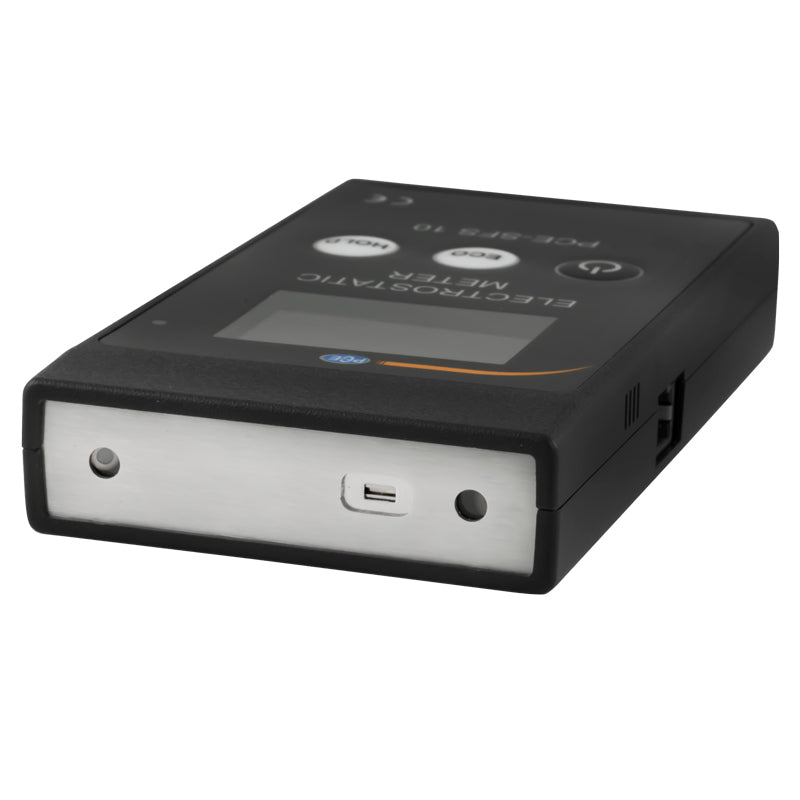

The PCE-SFS 10 is a handheld electrostatic field meter with a measuring range of ±60 kV DC. It shows whether surfaces, components or the human body are electrostatically charged, so it is used for checks in ESD-protected production areas. Two lasers align the sensor with the object being measured. The supplied earthing cable with alligator clip grounds the meter, so it neither falsifies its own reading nor discharges into components.
Besides field strength, the meter measures ambient temperature and humidity. It runs on a 9 V block battery for up to 20 hours and shows the remaining charge on the battery status indicator.
Highlights
- Measuring range ±60 kV DC
- Up to 20 hours battery life
- Acoustic alarm when the range is exceeded
- Ambient temperature and humidity display
- Two lasers for aligning the meter
- Earthing cable with alligator clip supplied
- Backlit LCD, easy to read
- Battery powered for mobile use
| Radiation | |
|---|---|
| Measuring range | -20 ... +20 kV DC |
| Resolution | 0,01 kV DC |
| Accuracy | ±5 % of Rd |
| Measuring range | -60 ... -20 kV DC |
| Resolution | 0,1 kV DC |
| Accuracy | ±5 % of Rd |
| Measuring range | 20 ... 60 kV DC |
| Resolution | 0,1 kV DC |
| Accuracy | ±5 % of Rd |
| Relative humidity | |
| Measuring range | 0 ... 100 % |
| Resolution | 0,1 % |
| Accuracy | ±4.5 % |
| Temperature | |
| Measuring range | -40 ... +123,8 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1.5 °C |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LCD with backlight |
| Sensor | Laser |
| Response time | 100 mS |
| Operating time | 20 h |
| Automatic power-off | 5 min |
| Alarm | Acoustic |
| Alarm modes | when switching on the meter, 5 seconds before automatic power-off, when the measurement range is exceeded |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | Battery |

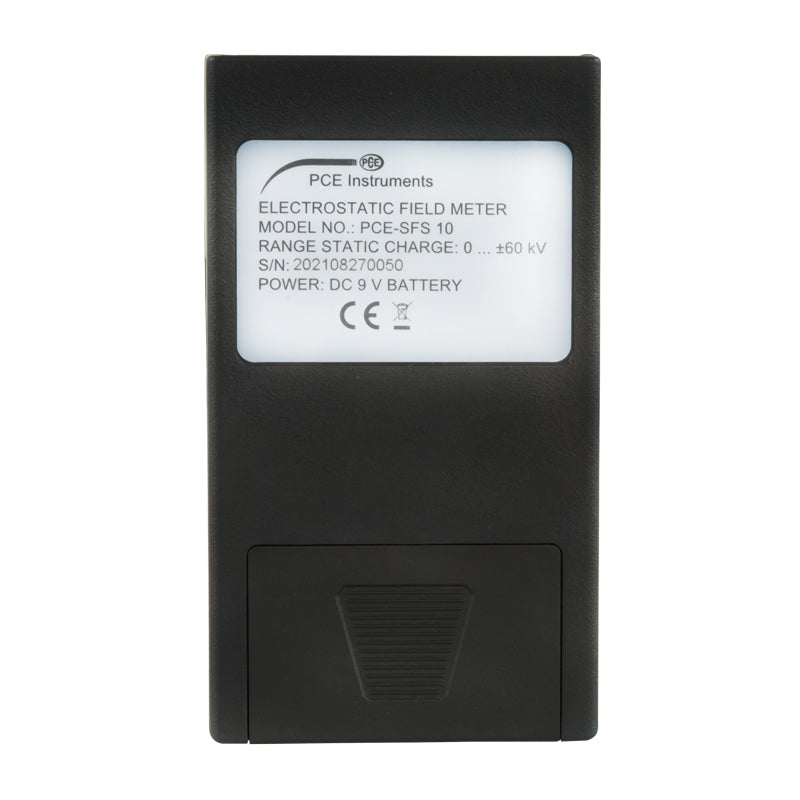

| (Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
| Capacity | 640 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 60 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 60 % RH |
| Dimensions ( L x W x H ) | 123 x 70,4 x 21,5 mm |
| Weight | 147 g |
- 1×Gauss Meter / Tesla Meter PCE-SFS 10
- 1×Earthing cable
- 1×Carrying bag
- 1×9 V block battery
- 1×Instruction manual
